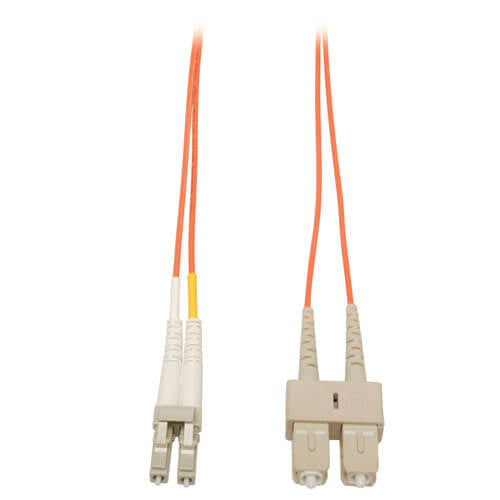

N516-20M - Tripp Lite 20M DUPLEX MULTIMODE 50/125 FIBER OPTIC PATCH CABLE LC/SC 65FT 20 METER

Constructed with 50/125 micron cable Length - 20M Use on fiber and fibre channel installations LC male to SC male connectors Higher bandwidth optimized for gigabit and 10Gbps networks Backward compatible with 62.5 micron fiber Built-in headroom for future applications Number of fibers: 2 Fiber type: all glass graded index Core diameter: Two 50+/-3 microns CLAD diameter: 125+/-2 microns Primary coating diameter: 245+/-15 microns Primary coating material: acrylate Secondary coating diameter: 900+/-50 microns Secondary coating material: PVC Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum Proof test level: 100,000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze



Specification:



Technical details
Jacket material	Polyvinyl chloride (PVC)
Fiber mode structure	Multi-mode
Connector 1	2x LC
Connector 2	2x SC
Cable type	OFNR
Cable length	1181.1" (30 m)
Core diameter	50 µm
Cladding diameter	125 µm
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332119541
Features
Jacket material	Polyvinyl chloride (PVC)
Fiber mode structure	Multi-mode
Connector 1	2x LC
Connector 2	2x SC
Cable type	OFNR
Cable length	1181.1" (30 m)
Core diameter	50 µm
Cladding diameter	125 µm
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Product colour	Orange
Connector 2 gender	Male
Connector 1 gender	Male
Weight & dimensions
Cable length	1181.1" (30 m)
Package width	8" (203.2 mm)
Package depth	1" (25.4 mm)
Package height	10" (254 mm)
Package weight	4.59 oz (130 g)
Packaging data
Package width	8" (203.2 mm)
Package depth	1" (25.4 mm)
Package height	10" (254 mm)
Package weight	4.59 oz (130 g)
Logistics data
Master (outer) case width	8" (203.2 mm)
Master (outer) case length	10" (254 mm)
Master (outer) case height	7" (177.8 mm)
Master (outer) case gross weight	2.87 lbs (1.3 kg)
Products per master (outer) case	10 pc(s)
