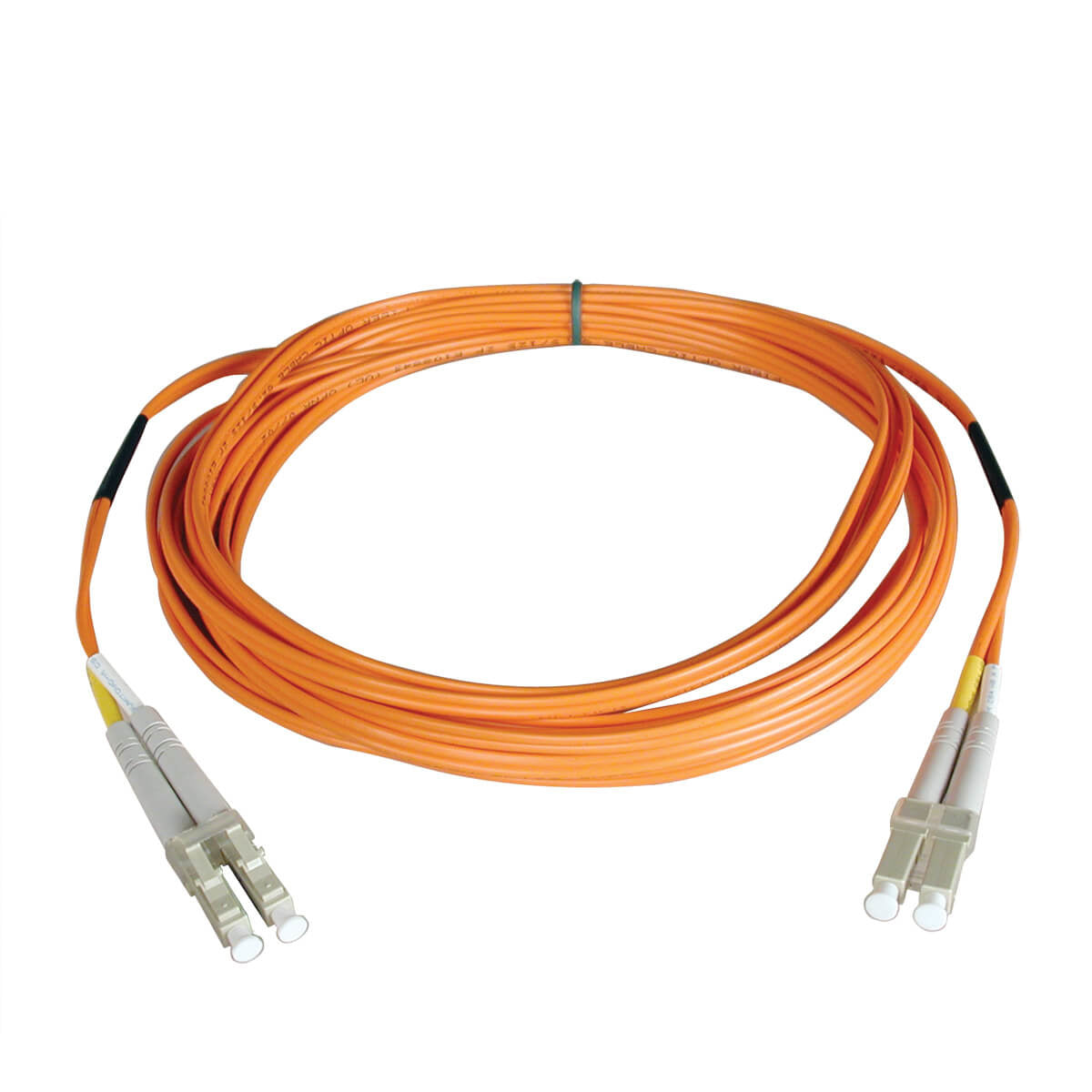

N520-08M - Tripp Lite 8M DUPLEX MULTIMODE 50/125 FIBER OPTIC PATCH CABLE LC/LC 2 26FT 8 METER

Constructed with 50/125 micron cable Length - 8 Meters ( 25-26ft ) Use on fiber and fibre channel installations LC male to LC male connectors Higher bandwidth optimized for gigabit and 10Gbps networks Backward compatible with 62.5 micron fiber Built-in headroom for future applications Number of fibers: 2 Fiber type: all glass graded index Core diameter: two 50+/-3 microns CLAD diameter: 125+/-2 microns Primary coating diameter: 245+/-15 microns Primary coating material: acrylate Secondary coating diameter: 900+/-50 microns Secondary coating material: PVC Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum Numeric aperture: .275 nominal Proof test level: 100,000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze



Specification:



Technical details
Connector 1	LC
Connector 2	LC
Cable length	3937" (100 m)
Master (outer) case GTIN (EAN/UPC)	10037332125207
Features
Connector 1	LC
Connector 2	LC
Cable length	3937" (100 m)
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Product colour	Orange
Connector 2 gender	Male
Connector 1 gender	Male
Weight & dimensions
Cable length	3937" (100 m)
Package width	12" (304.8 mm)
Package depth	8" (203.2 mm)
Package height	12" (304.8 mm)
Package weight	3.51 lbs (1.59 kg)
Packaging data
Package width	12" (304.8 mm)
Package depth	8" (203.2 mm)
Package height	12" (304.8 mm)
Package weight	3.51 lbs (1.59 kg)
Logistics data
Master (outer) case width	15" (381 mm)
Master (outer) case length	15" (381 mm)
Master (outer) case height	5" (127 mm)
Products per master (outer) case	1 pc(s)
Other features
Core / cladding diameter	50/125 µm
