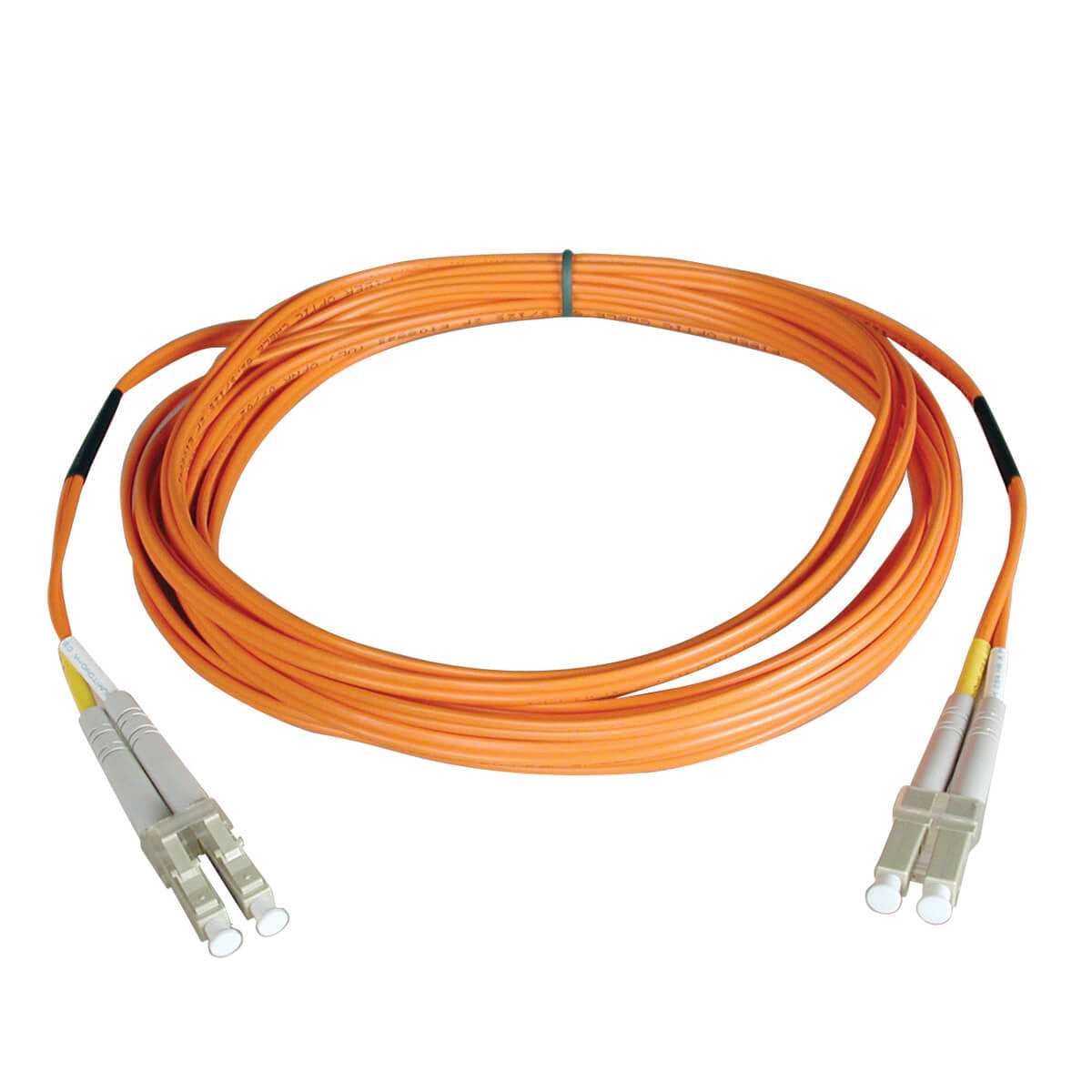

N520-12M - Tripp Lite 12M DUPLEX MULTIMODE 50/125 FIBER OPTIC PATCH CABLE LC/LC 40FT 12 METER

Tripp Lite's 12-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 15, 20, 25, 30, and 50 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-", and for SC-SC, search "N506-". Constructed with 50/125 micron cable Length - 12M ( 40ft ) Use on fiber and fibre channel installations LC male to LC male connectors Higher bandwidth optimized for gigabit and 10Gbps networks Backward compatible with 62.5 micron fiber Built-in headroom for future applications Number of fibers: 2 Fiber type: all glass graded index Core diameter: Two 50+/-3 microns CLAD diameter: 125+/-2 microns Primary coating diameter: 245+/-15 microns Primary coating material: acrylate Secondary coating diameter: 900+/-50 microns Secondary coating material: PVC Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum Numeric aperture: .275 nominal Proof test level: 100,000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze



Specification:



Technical details
Connector 1	LC
Connector 2	LC
Cable length	5984.3" (152 m)
Master (outer) case GTIN (EAN/UPC)	10037332126341
Features
Connector 1	LC
Connector 2	LC
Cable length	5984.3" (152 m)
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Product colour	Orange
Connector 2 gender	Male
Connector 1 gender	Male
Weight & dimensions
Cable length	5984.3" (152 m)
Package width	10.2" (259.1 mm)
Package depth	10.3" (261.6 mm)
Package height	4.6" (116.8 mm)
Package weight	3.31 lbs (1.5 kg)
Packaging data
Package width	10.2" (259.1 mm)
Package depth	10.3" (261.6 mm)
Package height	4.6" (116.8 mm)
Package weight	3.31 lbs (1.5 kg)
Logistics data
Master (outer) case width	14.9" (378.5 mm)
Master (outer) case length	15" (381 mm)
Master (outer) case height	11.1" (281.9 mm)
Master (outer) case gross weight	14.8 lbs (6.71 kg)
Products per master (outer) case	1 pc(s)
Other features
Core / cladding diameter	50/125 µm
