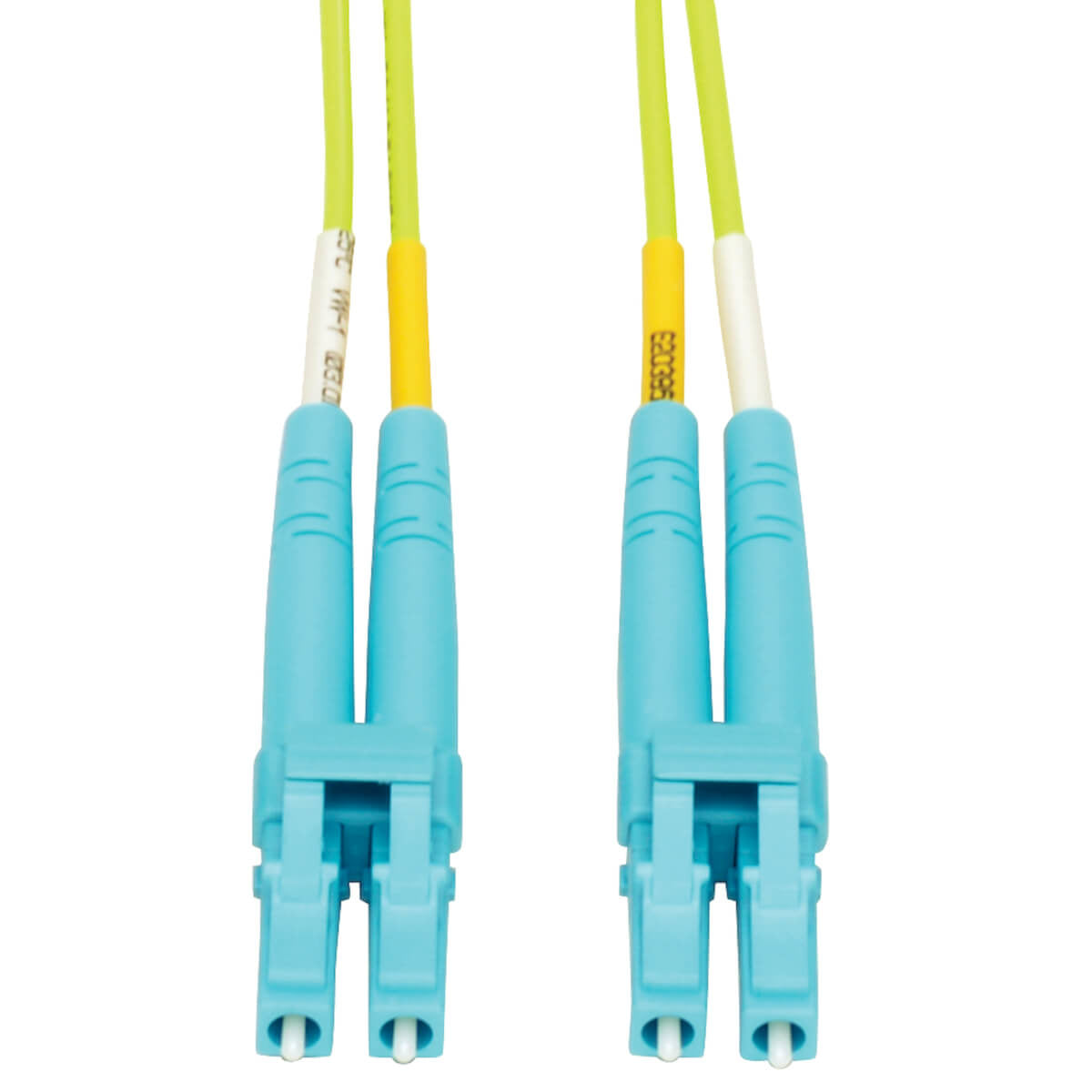

N820-03M-OM5 - Tripp Lite DUPLEX MULTIMODE FIBER PATCH CABLE OM5 LC LC 50/125 100GB 3M

Support Higher Bandwidths in Data Networks with OM5 Multimode 50/125 Fiber Patch Cable As the amount of traffic in data networks grows, so does the need for next generation devices and fiber cables to support higher bandwidths. Tripp Lite’s OM5 Duplex Multimode 50/125 Fiber Patch Cable is a wideband multimode fiber (WBMMF) solution that supports at least four wavelengths in the 850-950 nm range. This LC to LC multimode fiber optic patch cable is well-suited for 40/100 Gb Ethernet applications up to 300 meters (at 850 nm). Its short three-meter length reduces cable clutter. Use with VCSEL Light Sources for a Cost-Effective, High-Bandwidth Solution The N820-03M-OM5 is a laser-optimized multimode fiber (LOMMF) cable designed for use with vertical-cavity surface-emitting lasers (VCSELs) to offer a cost-effective, high-bandwidth solution over extended distances in the 850-950 nm wavelength range. It is commonly used in LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers. Experience Reliable Performance with Premium Construction Premium materials ensure this multimode fiber cable reliably carries data and voice signals. The cable has duplex male LC connectors on each end and features a low-smoke zero-halogen (LSZH) jacket that limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The lime green color of the jacket identifies the cable as OM5 rated. It meets current IEEE 802.3ae and TIA LOMMF standards. Employ OM5 Cable for Backward Compatibility and Future Proofing Rated OM5, the N820-03M-OM5 cable is backward compatible with existing OM3- and OM4-rated 50/125 fiber solutions. This LC to LC multimode fiber optic cable can also be used with shortwave wavelength division multiplexing (SWDM) technology to provide transmission over longer distances in the 850-950 nm wavelength range than OM3- and OM4-rated cables. Plus, the OM5 cables will be compatible with SWDM solutions in future networks with even higher bandwidths. Lifetime Warranty The N820-03M-OM5 is backed by a lifetime limited warranty, ensuring reliability and performance.



Specification:



Technical details
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	LC
Cable length	118.1" (3 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Master (outer) case GTIN (EAN/UPC)	10037332184495
Features
Fibre optic type	OM3
Jacket material	Low smoke zero halogen (LSZH)
Fiber mode structure	Multi-mode
Connector 1	LC
Connector 2	LC
Cable length	118.1" (3 m)
Full duplex	Yes
Core diameter	50 µm
Cladding diameter	125 µm
Data transfer rate	10000 Gbit/s
Country of origin	China
Harmonized System (HS) code	8544.70.0000
Product colour	Blue
Connector 2 gender	Male
Connector 1 gender	Male
Data transmission
Data transfer rate	10000 Gbit/s
Weight & dimensions
Cable length	118.1" (3 m)
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	0.705 oz (20 g)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	0.705 oz (20 g)
Logistics data
Master (outer) case width	5.9" (149.9 mm)
Master (outer) case length	4" (101.6 mm)
Master (outer) case height	7.3" (185.4 mm)
Master (outer) case gross weight	10.6 oz (300 g)
Products per master (outer) case	10 pc(s)
