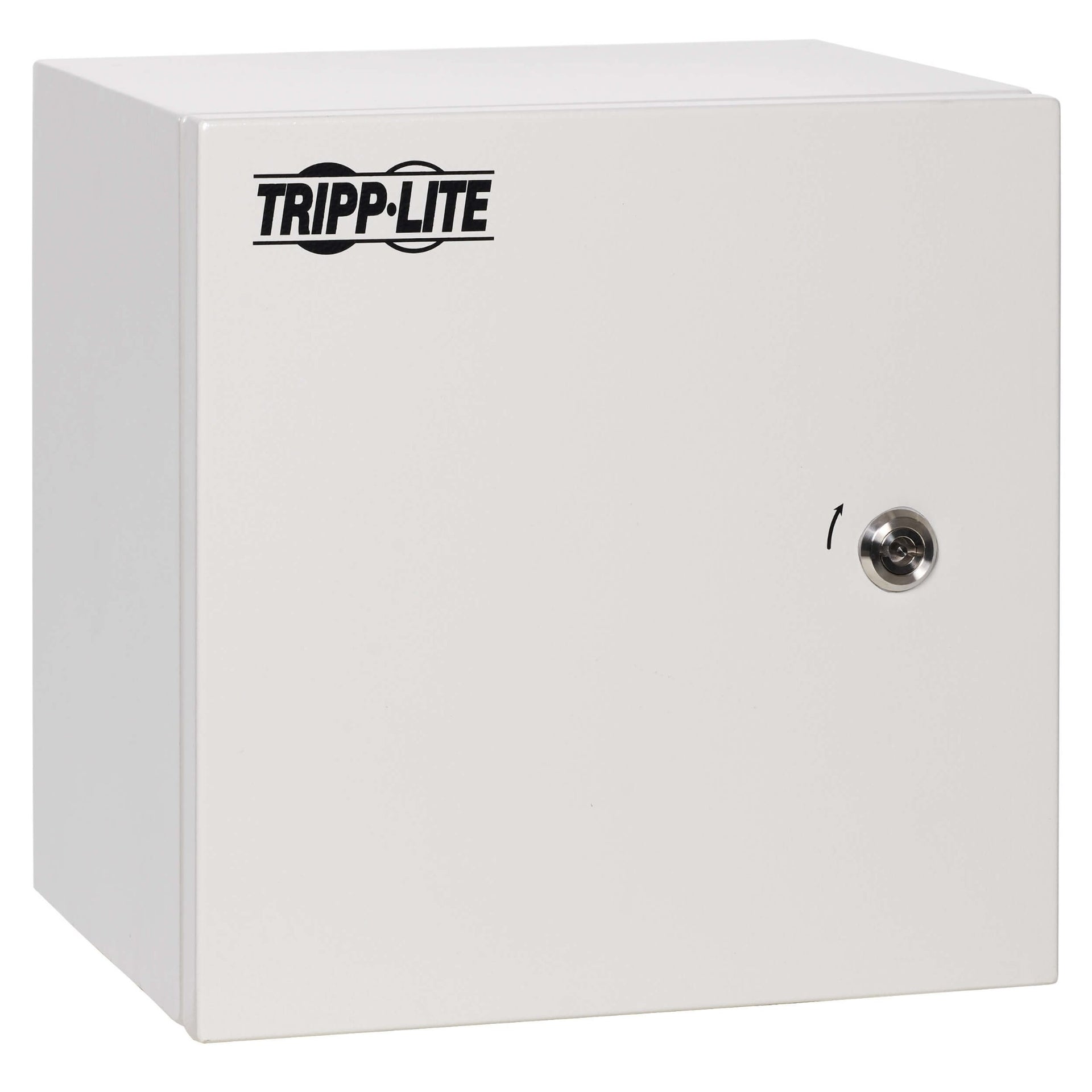

SRIN412126 - Tripp Lite OUTDOOR INDUSTRIAL ENCLOSURE WITH LOCK NEMA 4 METAL 12X12X6IN

Surface-Mount Enclosure Secures and Organizes Your Valuable Equipment This SmartRack® industrial enclosure is designed to protect expensive outdoor equipment, including industrial controls and computers, HMI, enterprise systems, remote networking equipment, distributed controls, production monitoring systems, wireless access points, building automation and HVAC, security, audio-video, and telecommunications applications. Included steel and plastic rear panels accommodate most equipment. NEMA 4 Enclosure Designed for Protection Against Harsh Elements The SRIN412126 protects its contents against the ingress of water (including rain, sleet, snow, splashing water and hose-directed water), solid foreign objects (including falling dirt and windblown dust) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, processing plants, fabrication areas, outdoors, offices, dorms, hotels, classrooms, retail locations and other areas where you need to keep sensitive equipment secure, organized and out of the way. Locks Securely to Help Prevent Theft, Damage and Tampering The rugged heavy-duty 14-gauge steel housing locks securely with the included key to protect its contents against theft, tampering, dust and other contaminants. The weather-sealed door swings away on a sturdy hinge, allowing easy access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout. Easy to Install on Any Level Surface This steel enclosure comes fully assembled and ready for mounting on a wall or ceiling using both the included and user-supplied hardware. It measures 12 inches high, 12 inches wide and 6 inches deep.



Specification:



Features
Suitable for	Outdoor
Installation options	Wall-mounted
Material	Steel
NEMA rating	4
Weight & dimensions
Width	14" (355.6 mm)
Height	14" (355.6 mm)
Depth	10" (254 mm)
Weight	25.4 lbs (11.5 kg)
Package width	16.3" (415 mm)
Package weight	32 lbs (14.5 kg)
Package height	12.4" (315 mm)
Package depth	16.3" (415 mm)
Technical details
Products per master (outer) case	1 pc(s)
Package width	16.3" (415 mm)
Package weight	32 lbs (14.5 kg)
Package height	12.4" (315 mm)
Package depth	16.3" (415 mm)
Sustainability compliance	Yes
Sustainability certificates	RoHS
Logistics data
Country of origin	China
Products per master (outer) case	1 pc(s)
