ICUSB2324 - StarTech.com ADD FOUR RS232 SERIAL PORTS TO ANY NOTEBOOK OR DESKTOP COMPUTER USING A SINGLE U

Add four RS232 serial ports to any notebook or desktop computer using a single USB port

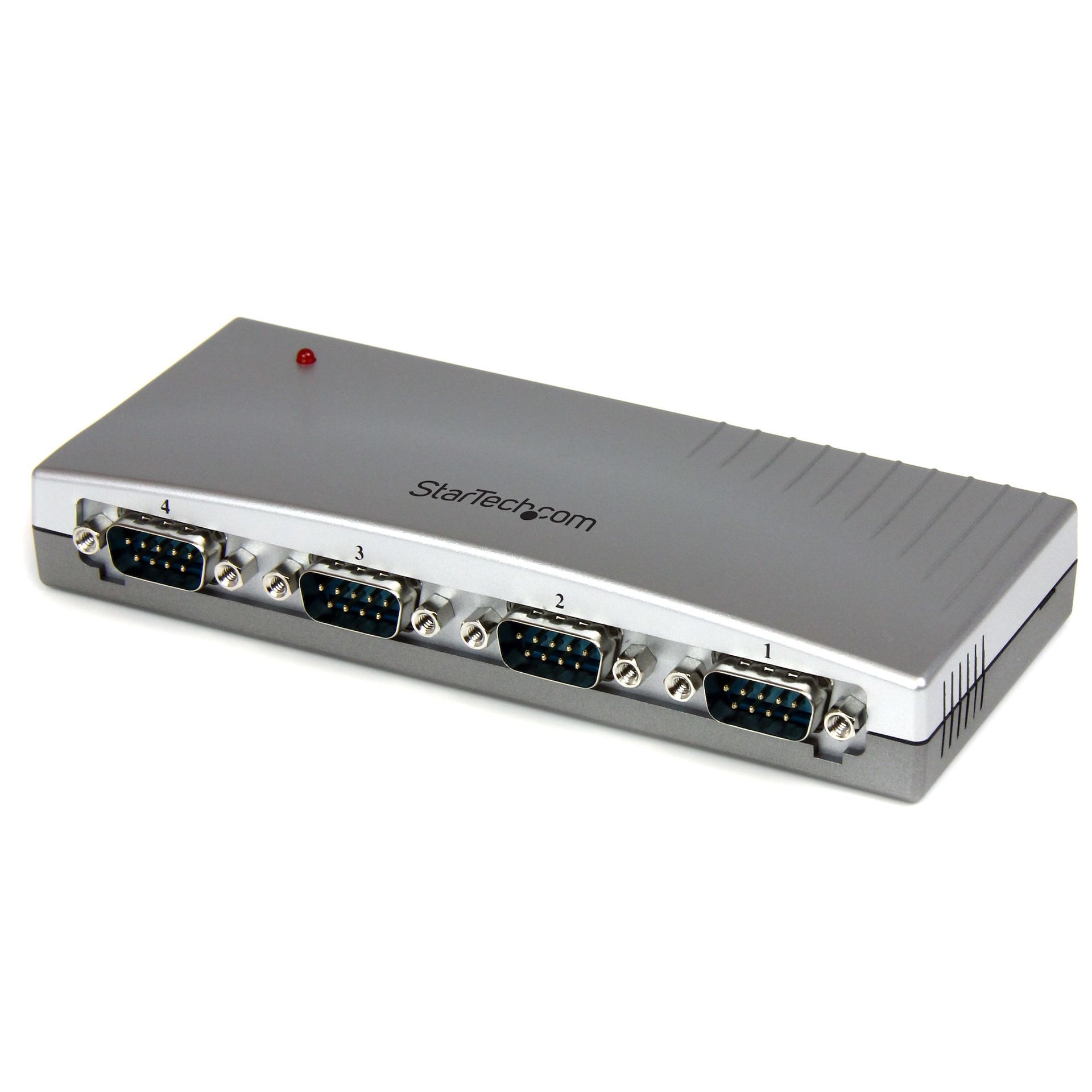

This 4 Port USB to RS232 Serial Hub lets you connect up to four RS232 serial devices to your Mac or PC laptop or desktop computer through a single USB port, as though the computer offered built-on DB9M serial connectors.

The RS232 Serial Hub is compactly designed to preserve valuable workspace, and is bus-powered to eliminate the need for an external power adapter.

A cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS232 serial peripherals, this dependable USB/RS232 Serial Adapter hub is backed by StarTech.com's Lifetime Warranty.

The StarTech.com Advantage

- Add four additional RS-232 serial ports to any computer with a free USB port
- Provides serial connectivity to legacy free systems lacking RS-232 serial ports
- Supports wakeup and power management modes



Specification:



Ports & interfaces
Internal	No
Output interface	Serial
Serial interface type	RS-232/422/485
Serial ports quantity	1
Host interface	USB Type-B
Technical details
Chipset	FTDI - FT2232H
FIFO (First In, First Out)	128 B
Quantity per pack	1 pc(s)
Sustainability compliance	Yes
Sustainability certificates	CE, RoHS
Performance
Stop bits	1, 2
Data bits	7, 8
Baud rate	921.6 Kbit/s
Chipset	FTDI - FT2232H
FIFO (First In, First Out)	128 B
Product colour	Gray
Harmonized System (HS) code	84733020
Colour
Product colour	Gray
Design
Internal	No
Product colour	Gray
LED indicators	Power
Features
Stop bits	1, 2
Data bits	7, 8
Baud rate	921.6 Kbit/s
Chipset	FTDI - FT2232H
FIFO (First In, First Out)	128 B
Parity bit	Even, Mark, N, Odd, Space
Flow Control type	N, XON/XOFF
Harmonized System (HS) code	84733020
Power
Output voltage	5 V
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-25 - 85 °C
Operating relative humidity (H-H)	5 - 95%
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Other operating systems supported	Windows XP Embedded
Weight & dimensions
Width	1.74" (44.2 mm)
Depth	3.24" (82.3 mm)
Height	0.906" (23 mm)
Weight	10.6 oz (300 g)
Package width	5.67" (144 mm)
Package depth	8.19" (208 mm)
Package height	1.57" (40 mm)
Package weight	10.9 oz (310 g)
Packaging data
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Package width	5.67" (144 mm)
Package depth	8.19" (208 mm)
Package height	1.57" (40 mm)
Package weight	10.9 oz (310 g)
Cables included	USB Type-A to USB Type-B
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	15.6" (395 mm)
Master (outer) case length	20.2" (514 mm)
Master (outer) case height	13" (329 mm)
Quantity per pack	1 pc(s)
Packaging content
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Cables included	USB Type-A to USB Type-B
Other features
Chipset	FTDI - FT2232H
