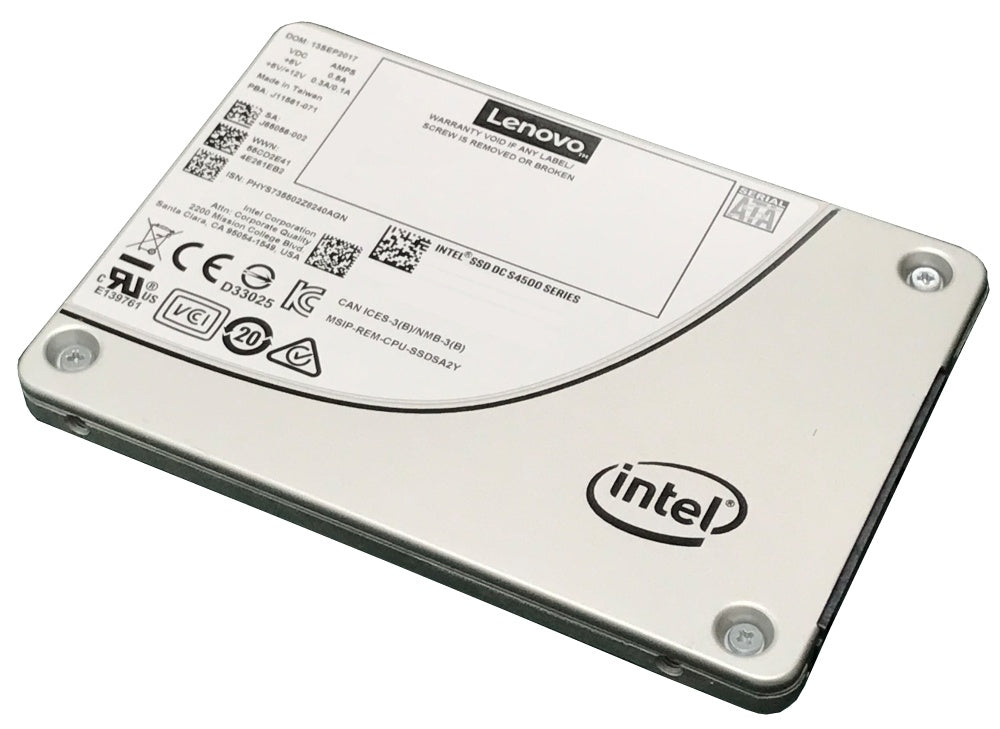

4XB0N68507 - Lenovo HDD_BO S4500 240GB SATA 3.5 HS SSD

The Intel S4500 Entry SATA solid-state drives (SSDs) for Lenovo servers use Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance. By combining the latest Intel 3D NAND TLC Flash Memory technology with Intel’s latest controller technology, the design of the S4500 Entry SATA SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for IOPS/watt and cost/IOPS.



Specification:



Hard drive
SSD capacity	480 GB
Data transmission
Write latency	36 µs
Read latency	36 µs
Data transfer rate	6 Gbit/s
Endurance
Mean time between failures (MTBF)	2000000 h
Performance
Interface	Serial ATA III
Component for	Server/workstation
Maximum write (4KB)	20000 IOPS
Maximum read (4KB)	72000 IOPS
NVMe	No
Hot-swap	Yes
SSD capacity	480 GB
Mean time between failures (MTBF)	2000000 h
Write latency	36 µs
Read latency	36 µs
Data transfer rate	6 Gbit/s
Design
Component for	Server/workstation
SSD form factor	3.5"
Features
Interface	Serial ATA III
Component for	Server/workstation
Maximum write (4KB)	20000 IOPS
Maximum read (4KB)	72000 IOPS
NVMe	No
Hot-swap	Yes
SSD capacity	480 GB
Mean time between failures (MTBF)	2000000 h
Write latency	36 µs
Read latency	36 µs
Data transfer rate	6 Gbit/s
SSD form factor	3.5"
Power
Power consumption (write)	3.6 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating altitude	120078.7" (3050 m)
Technical details
Interface	Serial ATA III
Hot-swap	Yes
Operating temperature (T-T)	0 - 70 °C
Operating relative humidity (H-H)	5 - 95%
Operating shock	1000 G
Operating vibration	2.17 G
Non-operating vibration	3.13 G
Maximum operating altitude	120078.7" (3050 m)
SSD form factor	3.5"
Sustainability certificates	RoHS
