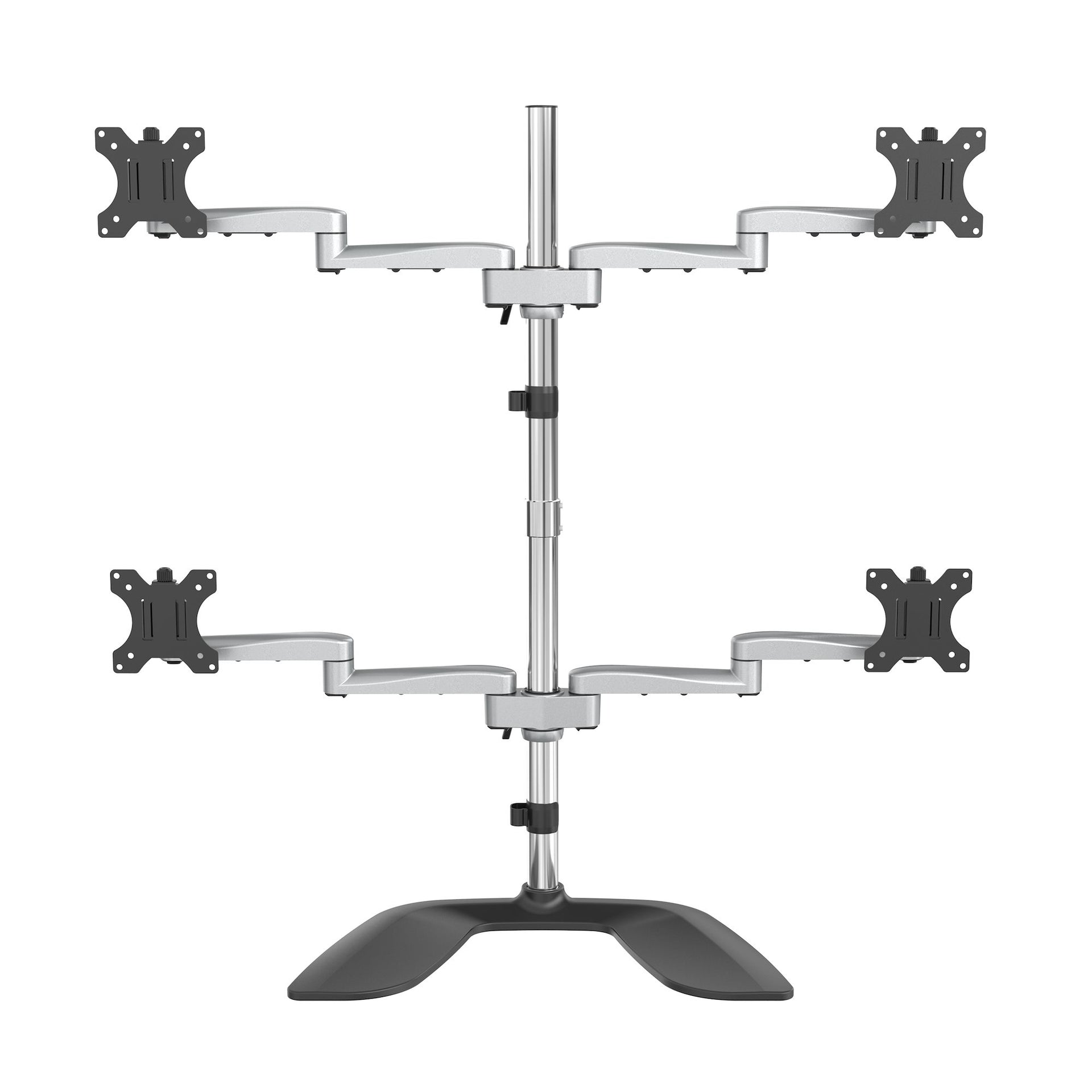

ARMQUADSS - StarTech.com VESA 75X75/100X100MM DESKTOP QUAD MONITOR STAND (2X2) SUPPORTS 4 DISPLAYS UP TO

Four Monitor Mount | Height Adjustable | For Up to 32" Monitors

Boost productivity and customize your workspace with this quad-monitor stand, suspending four monitors above your desk. Enjoy optimum viewing with four articulating monitor arms, providing a wide range of motion. The free-standing base gives you flexibility in placing your setup within your workspace.

Designed for Productivity

Constructed of aluminum and steel, the heavy-duty four-monitor stand lets you set up your workspace for optimum productivity. The monitor stand supports four VESA mount (75x75, 100x100) monitors up to 32" each, with a maximum weight capacity of up to 17.6 lb./8 kg per display.

Create a More Ergonomic Workspace

Create a multi-monitor workstation that works best for you. Take advantage of four-screen efficiency for financial analysis, web coding, video editing or many other applications. Customize your setup by adjusting your display height, position and viewing angles for an ergonomic workspace. The swiveling arms provide maximum viewing flexibility.

Height-Adjustable Monitor Mount

Place your monitors at the ideal height. Simply adjust the display height along the 35.6 in (904 mm) pole. Align your monitors with the micro-adjustment feature.

Enjoy Optimum Viewing

The four-screen monitor stand lets you extend the articulating arms up to 16.6" (42.2 cm) to position your monitors in the ideal position. Tilt your monitors +90/-40 degrees and swivel +/-90 degrees. Rotate your displays 360 degrees for portrait or landscape viewing.

Keep Cables Out of View

Neatly route your cables with the cable-management channels.

ARMQUADSS is backed by a StarTech.com 5-year warranty and free lifetime technical support. 

The StarTech.com Advantage

- QUAD (2X2) 32 INCH MONITOR STAND: VESA 75x75/100x100mm compatible heavy duty desktop multi monitor mount supports 4 displays up to 32" (17.6lb/8kg) per screen w/ articulation & height adjustment
- WIDE RANGE OF MOTION: Ergonomic articulating monitor stand with +90/-40° tilt, +/- 90° swivel, 360° rotation; Each row of displays has a height adjustable range of 15.7" along 35.6" pole (tools incl)
- STABLE & NON-SLIP: Aluminum free standing monitor mount w/ u-shaped base (11.8" (300mm) x 20.5" (520mm)) for max stability & flexible placement; Anti-slip rubber pads prevent scratches on desk surface



Specification:



Mounting
Desk thickness (min)	0.787" (2 cm)
Desk thickness (max)	3.94" (10 cm)
Minimum screen size	12"
Number of displays supported	1
Mounting type	Desk
Minimum VESA mount	2.95 x 2.95" (75 x 75 mm)
Maximum VESA mount	3.94 x 3.94" (100 x 100 mm)
Mounting	Clamp
Distance to the wall (max)	23.5" (59.6 cm)
Maximum weight capacity	15.4 lbs (7 kg)
Maximum screen size	34"
Ergonomics
Cable management	Yes
Height adjustment	Yes
Pivot angle	0 - 360°
Swivel angle	360°
Tilt angle range	-65 - 90°
Angle of rotation	90°
Pan range	0 - 360°
Technical details
Mounting type	Desk
Distance to the wall (max)	23.5" (59.6 cm)
Product colour	Black
Cable management	Yes
Sustainability certificates	RoHS
Design
Certification	TAA, REACH, CE
Product colour	Black
Housing material	Plastic, Steel
Certificates
Certification	TAA, REACH, CE
Weight & dimensions
Package width	13.7" (348 mm)
Package depth	18.1" (461 mm)
Package height	5.08" (129 mm)
Weight	7.05 lbs (3.2 kg)
Package weight	9.26 lbs (4.2 kg)
Packaging content
Screws included	Yes
Clamp included	Yes
Wrench included	Yes
Manual	Yes
Number of screws	4
Packaging data
Screws included	Yes
Clamp included	Yes
Wrench included	Yes
Package weight	9.26 lbs (4.2 kg)
Manual	Yes
Logistics data
Harmonized System (HS) code	85299097
Other features
Mounting type	Desk
Mounting	Clamp
