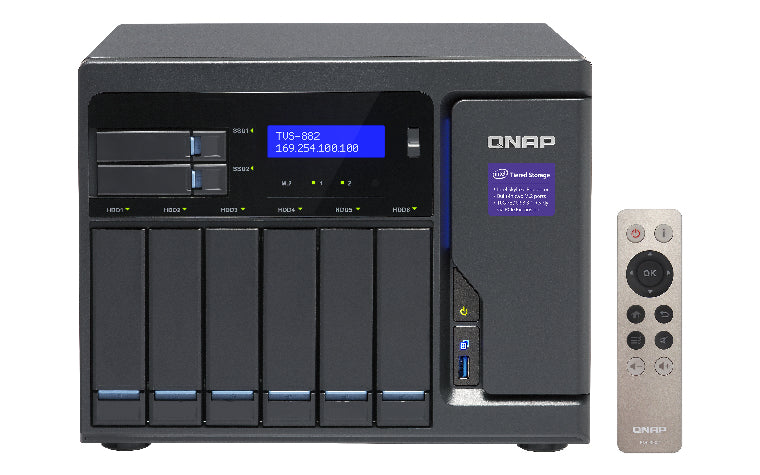

TVS-882-I5-16G-450W-US - QNAP HIGH PERFORMANCE 8 BAY (6+2) NAS

High-performance NAS: tiered storage, application-based partitioning and network traffic distribution The TVS-882 features advanced hardware by adopting 7th Generation Intel® 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Featuring PCIe Gen.3 slots that can support 10GbE/40GbE NIC, PCIe NVMe SSD, graphics cards, and USB 3.1 expansion cards, the TVS-882 also supports smooth 4K @30Hz video transfer, cross-platform file sharing, comprehensive backup and disaster recovery, iSCSI & virtualization and more business applications. Incorporating reliability and security, the TVS-882 presents an ideal choice for a complete business-ready storage solution. - Built-in M.2 SATA 6Gb/s slots & 2.5” SSD slots - Qtier technology and SSD cache enable 24/7 optimized storage efficiency - The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications - Transcodes 4K H.264 videos on-the-fly or offline* - Triple HDMI output for smooth 4K video playback - Scalable design with economical QNAP storage expansion enclosures - Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-882’s storage capacity - Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications, and storage for virtualization 7th Generation Intel® processors, extraordinary performance The TVS-882 is powered by high-performance 7th Generation Intel® multi-core processors with options including Core™ i3 and Core™ i5, increasing system performance by 20% - 30% compared with previous generations. It greatly enhances the efficiency of CPU-demanding applications such as virtualization, real-time 4K @30Hz video playback, and serving large numbers of simultaneous connections. Advanced hardware for greater efficiency High-performance hardware, well-designed application functionalities and thoroughly-planned usage scenarios are three distinctive cornerstones for achieving optimum performance. 1. 2 x 2.5” SSD slots Offers flexible configuration in tiered storage and enables cache acceleration. 2. Tool-less HDD tray and installation 2.5” SSD trays and 3.5” hard drive trays feature tool-less design for easy installation and replacement. 3. 2 x built-in M.2 SSD slots Supports SATA M.2 SSDs with 2242, 2260, 2280, and 22110 form factors; allows the greatest flexibility in tiered storage configuration and enables cache acceleration. Note: M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD. 4. DDR4 2133 MHz memory Supports four DDR4 memory modules for a maximum of 64GB RAM. 5. 7th Generation Intel® Core™ Processor Features the latest 14nm manufacturing technology with faster buses to support DDR4, PCIe Gen.3, and DMI 3.0 for incredible performance and extremely efficient data transmission. 6. 2 x PCIe Gen.3 expansion slots PCIe Gen.3 provides 1GB/s bandwidth per lane; support for 10GbE/ 40GbE adapters, PCIe NVMe SSD, external graphics cards (AMD Radeon™ R7 or RX 480), and USB 3.1 expansion cards. 7. Compartmentalized smart cooling Separately detects the CPU and hard drive temperatures to dynamically control fan speed and performs quieter fan operations. 8. 4 x Gigabit Ethernet ports Allows optimized network traffic distribution for diverse applications. The Network & Virtual Switch app makes network management much easier. 9. 3 x HDMI outputs Three HDMI ports support duplicated and extended desktop options. 10. 3.5mm audio jack Connect speakers or headphones for direct audio output from the NAS. 11. 2 x built-in speakers Supports direct audio output and provides verbal system warnings. M.2 SATA 6Gb/s SSD & 2.5” SSD cache The TVS-882 provides 2 SSD slots dedicated for caching to increase IOPS performance, and provides higher transfer speeds and reliability with the compact, energy-efficient M.2 SSD. Using an SSD cache boosts overall system performance, and is perfect for improving overall workflow of random IOPS demanding applications such as virtualization. The TVS-882 combines M.2 SSD, 2.5” SSD and HDD in one box to effectively realize tiered storage for exceptional application performance and lower TCO of storage at the same time. Learn more: SSD cache Perfect storage trio: tiered storage, application-based partitioning & network traffic distribution The advanced hardware design of TVS-882 can facilitate optimized storage deployment based on different usage scenarios. Tiered Storage QNAP’s Qtier Technology empowers the TVS-882 with Auto Tiering that helps continuously optimize storage efficiency across PCIe NVMe SSD, M.2 SSD, SSD and SATA drives. With Auto Tiering, the TVS-882 can automatically move frequently-used "hot" data to high-performance storage tiers and less-accessed "cold" data to lower-cost, higher-capacity drives, making the TVS-882 an extremely efficient shared resource. Businesses will no longer have to invest heavily in expensive Flash technology, but can still enjoy exceptional application performance and cost efficiency from Auto Tiering with the TVS-882. Application-based Partitioning Every application requires different performance. For example, Surveillance Station requires higher-priority access to storage to ensure the integrity of recordings, while normal transmission speeds are sufficient for file sharing. However, when multiple applications are running on the same storage media, the required throughput level cannot be guaranteed as the storage media is busy handling I/O requests from all of them. The TVS-882 supports three different types of storage media: M.2, SSD and SATA hard drives, and they can be configured as independent partitions for different applications, ensuring a sufficient throughput level for every application. Network Traffic Distribution With four 1 Gigabit Ethernet ports, the TVS-882 allows applications to use dedicated interfaces to meet network traffic distribution requirements. Network interfaces can also be easily managed with the Network & Virtual Switch app, which enables optimized network resources for TVS-882, virtual machines and containerized apps. No matter if they are business organizations or individual users, they can effortlessly manage network connections by using the Network & Virtual Switch. Three HDMI outputs - switch between HD Station and Linux desktop The TVS-882 comes with three HDMI outputs for using three monitors in either “duplicated” or “extended” desktop configuration. Duplicating will display the same content on every display, and extended desktop mode allows users to display applications across the displays for improved multitasking convenience and productivity. When displaying content using HDMI, you can use the TVS-882 as an amazing multimedia player by using HD Station to enjoy rich apps including Plex Home Theater, Google Chrome™, Mozilla Firefox®, and more. Alternatively, you can choose to output the Linux® operating system desktop to use the TVS-882 as a PC. Seamless capacity expansion via SAS or USB interface The TVS-882 supports online capacity expansion by connecting multiple high-performance SAS-enabled QNAP RAID expansion enclosures or economical USB 3.0 expansion units to meet the needs of growing business data. The total storage capacity of the TVS-882 can be gradually expanded and easily managed by the QTS Storage Manager, being useful for large data applications such as video surveillance, data archiving, and TV broadcast storage, and more. Use NAS to expand NAS capacity with Virtual JBOD Besides using physical storage expansion enclosures, there is an additional option to expand NAS storage capacity. QNAP VJBOD (Virtual JBOD) is network-based JBOD, allowing you to expand storage of your QNAP NAS with multiple QNAP NAS units. You can mount iSCSI LUNs from a QNAP NAS to the TVS-882 as local disks, and create virtual storage pools and volumes for operating NAS functionalities, such as creating and reverting snapshots, indexing multimedia files into the media library, and even further creating iSCSI LUNs. With VJBOD, you can centrally utilize the storage space from multiple QNAP NAS units* and manage it with the interface on the local NAS. VJBOD supports 10GbE/40GbE Ethernet connection interface and port trunking (link aggregation with multiple LAN ports) that increase the performance and reliability of your VJBOD storage. Upgrade your IT environment with QNAP's fast and affordable 10GbE Switch! QNAP 10GbE/NBASE-T™ unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provide a 10GbE PCIe network expansion card for the TVS-882 and Windows®/Linux® PCs to take advantage of high-speed LAN environments. QTS – simple and powerful The intuitive QTS features a modern flat design to streamline loading times, and its intelligent desktop allows you to find desired functions quickly, monitor important system information on a real-time basis, and open multiple application windows to run multiple tasks concurrently, bringing greater operating efficiency. QRM+: Centralized management solution for networked computing devices QRM+ is QNAP's Centralized Management Solution, designed for IT teams, for networked computing devices. It provides a single-point solution to discover, map, monitor and manage all of the critical computing devices (including servers, PCs, and thin clients) in your network, and facilitates device discovery with the graphical topology diagram. QRM+ supports IPMI 2.0, provides remote KVM (Keyboard, Video, Mouse) for certain IPMI devices, and supports tracking every action using KVM recording and playback. Simply install QRMAgent on your Windows® and Linux® devices and you will see their system status on the QRM+ management interface. With centralized management using QRM+ on the NAS, IT infrastructure and device security is enhanced while troubleshooting and network resource performance analysis is greatly simplified. QmailAgent: a mailroom center for your private cloud QmailAgent is an online email client that helps you manage multiple email accounts, allowing you to access all of your emails and to easily switch between different accounts. It provides complete functionality for composing, reading and organizing emails. You can even attach files, photos and documents from the TVS-882 when composing emails. Qmail also allows iOS® and Android™ users to quickly check multiple email accounts with mobile devices, and to browse & send emails using the QmailAgent on their TVS-882. Storage for hosting virtual machines and containerized applications Virtualization Station allows you to host virtual machines (VM) on the TVS-882 and access them via a web browser or VNC. Virtualization Station supports multiple operating systems, fast VM creation, VM backup & restoration, VM import/export, snapshot, and Device Management for centrally managing VM. Virtualization Station allows the TVS-882 and VMs to share the same LAN port. No longer constrained by physical network performance, high-speed virtual switches greatly increases data transfer between VMs as well as between VMs and NAS through the internal interface. An AMD Radeon™ R7 Series or RX 480 graphics card can also be installed into the TVS-882's PCIe slot for GPU passthrough to virtual machines, greatly boosting the computational and rendering power of virtualized applications. The TVS-882 also features Container Station, which integrates LXC and Docker® lightweight virtualization technologies. You can operate multiple isolated Linux® systems on the TVS-882 as well as download apps from the built-in Docker Hub Registry®. Storage for comprehensive virtualization applications As an iSCSI/IP-SAN storage solution, the TVS-882 supports VMware® and Citrix®, and is compatible with Microsoft® Hyper-V® and Windows Server® 2012 R2, benefiting flexible deployment and management in virtualization environments. The TVS-882 supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced efficiency of operations and management in virtualization applications. Comprehensive security QNAP’s full NAS encryption by volume-based technology effectively ensures data security by encrypting all of the files stored in the default shared folders on the TVS-882. Besides AES 256-bit encryption for both volumes and shared folders, the TVS-882 also provides numerous security options, such as encrypted access, IP blocking, 2-step verification, and more. Well-rounded backup & disaster recovery solutions The TVS-882 offers flexible backup solutions for Windows® and Mac® users, Volume/LUN snapshots (block-based LUN* and file-based LUN), Folder snapshot, Snapshot Replica and Clone. It also supports Hybrid Backup Sync that consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan. Cross-device file synchronization Qsync provides multiple ways of file synchronization and group file sharing, greatly enhancing the flexibility of collaboration. Any file uploaded to the TVS-882 will be made available for all linked devices, such as computers, laptops or mobile devices. Qsync is especially useful for frequent travelers to manage files and always have the most up-to-date files on different devices. Comprehensive surveillance solution providing 24/7 security Surveillance Station is a professional network surveillance Video Management System (VMS) that offers a user-friendly management interface, over 3,000 compatible IP camera models, and expandable IP camera channel licenses. It supports real-time monitoring, video & audio recording and playback with a wide range of customizable settings. You can also install the Vmobile app on your iOS® or Android™ devices to manage monitored channels anytime and anywhere to safeguard your office environment, or install the Vcam mobile app to turn your device into a network camera to instantly record to your TVS-882. The TVS-882 includes 8 free IP camera channels and you can expand up to 80 channels by purchasing additional licenses. Install-on-demand apps to extend NAS functionality The TVS-882 has a built-in App Center that provides over 100 apps, including tools for backup/sync, business, content management, communications, downloading, entertainment, and much more. You can freely install apps as needed to expand your TVS-882’s functionality.



Specification:



Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	8
Storage drive interface	Serial ATA III
Storage drive size	2.5/3.5"
Hot-swap drive bays	Yes
RAID support	Yes
Supported file systems	FAT32,HFS+,NTFS,exFAT,ext3,ext4
RAID levels	0,1,5,6,10,JBOD
Processor
Processor generation	6th gen Intel® Core™ i7
Processor manufacturer	Intel
Tjunction	100 °C
Thermal Design Power (TDP)	45 W
System bus rate	8 GT/s
Stepping	R0
Processor threads	8
Processor socket	BGA 1440
Processor series	Intel Core i7-6700 Mobile series
Processor package size	42 x 28 mm
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Skylake
Processor code	SR2FQ
Processor cache type	Smart Cache
Processor cache	6 MB
Processor boost frequency	3.5 GHz
PCI Express slots version	3.0
PCI Express configurations	1x16,2x8,1x8+2x4
On-board graphics adapter model	Intel® HD Graphics 530
ECC supported by processor	No
CPU configuration (max)	1
Bus type	DMI3
Maximum internal memory supported by processor	64 GB
Memory bandwidth supported by processor (max)	34.1 GB/s
Conflict-Free processor	Yes
Processor ARK ID	88967
Processor frequency	2.6 GHz
Processor family	Intel Core i7
Processor model	i7-6700HQ
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	16 GB
Maximum RAM supported	32 GB
Memory slots	2
Flash memory	512 MB
Network
Ethernet LAN data rate supported (max)	10000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Wake-on-LAN ready	Yes
Supported network protocols	TCP/IP, IPv4, IPv6
iSCSI support	Yes
DHCP server	Yes
DHCP client	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	4
Hard drive
RAID support	Yes
Supported file systems	FAT32,HFS+,NTFS,exFAT,ext3,ext4
RAID levels	0,1,5,6,10,JBOD
Graphics
On-board graphics adapter OpenGL version	4.4
On-board graphics adapter model	Intel® HD Graphics 530
On-board graphics adapter ID	0x191B
On-board graphics adapter dynamic frequency (max)	1050 MHz
On-board graphics adapter DirectX version	12.0
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	1.7 GB
Number of displays supported (on-board graphics)	3
Design
Cooling type	Active
Fan diameter	4.72" (12 cm)
Built-in display	Yes
Display type	LCM
Cable lock slot type	Kensington
Product colour	Black
Number of fans	1 fan(s)
LED indicators	HDD, SSD, Status
Chassis type	Tower
Cable lock slot	Yes
Technical details
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Built-in display	Yes
Display type	LCM
Product colour	Black
Noise level	15.2 dB
Multilingual support	Yes
LED indicators	HDD, SSD, Status
Chassis type	Tower
Number of fans	1 fan(s)
Performance
Built-in iTunes server	Yes
Built-in FTP server	Yes
Share folder access right management	Yes
Share folder	CIFS, AFP, FTP, WebDAV
S.M.A.R.T. support	Yes
Browser supported	Internet Explorer 10+, Chrome, Safari 7+, Firefox
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
On/off switch	Yes
Windows operating systems supported	Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Server operating systems supported	Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2
Mac operating systems supported	Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Web-based management	Yes
Security algorithms	256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS
Reset button	Yes
Operating system version	4.3
Operating system installed	QNAP Turbo System
Noise level	15.2 dB
Multilingual support	Yes
Access Control List (ACL)	Yes
Cooling
Cooling type	Active
Fan diameter	4.72" (12 cm)
Fan voltage	12 V
Number of fans	1 fan(s)
Security
Cable lock slot type	Kensington
Security algorithms	256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS
Cable lock slot	Yes
Access Control List (ACL)	Yes
Software
Windows operating systems supported	Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Server operating systems supported	Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2
Mac operating systems supported	Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Operating system version	4.3
Operating system installed	QNAP Turbo System
Management features
On/off switch	Yes
Web-based management	Yes
Reset button	Yes
Power
Power supply location	Built-in
Power supply unit (PSU) capacity	240 W
Fan voltage	12 V
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (typical)	42.7 W
Power consumption (sleep)	25.57 W
Number of power supply units	1
Power management	Yes
Weight & dimensions
Width	7.09" (180 mm)
Depth	9.25" (235 mm)
Height	6.97" (177 mm)
Weight	8.75 lbs (3.97 kg)
Packaging content
Number of screws	32
Quick installation guide	Yes
Cables included	AC, LAN (RJ-45)
Processor special features
Thermal Monitoring Technologies	Yes
Maximum number of PCI Express lanes	16
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Secure Key	Yes
Intel® Quick Sync Video Technology	Yes
Intel® OS Guard	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Smart Response Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel Flex Memory Access	Yes
Intel Enhanced Halt State	Yes
Intel Clear Video Technology	Yes
Intel 64	Yes
Idle States	Yes
Graphics & IMC lithography	14 nm
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	No
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3L-SDRAM,LPDDR3-SDRAM,DDR4-SDRAM
System requirements
Windows operating systems supported	Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Server operating systems supported	Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2
Mac operating systems supported	Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Cables included	AC, LAN (RJ-45)
Other features
Processor ARK ID	88967
Power management	Yes
