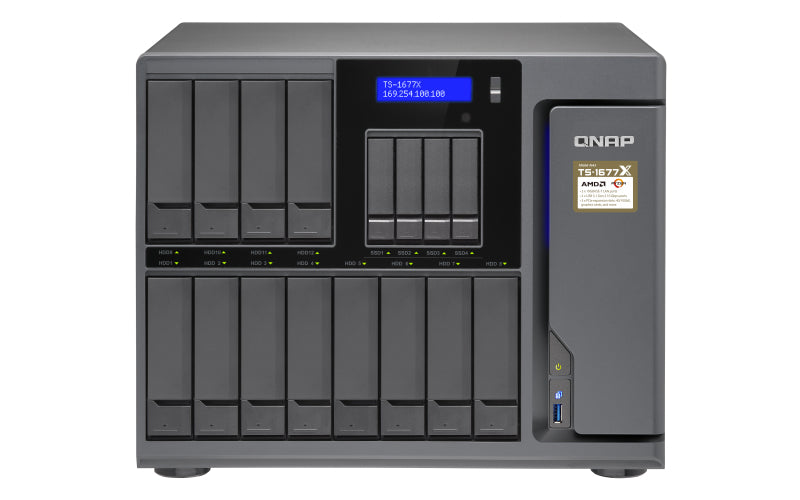

TS-1677X-1600-8G-US - QNAP 12 (+4) BAY HIGH-CAPACITY 10GBE ISC

The giant TS-1677X is powered by an AMD Ryzen™ processor with up to 8 cores/16 threads. When used with a high-end graphics card, the TS-1677X delivers incredible computing performance to empower data-intensive machine learning applications. The AMD Ryzen™ processor, with Turbo Core of up to 3.7 GHz, can greatly boost virtual machine performance. Absolute performance with AMD Ryzen™ and up to 64GB RAM Powered by a high-performance multi-core AMD Ryzen™ processor with AES-NI encryption acceleration and up to 64GB DDR4 RAM, the TS-1677X delivers aggressive yet power-smart performance to meet your multitasking demands, including running multiple virtual machines simultaneously. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, look no further than the TS-1677X. Top-class hardware engineering with high I/O expandability The exceptional hardware of the TS-1677X bolsters overall system performance. Coupled with the flexible and expandable architecture, the TS-1677X fulfills diversified application needs. Built-in dual 10GbE 10GBASE-T ports The TS-1677X offers not only four Gigabit Ethernet ports but also two 10GBASE-T RJ45 ports to fully support 10GbE high-speed networks and accelerate applications such as virtualization and on-the-fly video editing. The 10GBASE-T RJ45 ports also support 10G/5G/2.5G/1G/100M speeds to fulfill various bandwidth demands. Upgrade your IT environment with QNAP's fast and affordable 10GbE Switch! QNAP 10GbE/NBASE-T™ unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provides a 10GbE PCIe network expansion card for Windows®/Linux® PCs to take advantage of high-speed LAN environments. Extend NAS functionality with PCIe slots The TS-1677X features three PCIe slots (1 x PCIe 3.0 x8, 1 x PCIe 3.0 x4, 1 x PCIe 2.0 x4) that allow for installing various expansion cards to increase application potential. 10GbE/ 40GbE adapters Enables lightning-fast throughput for bandwidth-demanding tasks such as virtualization, massive data transmission, and fast backup/restoration. QM2 M.2 SSD/10GbE cards Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance. Graphics cards Accelerates NAS video processing and GPU computing, empowers AI machine learning, and supports GPU-passthrough to VMs. Wireless network cards Works with WirelessAP Station to transform the NAS into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices. Fuel GPU-accelerated computing with a 550W power supply Graphics cards are optimized for graphical calculations and transformations. The TS-1677X provides a 550 watt power supply to ensure compatibility with high-end graphics cards that can greatly empower applications including data-intensive AI machine learning, imaging processing, and virtual machine performance (via GPU passthrough). When watching videos with the TS-1677X, you can use the remote control ( RM-IR004, optional purchase) that supports QButton for a more convenient control of your multimedia experience. SSD caching and auto tiering enable 24/7 optimized storage efficiency The TS-1677X provides four 2.5-inch drive bays for SSD caching, perfect for improving the overall workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-1677X with auto tiering that continuously tiers files and data based on their access frequency. The new Qtier™ 2.0 also features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs. The utmost performance & reliability The TS-1677X supports advanced business features to provide maximized efficiency, performance, and to ensure round-the-clock services. RAID 50/60 For a NAS with over 10 disks, RAID 50/60 not only provides greater data protection than RAID 5/6, but also maximizes available storage space compared to RAID 10. RAID 50/60 provides notable performance and protection for businesses of all sizes, including applications such as professional video streaming and databases. iSER The iSCSI Extensions for RDMA (iSER) protocol with a compatible 10GbE/40GbE SFP+ NIC helps boost data transfer performance of the NAS as VMware® ESXi storage, providing an essential tool to optimize demanding virtualization applications. Central management QRM+ provides a single-point solution to discover, map, monitor and manage all Windows®, Linux® and IPMI devices in your network, and facilitates device discovery with a graphical topology diagram. Block-based iSCSI LUN: Ideal choice for virtualization storage The TS-1677X supports block-based iSCSI LUN that provides a more reliable and isolated environment than file-based LUN. Supporting VMware®, Citrix®, Microsoft® Hyper-V®, Windows Server® 2012 R2 and Windows Server® 2016, the TS-1677X provides a reliable and affordable storage solution for virtualization environments, while also supporting VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications. All-in-one server to host virtual machines and containers Virtualization Station and Container Station provide comprehensive solutions for creating virtualized environments to improve business IT infrastructure, workflows, and productivity. Virtualization Station Run multiple Windows®, Linux®, UNIX®, Android™, and vQTS virtual machines and access them via a web browser or VNC (Virtual Network Computing). Businesses can consolidate existing physical servers into virtual machines on their NAS to reduce operating and maintenance costs. Container Station Container Station integrates LXC and Docker® lightweight virtualization technologies. You can download apps from the built-in Docker Hub® to easily import/export container apps and manage access control, enjoying the benefit of easy installation, transferability and high-efficiency. Host multiple virtual QTS systems on a single NAS Based on Virtualization Station, vQTS allows for creating isolated virtual QTS systems to provide benefits for resource segregation, multi-tenant environments, and flexible application deployment. vQTS can also help optimize power usage, costs, and physical space. You can host multiple independent QTS systems on the TS-1677X, while each virtual QTS can be used by different departments and teams with their own privilege settings and application environments, realizing greater business flexibility in management and applications. Complete backup planning The TS-1677X provides flexible backup and disaster recovery solutions to assist organizations in routine backup jobs with greater cost-efficiency and productivity. Windows and Mac backup Use the free QNAP NetBak Replicator utility to backup/restore Windows® files. Time Machine® is also supported for Mac® devices. Hybrid Backup Sync Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan. Snapshots for Volume & LUN Snapshots are essential for NAS data protection, and its block-level operation makes it a dependable method for mitigating the growing threat of ransomware. The TS-1677X supports up to 256 snapshots per volume or LUN, and maximum 1,024 snapshots per NAS. VM backup With potentially huge storage capacities, high performance, integrated virtualization solutions, and support for snapshots that record the state of the system at any time, the TS-1677X is perfect for backing up virtual machines. Enjoy the Roon experience without a PC Roon, the music player for music lovers, identifies all the music stored on the NAS and consolidates them in Roon’s interconnected digital library. You can browse and play music with Roon apps on any compatible device for multi-zone multimedia experiences. The TS-1677X supports the Roon Server app in the QTS App Center and provides the performance, storage potential, and SSD caching to optimize music streaming, providing the perfect choice for the optimum music experience! Whole new QVR Pro surveillance solution QNAP’s new QVR Pro surveillance solution allows you to arrange a dedicated, independent storage space for surveillance data on TS-1677X and leverage the advantages of scalability and storage manageability from QTS. With QVR Pro, camera management, storage space allocation, camera live viewing and playback is greatly simplified. You can also use the QVR Pro Client mobile app to monitor your cameras from anywhere, or use a USB webcam as an ONVIF network camera with the QUSBCam2 app. More productivity applications DJ2 Live Live broadcasting through QNAP NAS, while also streaming to public clouds. The footage is saved directly to the NAS for later playback. Q’center Use the NAS as a central management platform to manage multiple QNAP NAS across multiple sites, monitor system logs, and manage NAS updates and maintenance. QIoT Suite Lite Combines the security and large capacity potential of QNAP NAS while providing an IoT solution on a private cloud. It only takes three steps to quickly deploy your own IoT application. Browser Station Enable remote access through NAS browsers to access local LAN resources without going through complex VPN settings. QmailAgent Centrally manage and switch between different email accounts, back up emails to the NAS, and safeguard email security and personal privacy. Qsirch A full-text search engine that helps quickly find specific images, music, videos, documents, and emails by using keywords and many search conditions. Flexible and economical storage expansion You need an easy solution to increase storage capacity when running out of space. QNAP provides several ways to expand your NAS storage as needed to accommodate data and business growth. VJBOD Use VJBOD (Virtual JBOD) to expand your storage capacity by using the unused storage of other QNAP NAS. Up to 8 QNAP NAS can be mounted as local disks on the TS-1677X. Upgrade RAID Capacity Hot swap lower-capacity drives with larger-capacity drives so that your QNAP NAS can grow with your business. Migrate to a New NAS Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations. Attach Expansion Enclosure Connect up to 2 UX-800P, UX-500P or up to 4 REXP-1000 Pro expansion enclosures. Use the Storage & Snapshots Manager to easily handle NAS capacity expansion.



Specification:



Storage
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
Bad block scan	Yes
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	16
Hot-swap drive bays	Yes
RAID support	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
RAID levels	0, 1, 5+HS, 5, 6, 6+HS, 10+HS, 10, 50, 60, JBOD
Supported storage drive interfaces	Serial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID rebuild	Yes
Processor
Processor boost frequency	3.7 GHz
Processor frequency	3 GHz
Processor family	AMD Ryzenâ„¢ 7
Processor model	1700
Processor cores	8
Memory
Internal memory type	DDR4
Internal memory	64 GB
Maximum RAM supported	64 GB
Memory slots	4x DIMM
Flash memory	5120 MB
Network
Link aggregation	Yes
Ethernet LAN data rate supported (max)	10000 Mbit/s
Dynamic DNS (DDNS)	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500,5000,10000 Mbit/s
Wi-Fi	No
Wake-on-LAN ready	Yes
Supported network protocols	IPv4/v6, STP, FTP, CIFS/SMB, AFP, FXP, PPTP
Jumbo frames support	Yes
iSCSI support	Yes
DHCP server	Yes
DHCP client	Yes
WLAN adapter supported	Yes
Ports & interfaces
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	7
PCI Express x8 (Gen 3.x) slots	1
PCI Express x4 (Gen 3.x) slots	1
3.5 mm (1/8-inch) out	Yes
Ethernet LAN (RJ-45) ports	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Hard drive
RAID support	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
RAID levels	0, 1, 5+HS, 5, 6, 6+HS, 10+HS, 10, 50, 60, JBOD
Design
Number of built-in speakers	1
Built-in speaker(s)	Yes
Fan diameter 2	3.54" (9 cm)
Cooling type	Active
Fan diameter	3.62" (9.2 cm)
Drive bay locking	Yes
Built-in display	Yes
Display type	LCD
Cable lock slot type	Kensington
Product colour	Black
Number of fans	5 fan(s)
LED indicators	HDD, SSD
Chassis type	Tower
Cable lock slot	Yes
Technical details
Type	NAS
Device class	Large Enterprise Business
Backup features	Cloud, USB drive, iSCSI LUN
Built-in display	Yes
Display type	LCD
Product colour	Black
Number of users	4096 user(s)
LED indicators	HDD, SSD
Chassis type	Tower
Buzzer	Yes
Number of fans	5 fan(s)
Performance
Built-in iTunes server	Yes
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
Share folder	512
S.M.A.R.T. support	Yes
Hot spare	Yes
Browser supported	Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox
Backup button	Yes
Universal Plug and Play (UPnP)	Yes
Built-in BitTorrent client	Yes
Type	NAS
Device class	Large Enterprise Business
Backup features	Cloud, USB drive, iSCSI LUN
On/off switch	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Web-based management	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SNMP, SSH
Reset button	Yes
Operating system version	4.3.4
Operating system installed	QNAP Turbo System
Number of users	4096 user(s)
Management protocols	SNMP
Buzzer	Yes
Third-party support	Yes
Snapshot	Yes
USB copy function	Yes
Cooling
Cooling type	Active
Fan diameter	3.62" (9.2 cm)
Fan voltage	12 V
Number of fans	5 fan(s)
Security
Drive bay locking	Yes
Cable lock slot type	Kensington
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SNMP, SSH
Cable lock slot	Yes
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Operating system version	4.3.4
Operating system installed	QNAP Turbo System
Management features
On/off switch	Yes
Web-based management	Yes
Reset button	Yes
Management protocols	SNMP
Power
Power supply location	Built-in
Power supply unit (PSU) capacity	550 W
Fan voltage	12 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Number of power supply units	1
Weight & dimensions
Width	14.6" (369.9 mm)
Depth	12.6" (319.8 mm)
Height	12" (303.8 mm)
Weight	29.5 lbs (13.4 kg)
Package weight	35.3 lbs (16 kg)
Packaging content
Quick installation guide	Yes
Cables included	AC, LAN (RJ-45)
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Mac operating systems supported	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Package weight	35.3 lbs (16 kg)
Cables included	AC, LAN (RJ-45)
