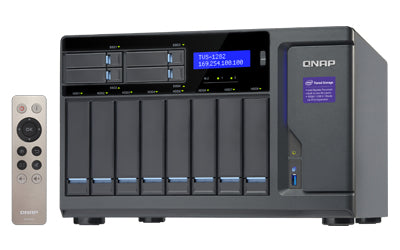

TVS-1282-I5-16G-450W-US - QNAP HIGH PERFORMANCE 12 BAYI5 3.6GHZ

De TVS-1282 is voorzien van geavanceerde hardware door het gebruik van 6e Generatie Intel® 14nm multi-core processoren en is ontworpen rond het concept van gelaagde opslag, applicatie-gebaseerde partitionering en verdeling van netwerkverkeer. Naast PCIe Gen.3 sleuven voor 10GbE / 40GbE NIC, PCIe SSD NVMe, grafische kaarten en USB 3.1 uitbreidingskaarten, ondersteunt de TVS-1282 ook soepele 4K video-overdrach, cross-platform bestandsdeling, uitgebreide back-up en noodherstel, iSCSI, virtualisatie en andere zakelijke toepassingen. Door integratie van betrouwbaarheid en veiligheid, is de TVS-1282 een ideale keuze voor bedrijven op zoek naar een complete opslagoplossing. - Ingebouwde M.2 SATA 6Gb/s sleuven & 2,5” SSD-sleuven - Qtier-technologie en SSD-cache maken 24/7 optimale opslagefficiëntie mogelijk - De Network & Virtual Switch app assisteert verdeling van netwerkverkeer, en regelt eigen bandbreedte voor diverse toepassingen - Drievoudige HDMI-uitgang voor het vloeiend afspelen van 4K video. - Schaalbaar ontwerp met voordelige QNAP-modules voor uitbreiding van opslagcapaciteit - Met Virtuele JBOD (VJBOD) kunt u de QNAP NAS gebruiken om de opslagcapaciteit van de TVS-1282 uit te breiden - Ondersteunt QRM+ centraal beheer van externe servers, QvPC-technologie, virtuele machine en container-apps, en opslag voor virtualisatie



Specification:



Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
Storage drive interface	Serial ATA III
Storage drive size	2.5/3.5"
Hot-swap drive bays	Yes
RAID support	Yes
Supported file systems	FAT32,HFS+,NTFS,ext3,ext4
RAID levels	0,1,5,6,JBOD
Processor
Processor generation	6th gen Intel® Core™ i5
Processor manufacturer	Intel
Thermal Design Power (TDP)	65 W
Tcase	71 °C
System bus rate	8 GT/s
Stepping	R0
Scalability	1S
Processor threads	4
Processor socket	LGA 1151 (Socket H4)
Processor series	Intel Core i5-6500 Desktop series
Processor package size	37.5 x 37.5 mm
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Skylake
Processor code	SR2BX
Processor cache type	Smart Cache
Processor cache	6 MB
Processor boost frequency	3.6 GHz
PCI Express slots version	3.0
PCI Express configurations	1x16,2x8,1x8+2x4
On-board graphics adapter model	Intel® HD Graphics 530
ECC supported by processor	No
CPU configuration (max)	1
Bus type	DMI3
Maximum internal memory supported by processor	64 GB
Memory bandwidth supported by processor (max)	34.1 GB/s
Conflict-Free processor	Yes
Processor ARK ID	88184
Processor frequency	3.2 GHz
Processor family	Intel Core i5
Processor model	i5-6500
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	16 GB
Maximum RAM supported	32 GB
Memory slots	4
Flash memory	512 MB
Network
Link aggregation	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No
Wake-on-LAN ready	Yes
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
Jumbo frames support	Yes
iSCSI support	Yes
DHCP server	Yes
DHCP client	Yes
Data link protocols	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
HDMI ports quantity	3
Ethernet LAN (RJ-45) ports	4
Hard drive
RAID support	Yes
Supported file systems	FAT32,HFS+,NTFS,ext3,ext4
RAID levels	0,1,5,6,JBOD
Graphics
On-board graphics adapter OpenGL version	4.4
On-board graphics adapter model	Intel® HD Graphics 530
On-board graphics adapter ID	1912
On-board graphics adapter dynamic frequency (max)	1050 MHz
On-board graphics adapter DirectX version	12.0
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	1.74 GB
Number of displays supported (on-board graphics)	3
Design
Cooling type	Active
Fan diameter	3.15" (8 cm)
Built-in display	Yes
Display type	LCD
Product colour	Black
Number of fans	3 fan(s)
LED indicators	HDD, SSD, Status
Chassis type	Tower
Technical details
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Built-in display	Yes
Display type	LCD
Product colour	Black
Noise level	21.6 dB
Multilingual support	Yes
LED indicators	HDD, SSD, Status
Chassis type	Tower
Buzzer	Yes
Software support	Qfinder Pro, myQNAPcloud Connect, Qsync, NetBak, vSphere, Q’center Virtual Appliance, QNAP Snapshot Agent, Qsnap
Number of fans	3 fan(s)
Performance
Built-in UPnP AV media server	Yes
Built-in iTunes server	Yes
Built-in FTP server	Yes
System log	Yes
Share folder access right management	Yes
Share folder	CIFS/SMB
S.M.A.R.T. support	Yes
Password authentication	Yes
Hot spare	Yes
Browser supported	Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome
Type	NAS
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
On/off switch	Yes
Windows operating systems supported	Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Server operating systems supported	Windows Server 2003,Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Web-based management	Yes
Security algorithms	256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS
Reset button	Yes
Operating system version	4.2
Operating system installed	QNAP Turbo NAS System
Noise level	21.6 dB
Multilingual support	Yes
Buzzer	Yes
Access Control List (ACL)	Yes
Cooling
Cooling type	Active
Fan diameter	3.15" (8 cm)
Number of fans	3 fan(s)
Security
Security algorithms	256-bit AES,FIPS 140-2,HTTPS,SSH,SSL/TLS
Access Control List (ACL)	Yes
Software
Windows operating systems supported	Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Server operating systems supported	Windows Server 2003,Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Operating system version	4.2
Operating system installed	QNAP Turbo NAS System
Management features
On/off switch	Yes
Web-based management	Yes
Reset button	Yes
Power
Output current	5 A
Power supply location	Built-in
Power supply unit (PSU) capacity	250 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Number of power supply units	1
Power management	Yes
Weight & dimensions
Width	14.6" (369.9 mm)
Depth	12.6" (319.8 mm)
Height	9.24" (234.6 mm)
Weight	25.6 lbs (11.6 kg)
Package weight	30.2 lbs (13.7 kg)
Packaging content
Number of screws	28
Quick installation guide	Yes
Cables included	AC, LAN (RJ-45)
Processor special features
Thermal solution specification	PCG 2015C
Thermal Monitoring Technologies	Yes
Maximum number of PCI Express lanes	16
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Smart Cache	Yes
Intel® Secure Key	Yes
Intel® Quick Sync Video Technology	Yes
Intel® OS Guard	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Small Business Advantage (SBA) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel Enhanced Halt State	Yes
Intel Clear Video Technology	Yes
Intel 64	Yes
Idle States	Yes
Graphics & IMC lithography	14 nm
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Embedded options available	Yes
Memory channels supported by processor	Dual
Memory types supported by processor	DDR3L-SDRAM,DDR4-SDRAM
Memory voltage supported by processor	1.35 V
System requirements
Windows operating systems supported	Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Server operating systems supported	Windows Server 2003,Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2
Mac operating systems supported	Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Package weight	30.2 lbs (13.7 kg)
Cables included	AC, LAN (RJ-45)
Other features
Processor ARK ID	88184
Software support	Qfinder Pro, myQNAPcloud Connect, Qsync, NetBak, vSphere, Q’center Virtual Appliance, QNAP Snapshot Agent, Qsnap
Power management	Yes
Digital Living Network Alliance (DLNA) certified	Yes
