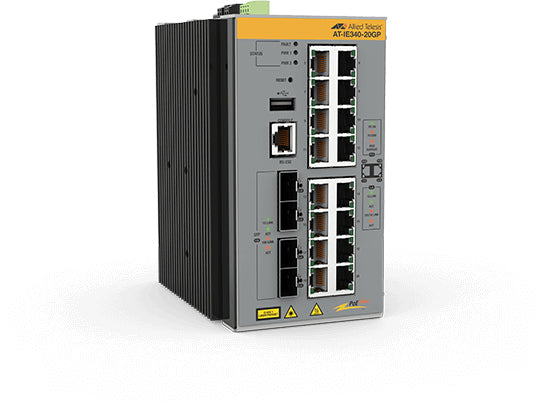

AT-IE340-20GP-80 - Allied Telesis L3 INDUSTRIAL ETHERNET SWITCH, 20 PORT

Industrial Ethernet Layer 3 Switches Allied Telesis ruggedized IE340 Industrial Ethernet switches provide enduring performance in harsh environments, such as those found in manufacturing, transportation and physical security. Offering high throughput, rich functionality and advanced security features, IE340 switches deliver the performance and reliability demanded by deployments in the age of the Internet of Things (IoT). Overview Allied Telesis IE340 Series are a high-performing and feature-rich choice for today’s networks. The IE340 is ideal for Industrial Ethernet applications, being fully qualified for manufacturing, automation, process control, railway transportation (Telco & Signaling), roadway transportation (Traffic Control) and Smart Cities. With a fanless design and a wide operating temperature range, the IE340 tolerates the harsh and demanding environments found in industrial and outdoor deployments. Modbus/TCP enables integration with existing factory management tools, and provides real-time automation in modular control and distributed systems. Network management Allied Telesis Autonomous Management Framework™ (AMF) meets the increasing management requirements of today’s modern converged networks, by automating many everyday tasks such as configuration management. AMF’s powerful features allow an entire network to be easily managed as a single virtual device. Vista Manager™ EX is an intuitive visualization tool that complements the power of AMF. It allows users to monitor the network and quickly identify issues before they become major problems. Securing the network edge Ensuring data protection means controlling network access. Protocols such as IEEE 802.1X port-based authentication guarantee that only known users are connected to the network. Unknown users who physically connect can be segregated into a pre-determined part of the network. This offers guests Internet access, while ensuring the integrity of private data. Gigabit and Fast Ethernet The IE340 Series SFP ports support both Gigabit and Fast Ethernet Small Form-Factor Pluggables (SFPs)(1). This makes the IE340 Series ideal for environments where Gigabit fiber switches will be phased in over time, and allows for connectivity to the legacy 100FX hardware until it is upgraded to Gigabit Ethernet. Support for both speeds of SFP allows organizations to stay within budget as they migrate to faster technologies. Network resiliency The IE340 Series supports highly stable and reliable ICT network switching, with recovery times down to 50ms. The IE340 can be customized with the most appropriate mechanism and protocol to prevent network connection failure. Choices include Allied Telesis Ethernet Protection Switched Ring (EPSRing™), and the standards-based ITU-T G.8032. Configurable PoE power budget and dynamic power allocation On PoE-sourcing IE340 switches, the overall power budget can be configured to establish a close relationship between the power sourcing feature and the real capabilities of the external Power Supply Unit (PSU)(2). PoE power is allocated dynamically, based on the current usage of each powered device. Future-proof The IE340 Series ensures a future-proof network with a comprehensive feature set, and is Software Defined Networking (SDN) ready, supporting OpenFlow v1.3.



Specification:



Management features
Multicast support	Yes
ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Switch layer	L3
Configuring Location Settings (CLI)	Yes
Network
IGMP snooping	Yes
Networking standards	IEEE 802.1x
VLAN support	Yes
Spanning tree protocol	Yes
Number of VLANs	4094
10G support	No
Virtual LAN features	Private VLAN
Virtual LAN features
VLAN support	Yes
Number of VLANs	4094
Virtual LAN features	Private VLAN
Data transmission
Number of VLANs	4094
Jumbo frames	9000
Latency (10-100 Mbps)	7.8 µs
Latency (1 Gbps)	3.4 µs
Packet buffer memory	1.5 MB
MAC address table	16000 entries
Switching capacity	36 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Forwarding rate	26.7 Mpps
Performance
Packet buffer memory	1.5 MB
Stackable	No
Memory type	DDR-SDRAM
Internal memory	512 MB
Flash memory	128 MB
Harmonized System (HS) code	8517.62.0050
Export Control Classification Number (ECCN)	5A992C
Technical details
Product colour	Gray
Stackable	No
Housing material	Aluminum, Metal
Rack mounting	No
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
USB 2.0 ports quantity	1
Console port	RJ-45
Security
BPDU filtering/protection	Yes
Authentication	Guest VLAN
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Password protection	Yes
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server
Multicast features
Multicast support	Yes
Protocols
Routing protocols	BGP, OSPF, RIP
Certificates
Electromagnetic compatibility	AS/NZS CISPR 32 A, CISPR 32 A, EN 55032 A, EN 61000-6-4 A, FCC 47 CFR 15 B A, ICES 003 6 A, VCCI A
Certification	EN 50022, EN 60715 CE, FCC, ICES, RCM, TEC, UL, VCCI RoHS, China-RoHS, WEEE
Memory
Packet buffer memory	1.5 MB
Memory type	DDR-SDRAM
Internal memory	512 MB
Flash memory	128 MB
Design
Wall mountable	Yes
International Protection (IP) code	IP30
DIN rail mounting	Yes
Product colour	Gray
Stackable	No
LED indicators	Yes
Housing material	Aluminum, Metal
Electromagnetic compatibility	AS/NZS CISPR 32 A, CISPR 32 A, EN 55032 A, EN 61000-6-4 A, FCC 47 CFR 15 B A, ICES 003 6 A, VCCI A
Certification	EN 50022, EN 60715 CE, FCC, ICES, RCM, TEC, UL, VCCI RoHS, China-RoHS, WEEE
Rack mounting	No
Indication
LED indicators	Yes
Power
Power consumption (max)	271 W
Power supply included	No
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	15 W
Power over Ethernet plus (PoE+) ports quantity	16
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Heat dissipation	105.8 BTU/h
Weight & dimensions
Width	3.58" (91 mm)
Depth	5.47" (139 mm)
Height	6.02" (153 mm)
Weight	5.16 lbs (2.34 kg)
