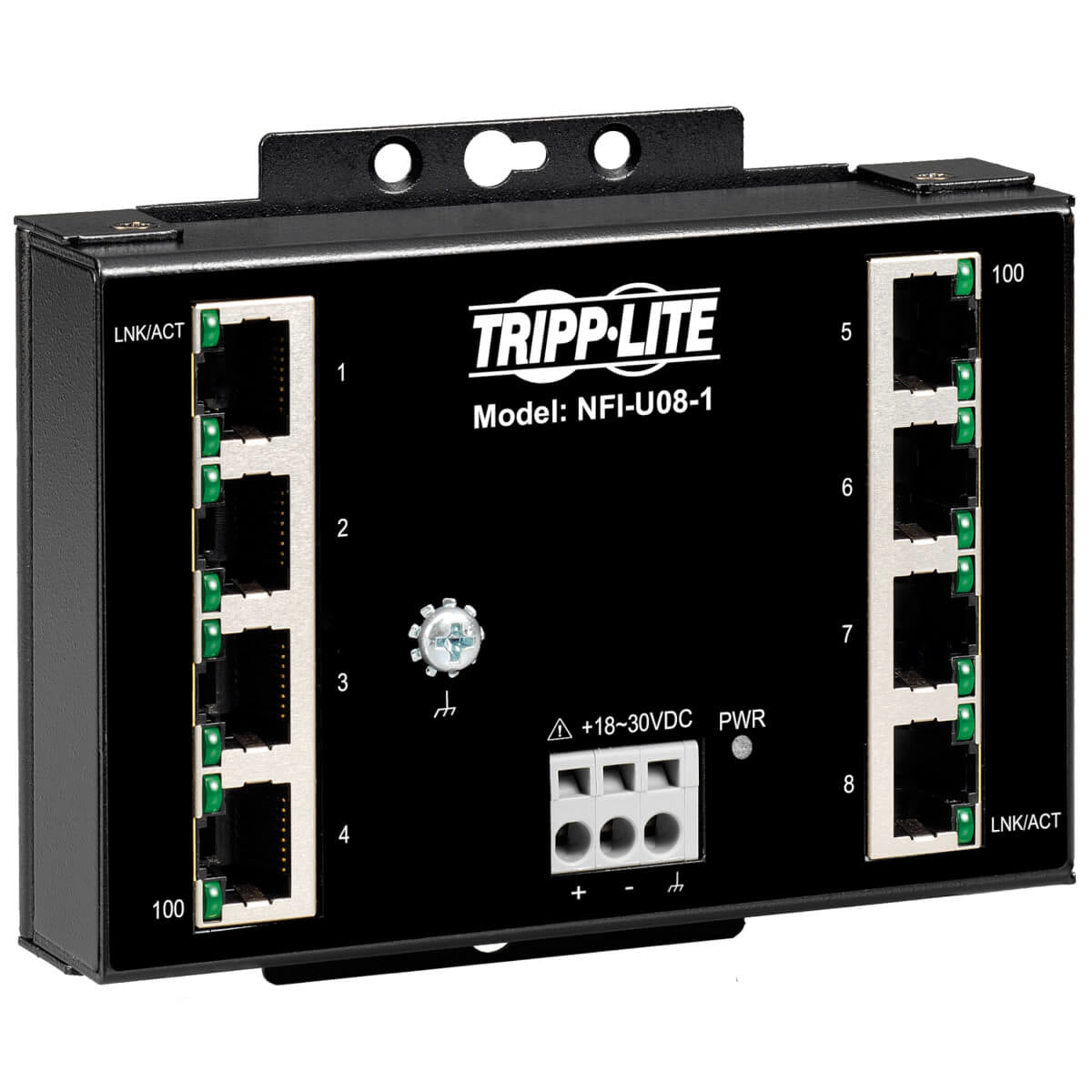

NFI-U08-1 - Tripp Lite ETHERNET SWITCH UNMANAGED 8PORT INDUSTRI

8-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN This space-saving Tripp Lite switch transmits data over an Ethernet network. Eight auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. Ruggedized Metal Housing Built to Last in Harsh Environments The compact NFI-U08-1 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit). Unmanaged Switch Requires Little to No Configuration Quickly connect your network devices with little to no configuration. Alternative-language LEDs indicate when the switch is powered ON and which Ethernet ports are showing activity with connection speed. The NFI-U08-1 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. Pre-Installed DIN Rail Clip Allows for Convenient Installation The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 3-pin 18-30VDC terminal block supplies power input. Device power shall be supplied by 61010-2-201 R/C power with LPS (Limited Power Source). TAA-Compliant for GSA Schedule Purchases The NFI-U08-1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.



Specification:



Performance
Auto-negotiation	Yes
Harmonized System (HS) code	8517.62.0020
Power
Power connector	Terminal block (2-pin)
Power supply included	No
Power consumption (typical)	3 W
Input current	0.2 A
DC input voltage	12 - 48 V
Technical details
Product colour	Black
Housing material	Metal
Rack mounting	No
Sustainability compliance	Yes
Sustainability certificates	CE, REACH, RoHS
Master (outer) case GTIN (EAN/UPC)	10037332264555
Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	Terminal block (2-pin)
Network
MAC address auto-learning supported	Yes
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Flow control support	Yes
Ethernet LAN data rates	100 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Switching capacity	1.6 Gbit/s
Design
Country of origin	Taiwan
DIN rail mounting	Yes
Product colour	Black
LED indicators	LAN, Link, Power
Housing material	Metal
Rack mounting	No
Indication
LED indicators	LAN, Link, Power
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	1.97" (50 mm)
Depth	4.56" (115.8 mm)
Height	3.92" (99.6 mm)
Weight	15.5 oz (440 g)
Packaging data
Package width	9.17" (232.9 mm)
Package depth	7.2" (182.9 mm)
Package height	2.44" (62 mm)
Package weight	20.5 oz (580 g)
Manual	Yes
Sustainability
Sustainability compliance	Yes
Sustainability certificates	CE, REACH, RoHS
Logistics data
Master (outer) case width	13.1" (334 mm)
Master (outer) case length	15.1" (384 mm)
Master (outer) case height	10.2" (260.1 mm)
Master (outer) case gross weight	15.1 lbs (6.85 kg)
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	8517.62.0020
Other features
Ethernet LAN data rates	100 Mbit/s
Country of origin	Taiwan
Packaging content
Manual	Yes
