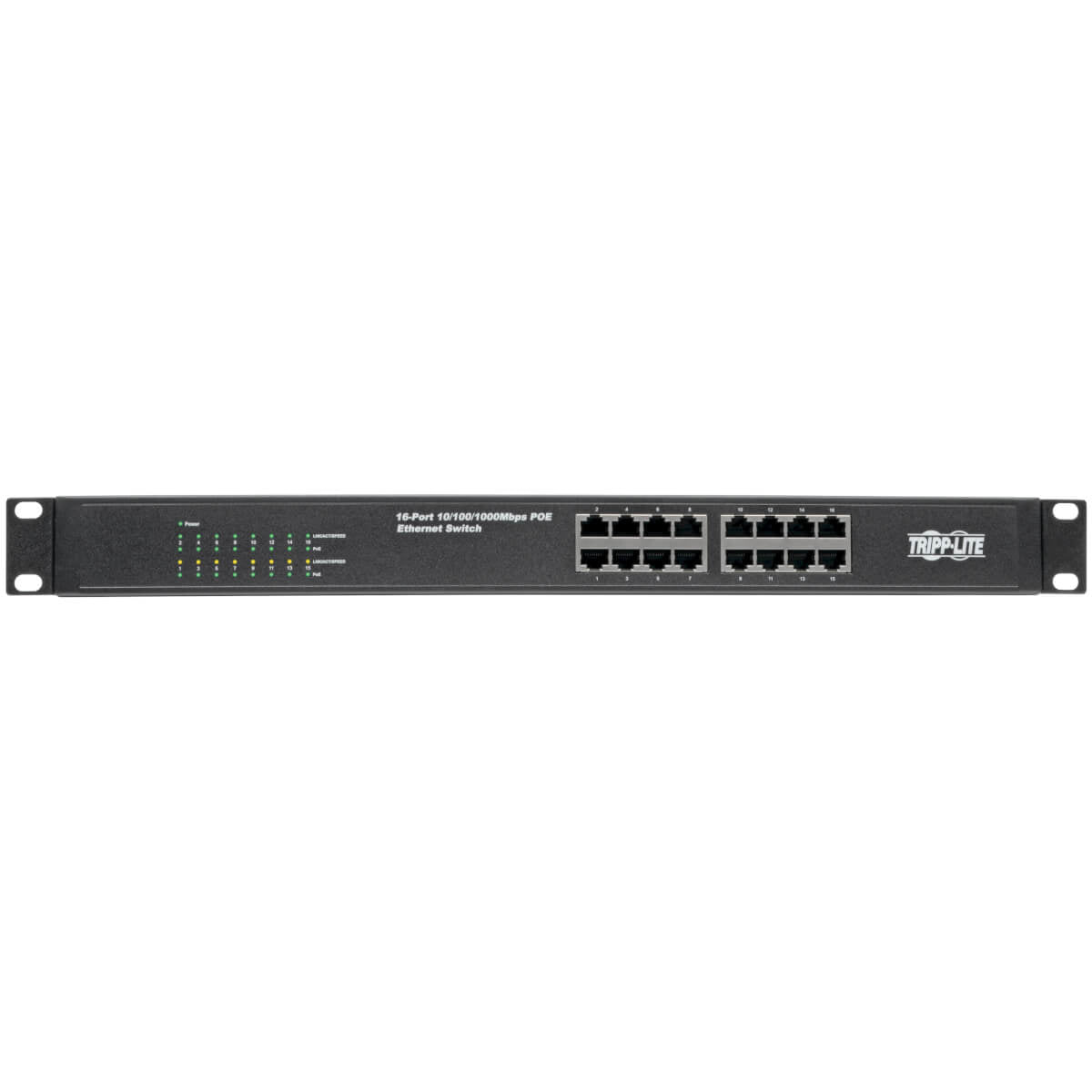

The NG16POE 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch adds a Gigabit Ethernet connection with PoE+ capacity to your small office, workgroup or creative workspace. Especially recommended for security applications to power IP cameras, VoIP phones and other PoE-compatible devices, this Ethernet switch provides PoE+ compatibility with wireless access points and other devices with up to 30W per port and a PoE budget of 230W. Sharing large bandwidth-intensive files, such as CAD drawings and high-definition videos, at Gigabit speeds improves efficiency and cuts costly downtime. IEEE 802.3x flow control allows smooth transmission. This unmanaged switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection. It’s plug-and-play with no configuration required and can be up and running immediately. Easy-to-read LEDs indicate power, connection, activity and PoE status for each port. The detachable six-foot power cord with NEMA 5-15P plug connects to any compatible AC source. The heavy-duty metal housing is designed for desktop installation or mounting into 1U of an EIA-standard 19-inch rack with the included brackets.
Unmanaged Network Switch for Home/Small Offices, Workgroups and Security Applications - 16 twisted-pair RJ45 Gigabit Ethernet ports with PoE+ capability - Auto-negotiable 10/100/1000 Mbps - Automatic MDI/MDIX cross-over detection - 32 Gbps switching capacity (2 Gbps per port with full duplex) - LEDs indicate power, connection, activity and PoE status per port - Supports 9k jumbo frames, MAC address auto-learning and auto-aging, and 802.3x flow control (full duplex) and back pressure (half duplex)
230W Total PoE+ Budget - Up to 30W PoE per port - Each port supplies PoE+ power to connected devices via network cable
Heavy-Duty Metal Housing - Detachable 6 ft. AC power cord with NEMA 5-15P plug - Plug-and-play—no configuration necessary
Versatile Installation Options - Includes rubber feet for secure placement on flat desktop surface - Mounts in 1U of EIA-standard 19 in. rack with included brackets - Grounding lug included
Package Includes - NG16POE 16-Port 10/100/1000 Mbps 1U Rack-Mount/Desktop Gigabit Ethernet Unmanaged Switch - Detachable AC power cord with NEMA 5-15P plug, 6 ft. - (2) Rack-mounting brackets - (8) Screws - (4) Rubber feet - Owner’s manual
Specification:
| Features |
|---|
| Product colour |
Black |
| Colour |
|---|
| Product colour |
Black |
