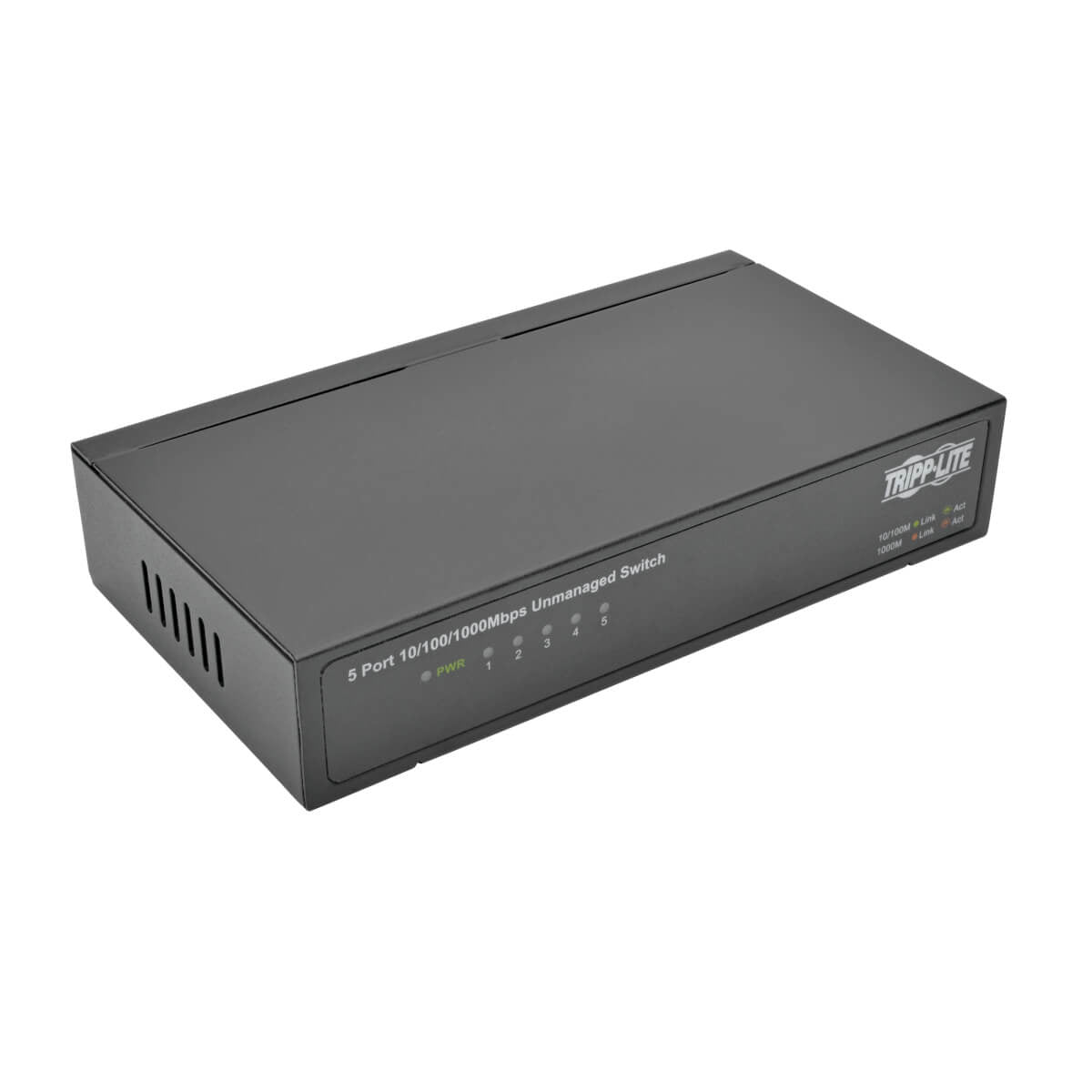

NG5 - Tripp Lite 5-PORT GIGABIT ETHERNET SWITCH DESKTOP METAL UNMANAGED SWITCH

The NG5 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch adds 10/100/1000 Mbps Ethernet capacity to your home office, small office, workgroup or creative production environment. Share large bandwidth-intensive files, such as CAD drawings and videos, at Gigabit speeds, improving efficiency and cutting costly downtime. This desktop switch features five twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. No configuration is required, so you can have your Gigabit network up and running immediately. Easy-to-read LEDs indicate connection and activity status for each port. IEEE 802.3x flow control allows smooth transmission of large files. The NG5 supports IEEE 802.3az Energy Efficient Ethernet standards by putting unused ports into a low-power state without interrupting network connections. It consumes very little input power—just a single watt. The detachable five-foot input cord with NEMA 1-15P plug connects to a protected UPS, generator or mains input AC source. The heavy-duty metal housing includes keyhole tabs for optional wall-mounting. Features Unmanaged Network Switch for Home/Small Offices or Workgroups - 5 twisted-pair RJ45 Gigabit Ethernet ports - Auto-negotiable 10/100/1000 Mbps - Automatic MDI/MDIX cross-over detection - 10 Gbps switching capacity (2 Gbps per port with full duplex) - Easy-to-read LEDs indicate connection and activity status for each port - Supports 9k jumbo frames - Supports MAC address auto-learning and auto-aging - Supports 802.3x flow control (full duplex) and back pressure (half duplex) Compliant with IEEE 802.3az Energy Efficient Ethernet Standards - Automatically shifts unused ports to low-power state without interrupting network connection - Consumes very little input power—just 1W - Also meets IEEE 802.3ab, 802.3i, 802.3u and 802.3 standards Heavy-Duty Metal Housing - Fanless design for silent operation - Detachable 5 ft. AC power cord with NEMA 1-15P plug - Plug-and-play—no configuration necessary - Keyhole tabs for optional wall-mounting Package Includes - NG5 5-Port 10/100/1000 Mbps Desktop Gigabit Ethernet Unmanaged Switch - External power supply w/NEMA 1-15P plug and 5 ft. cord - Owner’s manual



Specification:



Performance
Stackable	No
Plug and Play	Yes
Harmonized System (HS) code	8517.62.0020
Technical details
Product colour	Black
Stackable	No
Housing material	Plastic
Rack mounting	No
Master (outer) case GTIN (EAN/UPC)	10037332194760
Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Jumbo frames support	Yes
Design
Country of origin	China
Product colour	Black
Stackable	No
LED indicators	Power
Housing material	Plastic
Rack mounting	No
Indication
LED indicators	Power
Power
Output voltage	5 V
AC input voltage	100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	2.58" (65.5 mm)
Depth	4.96" (126 mm)
Height	0.87" (22.1 mm)
Weight	3.17 oz (90 g)
Packaging data
Package width	3" (76.2 mm)
Package depth	5.2" (132.1 mm)
Package height	3.1" (78.7 mm)
Package weight	6.35 oz (180 g)
Manual	Yes
Cables included	AC
Logistics data
Master (outer) case width	16.3" (414 mm)
Master (outer) case length	17" (431.8 mm)
Master (outer) case height	11.2" (284.5 mm)
Master (outer) case gross weight	26.7 lbs (12.1 kg)
Products per master (outer) case	50 pc(s)
Harmonized System (HS) code	8517.62.0020
Packaging content
Manual	Yes
Cables included	AC
Other features
Country of origin	China
