NGI-M05-C1 - Tripp Lite INDUSTRIAL GBE SWITCH 5-PORT MANAGED SFP

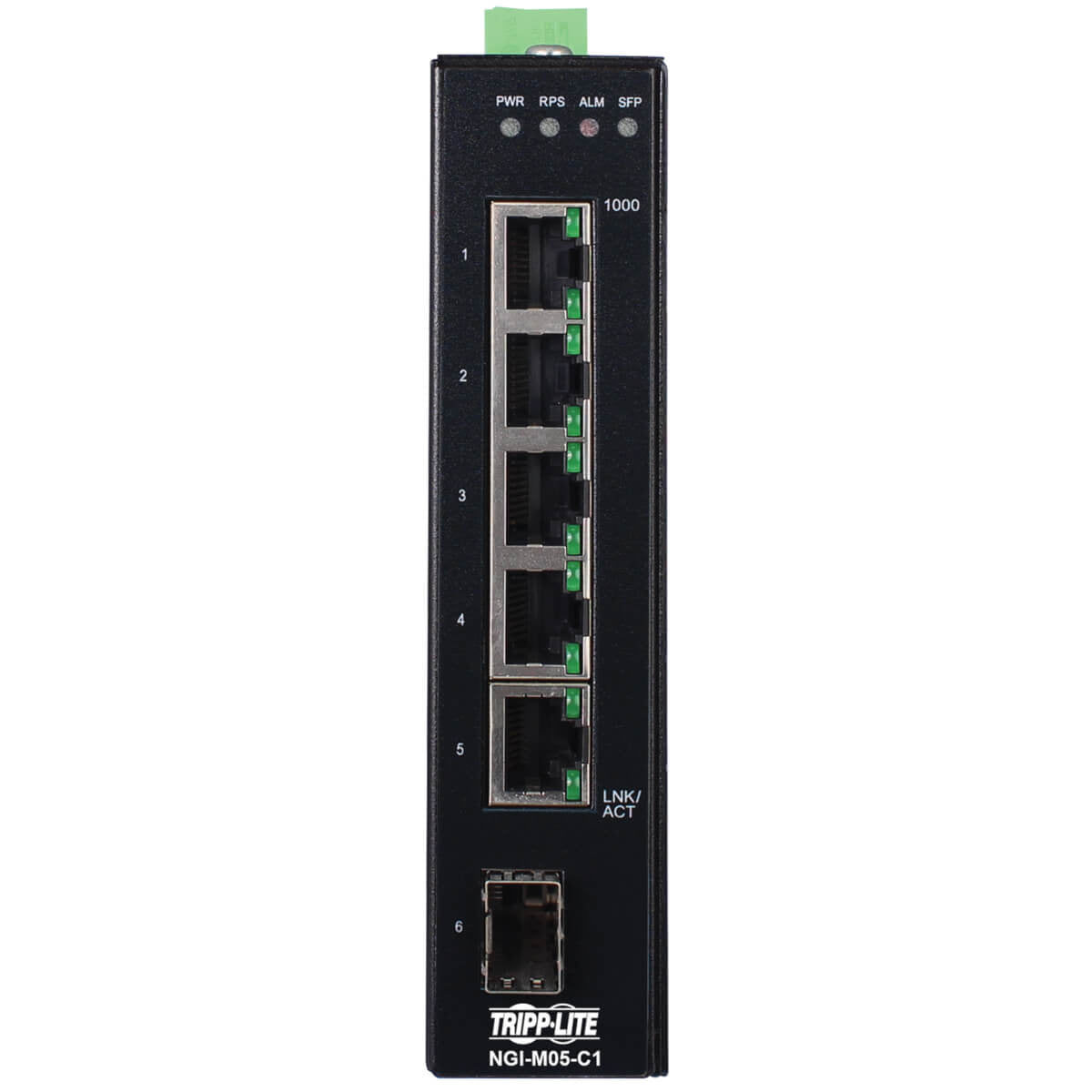

5-Port Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-M05-C1 also features a GbE SFP slot for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. Protective Metal Housing Built to Last in Harsh Environments The compact NGI-M05-C1 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, government, military, oil and gas, mining and outdoor applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit). Monitors and Controls Devices via CLI and Web Configuration The NGI-M05-C1 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping, SFP DDMI and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files. Works with the Most Popular Web Browsers The NGI-M05-C1 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-M05-C1 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only). Pre-Installed DIN Rail Clip Allows for Convenient Installation The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 20–57VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs. TAA-Compliant for GSA Schedule Purchases The NGI-M05-C1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.



Specification:



Management features
Reset button	Yes
Switch type	Managed
Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	2
Power connector	Terminal block (6-pin)
Performance
Auto-negotiation	Yes
Harmonized System (HS) code	8517.62.0020
Power
Power connector	Terminal block (6-pin)
Power supply included	Yes
Power consumption (typical)	11 W
Input current	0.4 A
DC input voltage	20 - 48 V
Technical details
Product colour	Black
Housing material	Aluminum
Sustainability certificates	CE, REACH, RoHS
Master (outer) case GTIN (EAN/UPC)	10037332266603
Network
MAC address auto-learning supported	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Optical fiber
Fiber ethernet cabling technology	100BASE-FX, 1000Base-X
Data transmission
Jumbo frames	10000
MAC address table	8000 entries
Switching capacity	12 Gbit/s
Jumbo frames support	Yes
Security
Security algorithms	SNMP
DHCP features	DHCP snooping
Certificates
Certification	FCC, TAA
Design
Reset button	Yes
Country of origin	Taiwan
DIN rail mounting	Yes
Product colour	Black
LED indicators	Yes
Housing material	Aluminum
Certification	FCC, TAA
Indication
LED indicators	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 78740.2" (0 - 2000 m)
Weight & dimensions
Width	1.97" (50 mm)
Depth	4.57" (116.1 mm)
Height	3.94" (100.1 mm)
Weight	19.8 oz (560 g)
Packaging data
Package width	9.17" (232.9 mm)
Package depth	7.2" (182.9 mm)
Package height	2.44" (62 mm)
Package weight	24.7 oz (700 g)
Sustainability
Sustainability certificates	CE, REACH, RoHS
Logistics data
Master (outer) case width	13.6" (344.9 mm)
Master (outer) case length	15.4" (389.9 mm)
Master (outer) case height	10.2" (260.1 mm)
Master (outer) case gross weight	17.1 lbs (7.76 kg)
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	8517.62.0020
Other features
Ethernet LAN data rates	10,100,1000 Mbit/s
Country of origin	Taiwan
