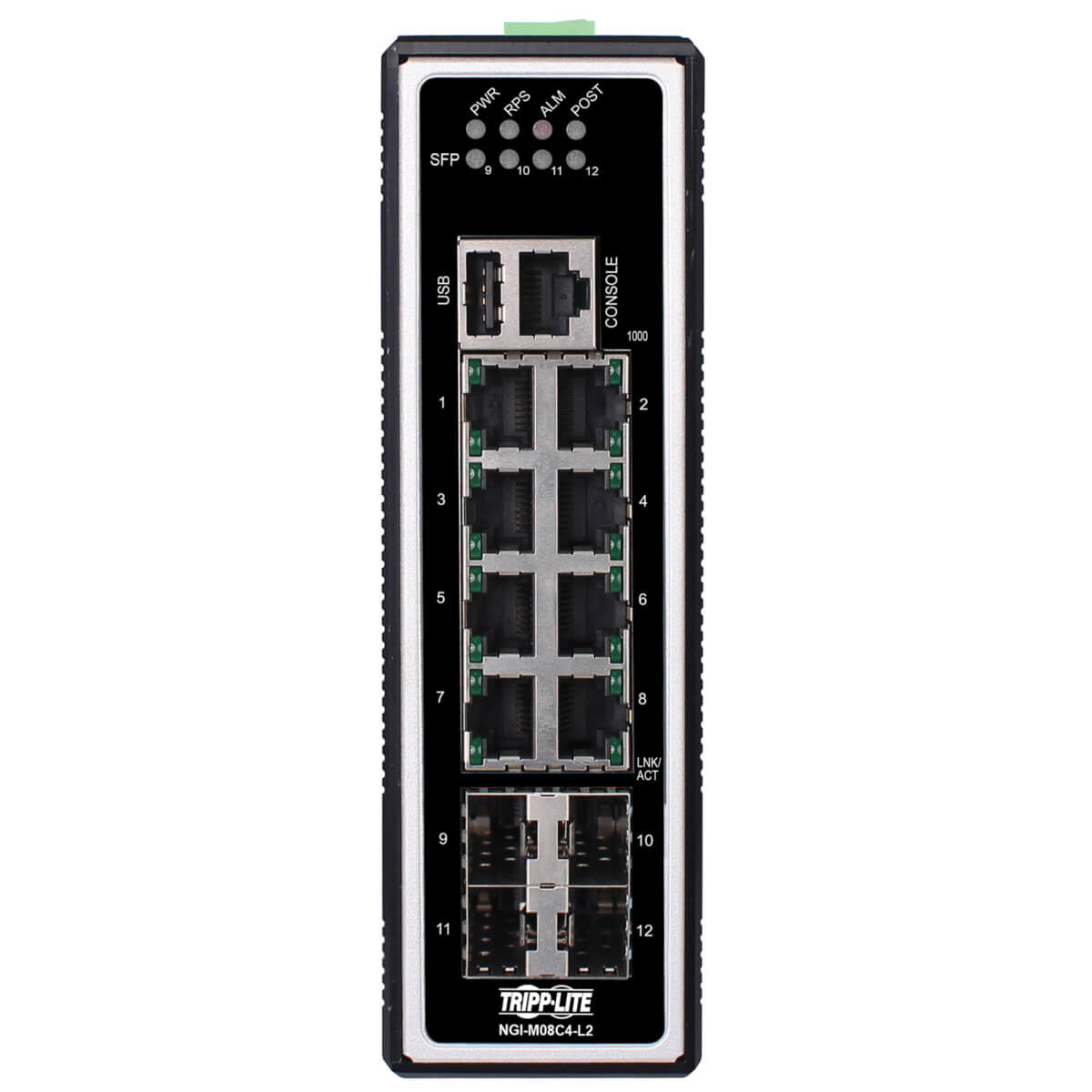

NGI-M08C4-L2 - Tripp Lite INDUSTRIAL GBE SWITCH 8PORT MANAGED 4SFP

8-Port Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-M08C4-L2 also features four GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. Protective Metal Housing Built to Last in Harsh Environments The compact NGI-M08C4-L2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, government, military, oil and gas, mining, factory and warehouse applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit). Monitors and Controls Devices via CLI and Web Configuration The NGI-M08C4-L2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping, SFP DDMI and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files. The switch automatically shifts unused ports to an energy-saving state without interrupting network connection. Pre-Loaded with Standard Layer 2 Network Management Software This switch supports IGMP snooping in IPv4 to limit the flooding of multicast traffic by dynamically configuring Layer 2 interfaces. Multicast traffic is forwarded only to those interfaces associated with IP multicast devices. Works with the Most Popular Web Browsers The NGI-M08C4-L2 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-M08C4-L2 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only). Pre-Installed DIN Rail Clip Allows for Convenient Installation The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 12–60VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs. TAA-Compliant for GSA Schedule Purchases The NGI-M08C4-L2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.



Specification:



Performance
Stackable	No
Auto-negotiation	Yes
Harmonized System (HS) code	8517.62.0020
Fanless	Yes
Power
Power connector	Terminal block (6-pin)
Power consumption (max)	258 W
Power supply included	No
Power consumption (typical)	18 W
Input current	6 A
DC input voltage	24 - 57 V
Technical details
Product colour	Black
Stackable	No
Housing material	Aluminum
Rack mounting	Yes
Sustainability compliance	Yes
Sustainability certificates	CE, RoHS, REACH
Master (outer) case GTIN (EAN/UPC)	10037332266955
Management features
Switch type	Managed
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity	4
Power connector	Terminal block (6-pin)
Network
MAC address auto-learning supported	Yes
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
10G support	Yes
Auto-negotiation	Yes
Data transmission
Jumbo frames	10000
MAC address table	16000 entries
Switching capacity	24 Gbit/s
Jumbo frames support	Yes
Design
Country of origin	Taiwan
DIN rail mounting	Yes
Product colour	Black
Stackable	No
LED indicators	Activity, Link, Power, Power fail
Housing material	Aluminum
Rack mounting	Yes
Indication
LED indicators	Activity, Link, Power, Power fail
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	240 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 78740.2" (0 - 2000 m)
Weight & dimensions
Width	1.97" (50 mm)
Depth	4.72" (119.9 mm)
Height	6.3" (160 mm)
Weight	34.6 oz (980 g)
Packaging data
Rack mount kit	Yes
Package width	9.17" (232.9 mm)
Package depth	7.2" (182.9 mm)
Package height	2.44" (62 mm)
Package weight	2.62 lbs (1.19 kg)
Sustainability
Sustainability compliance	Yes
Sustainability certificates	CE, RoHS, REACH
Logistics data
Master (outer) case width	13.1" (334 mm)
Master (outer) case length	15.1" (384 mm)
Master (outer) case height	10.2" (260.1 mm)
Master (outer) case gross weight	28 lbs (12.7 kg)
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	8517.62.0020
Packaging content
Rack mount kit	Yes
Other features
Country of origin	Taiwan
