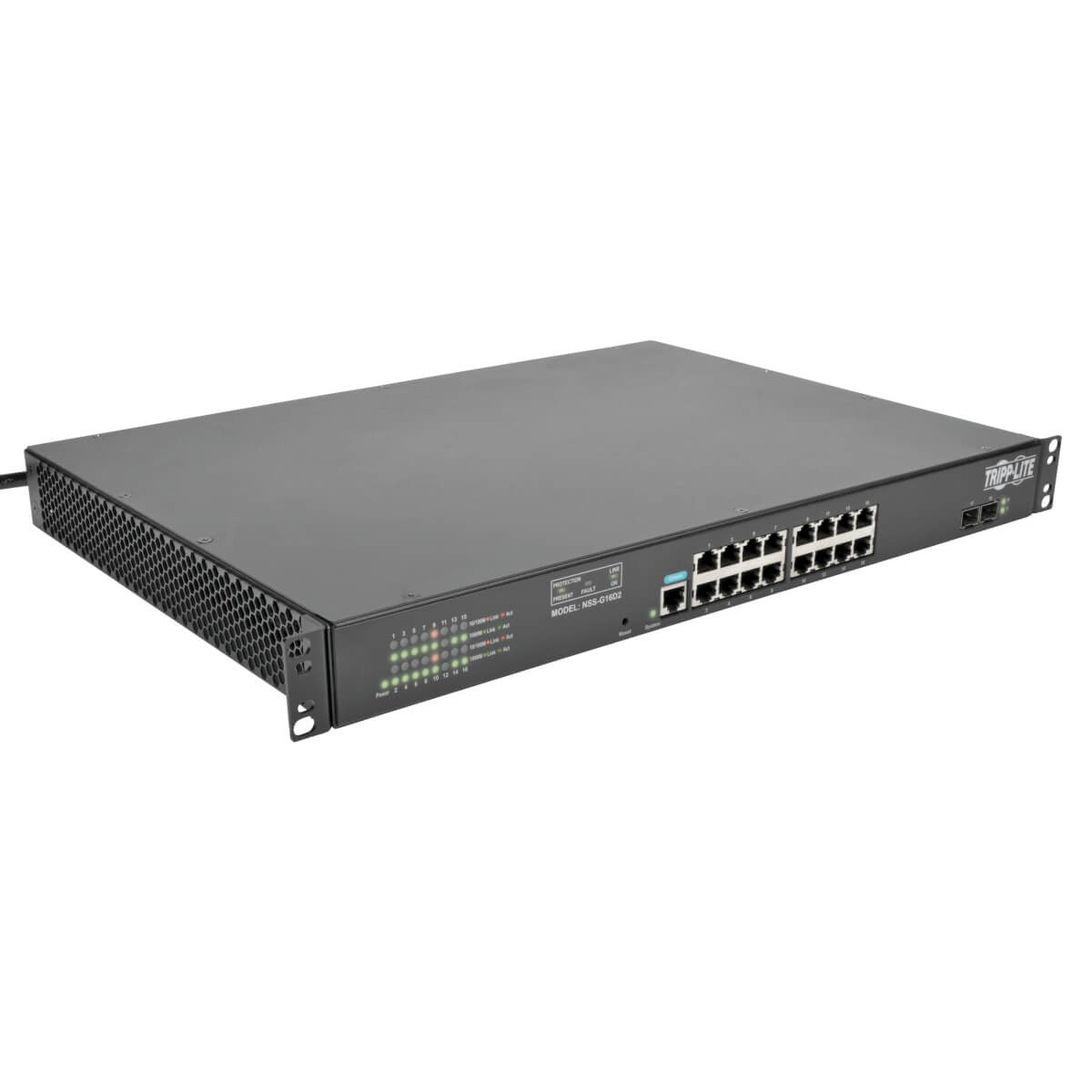

NSS-G16D2 - Tripp Lite 16 10/100/1000MBPS PORT GIGABIT L2 MANAGED SWITCH, 2 COMBO GIGABIT SFP SLOTS, 36

Combines a fully managed 16-port Gigabit network switch with a basic PDU with Isobar Surge Suppression in one space-saving 1U rack-mount unit. Ideal for monitoring and controlling a LAN and powering and protecting equipment in a small-to-medium distributed network. - IP-MAC-Port-Binding, ACL, Storm Control - Port Security, DHCP Snooping, 802.1x, L2 - WEB/CLI management, SNMP, RMON features - 16 ports and 2 dedicated Mini-GBIC SFP slots - Enterprise-level, security and layer 2 management - Cost-effective form factor for small and medium businesses - Built-in 8-outlet PDU - 3860 Joule suppression rating, Diagnostic LEDs The energy-efficient NSS-G16D2 16-Port Gigabit L2 Managed Network Switch does more than complete your home or office LAN. It also features a basic 120V 15A PDU to distribute reliable AC power to critical IT equipment in your wiring closet, server room or equipment rack. Two dedicated mini-GBIC SFP ports are also included for uplinking data to other switches via optical fiber or copper. This switch features 16 twisted-pair RJ45 Gigabit Ethernet ports that support auto-negotiable 10/100/1000 Mbps and auto MDI/MDIX cross-over detection functions for convenient plug-and-play capability. Easy-to-read LEDs indicate connection and activity status for each port. Built-in management software lets you monitor and control each connected device via secure web-based interface. Each port supports up to 2 Gbps with full duplex. The rear panel contains eight NEMA 5-15R outlets that supply continuous power to connected devices. Your equipment is protected by 3860 joules of surge suppression, as well as front-panel LEDs that let you monitor line status at a glance. A 12A circuit breaker trips if the current drawn by connected equipment exceeds the PDU’s maximum load rating. The NSS-G16D2 supports IEEE802.3az Energy Efficient Ethernet standards. The heavy-duty metal housing mounts into 1U of an EIA-standard 19-inch rack using the included hardware. The six-foot input cord with NEMA 5-15P plug connects to a protected UPS, generator or mains input AC source.



Specification:



Management features
Reset button	Yes
Switch type	Managed
Web-based management	Yes
Switch layer	L2
Virtual LAN features
VLAN support	Yes
Power
Power connector	DC-in jack
AC input voltage	100 - 127 V
Technical details
Form factor	1U
Product colour	Black
Rack mounting	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	2
Console port	RJ-45
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Jumbo frames	10000
MAC address table	16000 entries
Switching capacity	52 Gbit/s
Jumbo frames support	Yes
Security
IP-MAC-Port binding	Yes
Security algorithms	SNMP
Access Control List (ACL)	Yes
DHCP features	DHCP client
Certificates
Certification	RoHS, UL 60950-1, UL 1449, CAN/CSA-C22.2 No. 60950-1, FCC Part 15 Class A, REACH, NOM
Design
Reset button	Yes
Country of origin	China
Form factor	1U
Product colour	Black
LED indicators	Yes
Certification	RoHS, UL 60950-1, UL 1449, CAN/CSA-C22.2 No. 60950-1, FCC Part 15 Class A, REACH, NOM
Rack mounting	Yes
Performance
Harmonized System (HS) code	8517.62.0020
Indication
LED indicators	Yes
Operational conditions
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Width	17.3" (439.9 mm)
Depth	12.4" (315 mm)
Height	1.71" (43.4 mm)
Weight	8.75 lbs (3.97 kg)
Packaging data
Mounting brackets included	Yes
Package width	17" (431.8 mm)
Package depth	20.4" (518.2 mm)
Package height	4.6" (116.8 mm)
Package weight	11.5 lbs (5.22 kg)
Manual	Yes
Logistics data
Master (outer) case width	17" (431.8 mm)
Master (outer) case length	20.4" (518.2 mm)
Master (outer) case height	4.6" (116.8 mm)
Master (outer) case gross weight	11.5 lbs (5.22 kg)
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	8517.62.0020
Packaging content
Mounting brackets included	Yes
Manual	Yes
Other features
Country of origin	China
