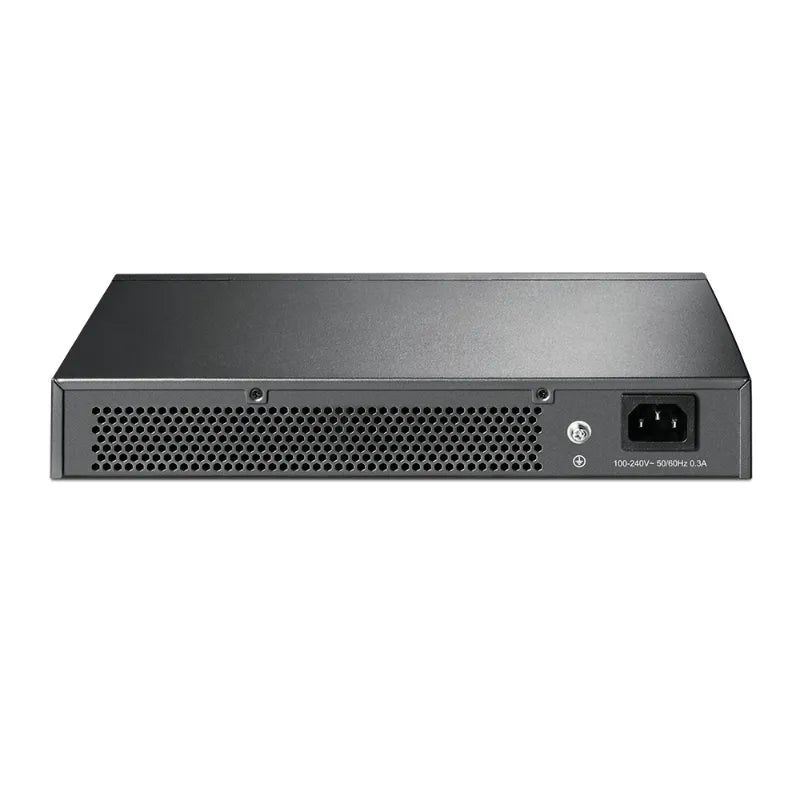

The TL-SG1016D 16-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save up to 40% of the power consumption, making it an eco-friendly solution for your business network.
Gigabit Switch Featured with 16 10/100/1000Mbps ports, TL-SG1016D greatly expands your network capacity, enabling instant large files transferring. So，power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
GO GREEN WITH YOUR ETHERNET You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1016D 16-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
Power Budget According to Cable Length Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1016D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.
Easy to Use The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Features - Innovative energy-efficient technology saves power up to 40%; - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode; - Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput; - 32Gbps Switching Capacity; - 10K Jumbo frame improves performance of large data transfers; - Auto-MDI/MDIX eliminates the need for crossover cables; - Supports MAC address auto-learning and auto-aging; - Store and forward Switching scheme; - Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware; - Desktop and Rack-mountable design; - Plug and Play design simplifies installation.
Specification:
| Network |
|---|
| IGMP snooping |
Yes |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Number of VLANs |
32 |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
32 |
| Data transmission |
|---|
| Number of VLANs |
32 |
| Jumbo frames |
9000 |
| Throughput |
23.8 Mpps |
| Packet buffer memory |
0.5 MB |
| MAC address table |
8000 entries |
| Switching capacity |
32 Gbit/s |
| Store-and-forward |
Yes |
| Number of queues |
4 |
| Jumbo frames support |
Yes |
| Performance |
|---|
| Packet buffer memory |
0.5 MB |
| Harmonized System (HS) code |
85176990 |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| Management features |
|---|
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Security |
|---|
| IGMP snooping |
Yes |
| Certificates |
|---|
| Certification |
FCC, CE, RoHS |
| Memory |
|---|
| Packet buffer memory |
0.5 MB |
| Design |
|---|
| Product colour |
Black |
| LED indicators |
Yes |
| Certification |
FCC, CE, RoHS |
| Rack mounting |
Yes |
| Indication |
|---|
| LED indicators |
Yes |
| Power |
|---|
| Power consumption (max) |
11.73 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
11.6" (294 mm) |
| Depth |
7.09" (180 mm) |
| Height |
1.73" (44 mm) |
| Packaging data |
|---|
| Rack mount kit |
Yes |
| User guide |
Yes |
| Cables included |
AC |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| User guide |
Yes |
| Cables included |
AC |
