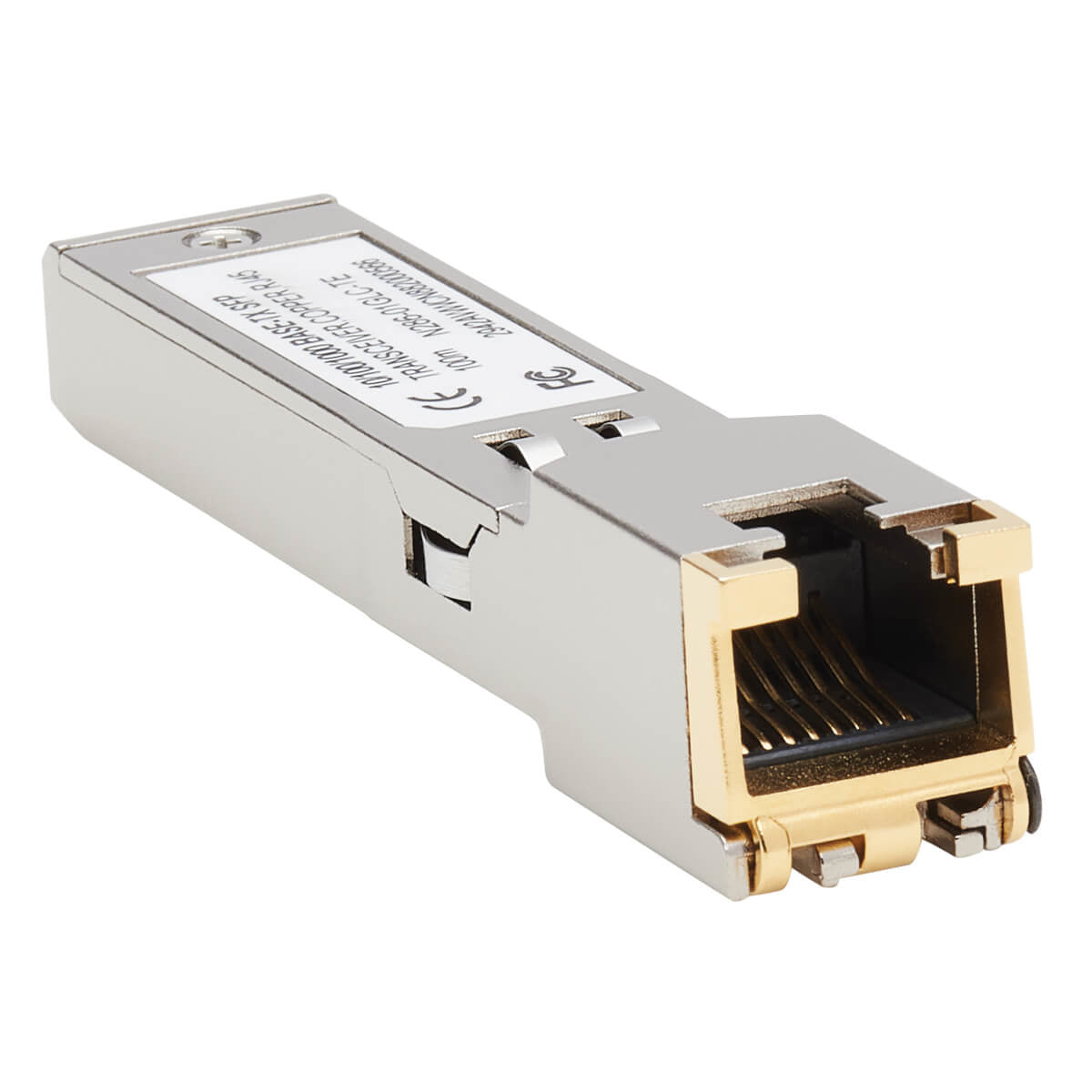

N286-01GLC-TE - Tripp Lite CISCO-COMPATIBLE GLC-TE SFP TRANSCEIVER - 10/100/1000BASE-TX, COPPER, RJ45, CAT6

SFP Transceiver for Connecting Copper Cabling to Your Cisco Network Switch or Router This SFP transceiver allows you to connect a copper Cat6 cable to a 10/100/1000 Mbps fiber network router, server or switch. It transmits data up to 328.08-ft. (100 m) and supports bi-directional Gigabit Ethernet communication up to 1.25 Gbps. Functionally Equivalent to Cisco GLC-TE Transceiver Module The MSA-compliant N286-01GLC-TE functions just like the equivalent Cisco GLC-TE transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the GLC-TE. Hot-Swappable for Installation Without Network Interruption This input/output device is fully hot-swappable, so you can install it without a potentially costly 10/100/1000 Mbps network shutdown or device reboot. Just plug the SFP end of the transceiver into your Cisco network device. The other end has an RJ45 connector to link with high-speed Cat6 patch cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device. Premium Features for Superior Performance The auto-sensing RJ45 port supports auto-negotiation and automatic MDI/MDI-X crossover to match the other end of the connection. The transceiver's zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.



Specification:



Network
SFP transceiver type	Fiber optic
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
Fiber optic connector	LC
Cabling technology	1000Base
Performance
Country of origin	China
Easy to install	Yes
Product colour	Metallic
SFP transceiver type	Fiber optic
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
Fiber optic connector	LC
Maximum transfer distance	393700.8" (10000 m)
Wavelength	1310 nm
Fiber cable diameters supported (core/cladding)	9/125 µm
Cabling technology	1000Base
Single-mode fiber (SMF) supported	Yes
Harmonized System (HS) code	8517.62.0090
Features
Country of origin	China
Easy to install	Yes
Product colour	Metallic
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Width	0.52" (13.2 mm)
Depth	2.24" (56.9 mm)
Height	0.331" (8.4 mm)
Weight	0.705 oz (20 g)
Package depth	1.77" (45 mm)
Package width	4.49" (114 mm)
Package height	0.85" (21.6 mm)
Package weight	1.06 oz (30 g)
Packaging data
Package depth	1.77" (45 mm)
Number of products included	1 pc(s)
Package width	4.49" (114 mm)
Package height	0.85" (21.6 mm)
Package weight	1.06 oz (30 g)
Technical details
Sustainability certificates	RoHS
Master (outer) case GTIN (EAN/UPC)	10037332197433
Packaging content
Number of products included	1 pc(s)
Logistics data
Master (outer) case width	9.06" (230.1 mm)
Master (outer) case length	5.12" (130 mm)
Master (outer) case height	2.95" (74.9 mm)
Master (outer) case gross weight	15.2 oz (430 g)
Products per master (outer) case	10 pc(s)
