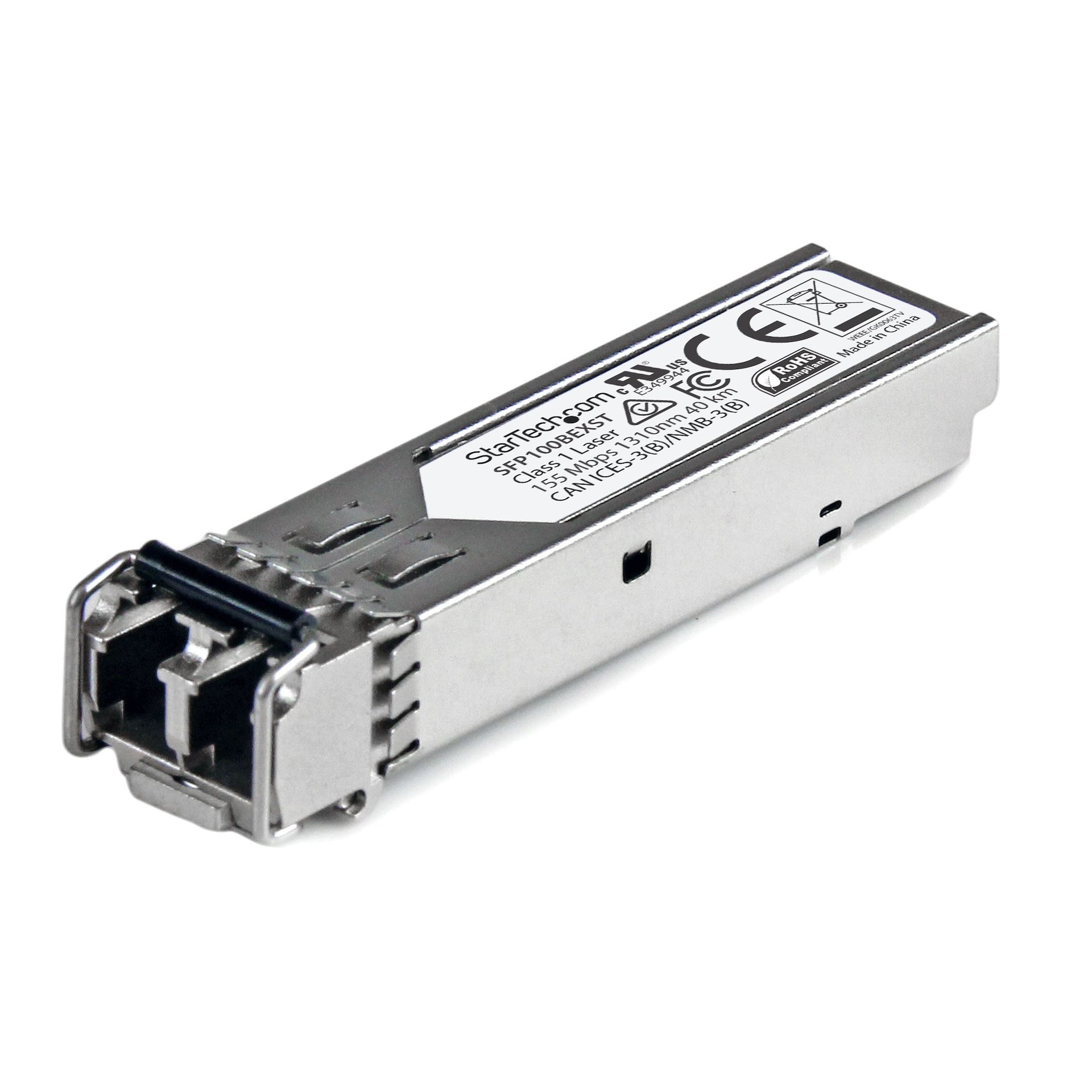

SFP100BEXST - StarTech.com MSA UNCODED SFP - 100BASE-EX 100MBPS - 100MBE MODULE - 100MB ETHERNET SFP 1310NM

100 Mbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

The SFP100BEXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-EX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 40 km (24.8 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.

Technical Specifications:

Wavelength: 1310nm

Maximum Data Transfer Rate: 155 Mbps

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 40 km (24.8 mi)

Power Consumption: Less than 1 Watt

DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

- 100% MSA UNCODED SFP TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 100MbE connectivity
- TECHNICAL SPECS: 100BASE-EX
- 100Mbps



Specification:



Network
SFP transceiver type	Fiber optic
Interface type	SFP
Maximum data transfer rate	155 Mbit/s
Fiber optic connector	LC
Networking standards	IEEE 802.3u
Performance
Product colour	Silver
Housing material	Aluminum
Hot-Plug support	Yes
SFP transceiver type	Fiber optic
Wavelength-division multiplexing (WDM)	No
Digital Diagnostics Monitoring (DDM)	Yes
Interface type	SFP
Maximum data transfer rate	155 Mbit/s
Fiber optic connector	LC
Networking standards	IEEE 802.3u
Maximum transfer distance	78740.2" (2000 m)
Wavelength	1310 nm
Duplex system	Full, Half
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	FX
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Housing material	Aluminum
Hot-Plug support	Yes
Certification	CE, FCC, UR
Power
Power consumption (typical)	1 W
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	0.547" (13.9 mm)
Depth	2.3" (58.4 mm)
Height	0.496" (12.6 mm)
Weight	0.705 oz (20 g)
Package depth	4.72" (120 mm)
Package width	3.54" (90 mm)
Package height	1.18" (30 mm)
Package weight	1.69 oz (48 g)
Packaging data
Package depth	4.72" (120 mm)
Number of products included	1 pc(s)
Package width	3.54" (90 mm)
Package height	1.18" (30 mm)
Package weight	1.69 oz (48 g)
Technical details
Sustainability certificates	RoHS
Certificates
Certification	CE, FCC, UR
Packaging content
Number of products included	1 pc(s)
Logistics data
Master (outer) case width	12.2" (310 mm)
Master (outer) case length	15.7" (400 mm)
Master (outer) case height	12.5" (317 mm)
Products per master (outer) case	80 pc(s)
