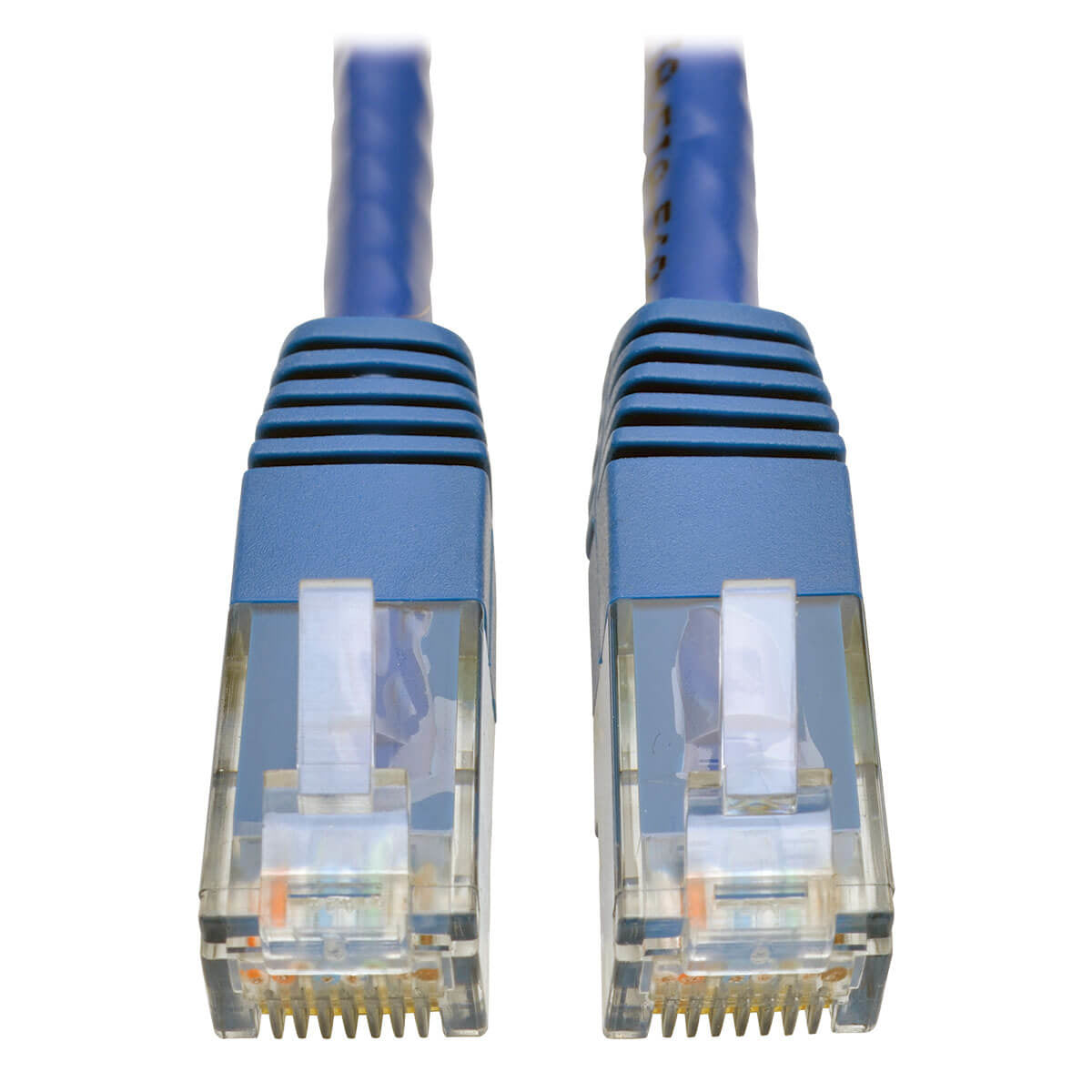

N200-035-BL - Tripp Lite CAT6 CAT5E GIGABIT MOLDED PATCH CABLE RJ45 M/M 550MHZ BLUE 35FT

The N200-035-BL Cat6 Gigabit Molded Patch Cable ensures ultra-fast performance throughout your Cat5/5e/6 network application. It connects high-speed network components like computers, printers, video game systems, Blu-ray players, copy machines, routers and modems in a home or office Cat5/5e/6 application. This 35-ft. (10.67 m) blue cable is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications. Manufactured from 24 AWG 4-pair solid UTP with a PVC jacket, staggered-pin plug design and male RJ45 connectors, each cable provides high-speed connections up to 550 MHz/1 Gbps and flawless signal delivery, while keeping near-end crosstalk levels to a minimum. The N200-035-BL is constructed of top-quality materials for long life and durability. Corrosion-resistant gold-plated copper contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11). The Ideal Solution for All High-Speed Cat5/5e/6 Networking Connects high-speed network components, such as computers, printers, video game systems, Blu-ray players, copy machines, routers and modems Designed for 1000Base-T, 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications Recommended for home or office applications Provides high-speed connections up to 550 MHz/1 Gbps Flawless signal delivery with minimal near-end crosstalk levels Premium Construction Ensures Error-Free Signal Transfer Manufactured from 24 AWG 4-pair solid UTP with staggered-pin plug design Molded RJ45 connectors and gold-plated copper contacts for maximum conductivity and minimum data loss Integral strain relief protects cable and connectors from stress and cracking Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11)



Specification:



Technical details
Product colour	Green
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.5
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	420.5" (10.7 m)
Country of origin	China
Sustainability certificates	RoHS
Features
Product colour	Green
Country of origin	China
Frequency	550 MHz
AWG wire size	24
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3ab, IEEE 802.5
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	420.5" (10.7 m)
Harmonized System (HS) code	8544.42.2000
Connector 2 gender	Male
Connector 1 gender	Male
Packaging data
Package width	10" (254 mm)
Package depth	0.5" (12.7 mm)
Package height	12" (304.8 mm)
Package weight	15.5 oz (440 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case gross weight	9.66 lbs (4.38 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case width	18" (457.2 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	20" (508 mm)
Master (outer) case GTIN (EAN/UPC)	10037332204711
Other features
Master (outer) case GTIN (EAN/UPC)	10037332204711
