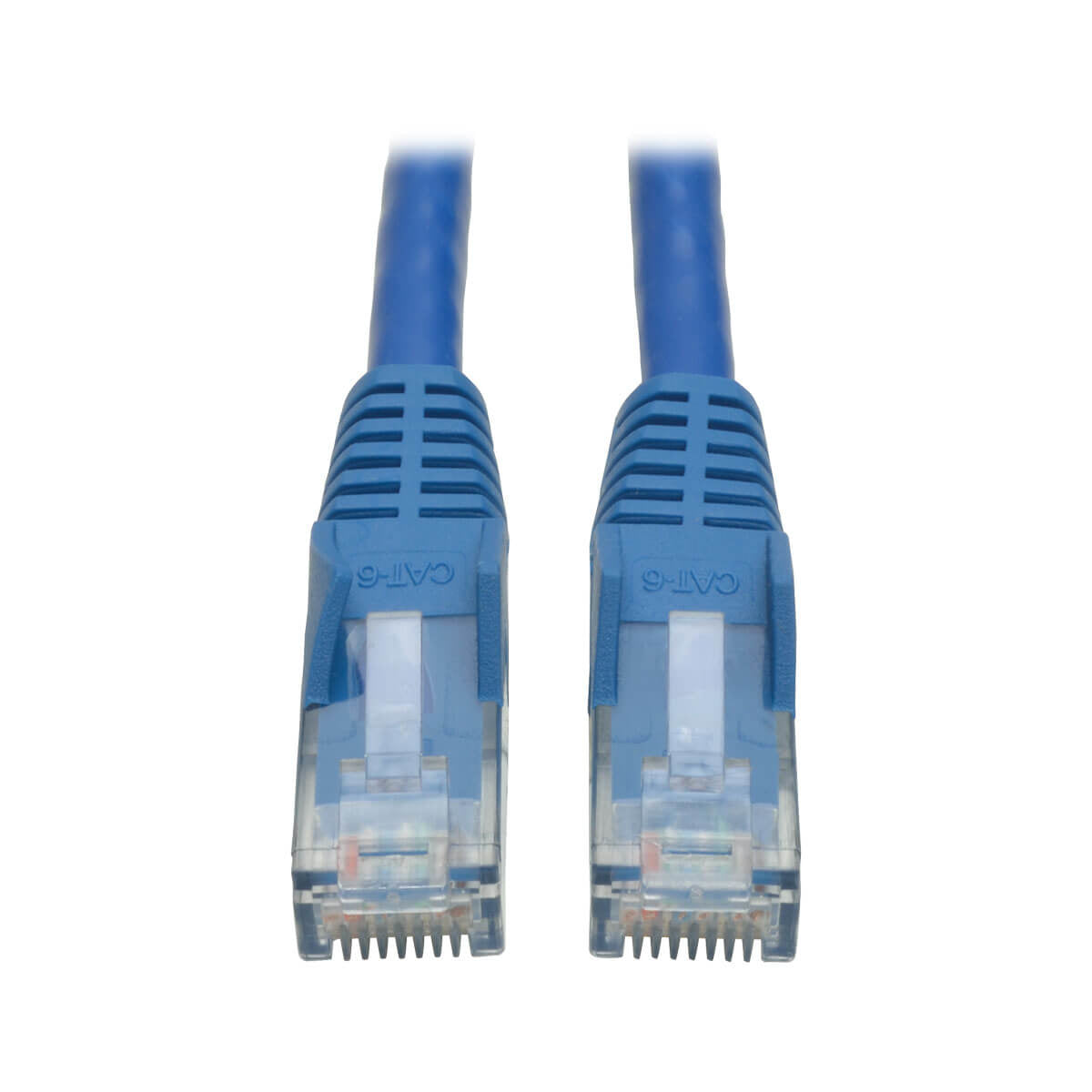

N201-001-BL50BP - Tripp Lite 1FT CAT6 GIGABIT SNAGLESS MOLDED PATCH CABLE RJ45 M/M BLUE

50 piece pack of 1-ft. Blue Cat6 patch cables Meets Category 6 cabling standards Premium cabling for Category 6, Category 5e and Category 5 applications Length: 1-ft. / Color: Blue / Connectors: RJ45 male Drastically reduce impedance & structural return loss compared to standard 100MHz wire High-quality copper wire and a staggered-pin plug design to keep near-end crosstalk levels to a minimum Feature molded connectors with integral strain relief Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation PVC 4-pair stranded UTP Deliver stable performance up to 550MHz/1 Gbps communication Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11) Available in other colors and lengths



Specification:



Technical details
Product colour	Black
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	23.6" (0.6 m)
Country of origin	China
Sustainability certificates	RoHS
Features
Product colour	Black
Country of origin	China
Frequency	550 MHz
AWG wire size	24
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	23.6" (0.6 m)
Harmonized System (HS) code	8544.42.2000
Connector 1 gender	Male
Packaging data
Package width	16" (406.4 mm)
Package depth	0.5" (12.7 mm)
Package height	18" (457.2 mm)
Package weight	4.85 lbs (2.2 kg)
Quantity per pack	50 pc(s)
Logistics data
Master (outer) case gross weight	20.7 lbs (9.4 kg)
Products per master (outer) case	4 pc(s)
Master (outer) case width	14" (355.6 mm)
Master (outer) case length	6" (152.4 mm)
Master (outer) case height	14" (355.6 mm)
Master (outer) case GTIN (EAN/UPC)	10037332191882
Other features
Master (outer) case GTIN (EAN/UPC)	10037332191882
