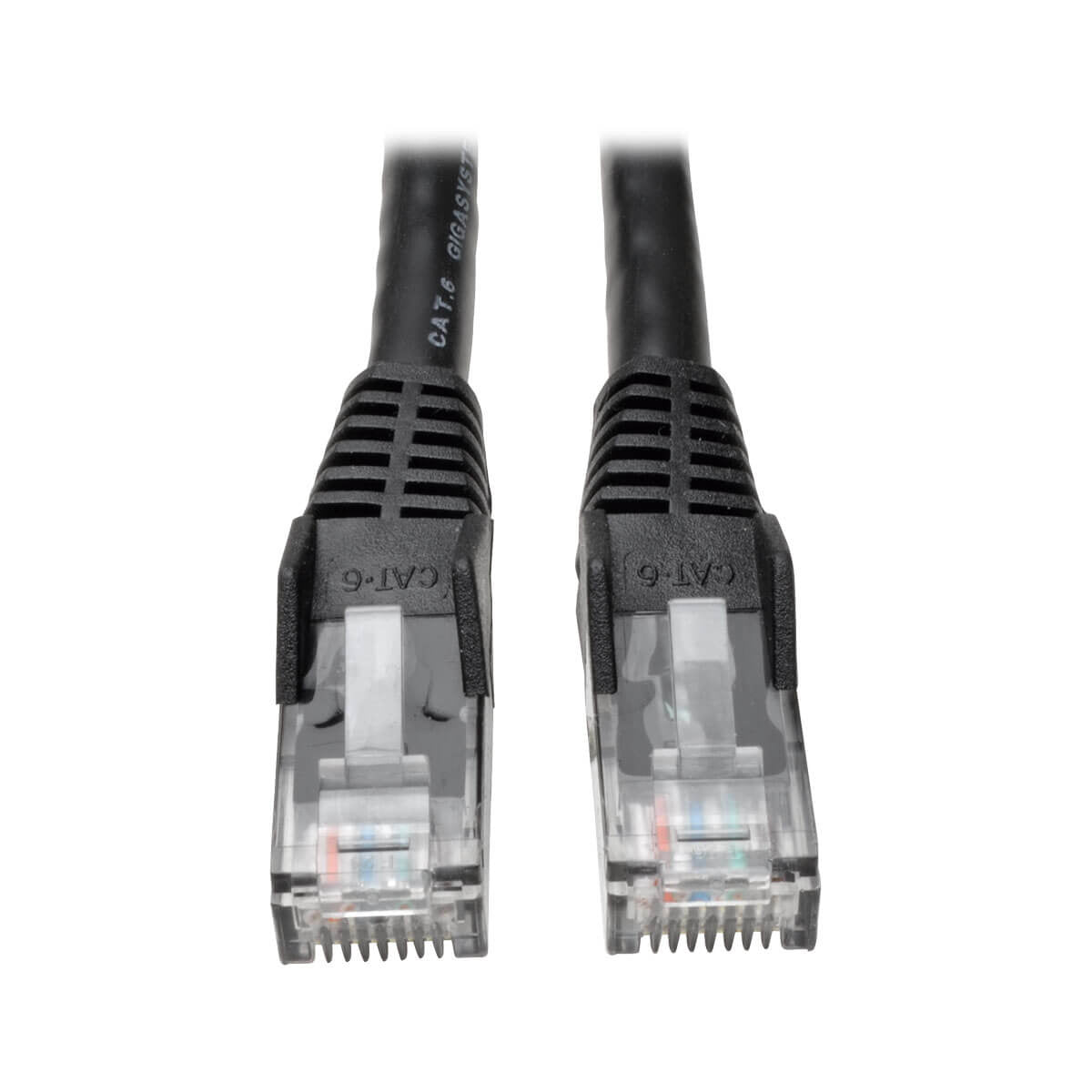

N201-030-BK - Tripp Lite 30FT CAT6 GIGABIT SNAGLESS MOLDED PATCH CABLE RJ45 M/M BLACK

Meets category 6 cabling standards. Premium cabling for category 6, category 5e and category 5 applications Length: 30-ft. (9.14 m)/Color: Black/Connectors: RJ45 male Drastically reduce impedance & structural return loss compared to standard 100MHz wire. High-quality copper wire and a staggered-pin plug design to keep near-end crosstalk levels to a minimum Feature molded connectors with integral strain relief Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation PVC 4-pair solid UTP Deliver stable performance up to 550MHz/1 Gbps communication Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11) Available in other colors and lengths



Specification:



Technical details
Product colour	Blue
Cable standard	Cat6
Connector 1	RJ-45
Connector 2	RJ-45
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Jacket material	Polyvinyl chloride (PVC)
Cable length	359.8" (9.14 m)
Country of origin	China
Sustainability certificates	RoHS
Features
Product colour	Blue
Country of origin	China
Cable standard	Cat6
Connector 1	RJ-45
Connector 2	RJ-45
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Jacket material	Polyvinyl chloride (PVC)
Cable length	359.8" (9.14 m)
Harmonized System (HS) code	8544.42.2000
Connector 2 gender	Male
Connector 1 gender	Male
Packaging data
Package width	8" (203.2 mm)
Package depth	0.5" (12.7 mm)
Package height	10" (254 mm)
Package weight	13.1 oz (370 g)
Logistics data
Master (outer) case gross weight	8.22 lbs (3.73 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case width	18" (457.2 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	20" (508 mm)
Master (outer) case GTIN (EAN/UPC)	10037332122053
Other features
Master (outer) case GTIN (EAN/UPC)	10037332122053
