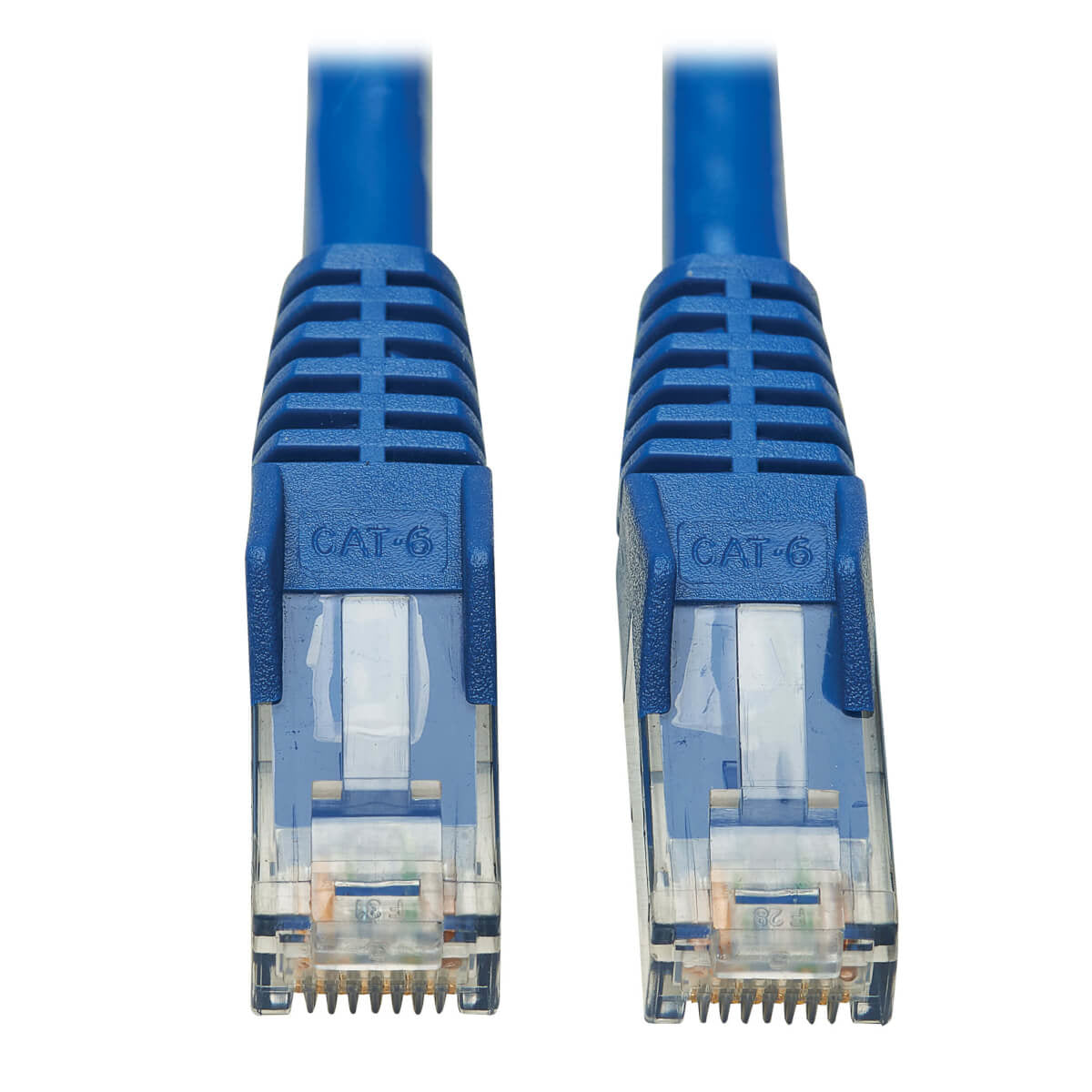

N201P-030-BL - Tripp Lite CAT6 PATCH CABLE UTP SNAGLESS W/ POE CMR-LP BLUE RJ45 M/M 30FT

Cat6 UTP Patch Cable Delivers a Fast, Clear Signal Through Your Gigabit Ethernet Network This Cat6 UTP cable with RJ45 connectors is recommended for connecting network components like printers, adapters, routers, servers, modems, hubs and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this 30-ft. (9.14 m) blue cable ensures peak performance throughout your local area network (LAN). It reduces impedance and structural return loss, compared to standard 100 MHz wire. Supports Power over Ethernet (PoE) to Cut Down on Expensive Power Supplies Because this Cat6 cable supports PoE, it can supply the power to operate compatible PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. Snagless RJ45 Male Connectors Add Extra Protection During Installation The RJ45 connectors' snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief gives the N201P-030-BL extra flexibility, reduces stress, and helps the cable move freely without cracking or breaking loose from the connector. CMR-LP Certified for Cable Installations with Increased Power Levels UL's Limited Power (LP) certification indicates the N201P-030-BL has been evaluated to handle the marked current under installation scenarios without exceeding the temperature rating of the cable. This CMR-LP-certified cable provides a simple way to prepare installations for increased power levels without having to worry about susceptible issues caused by excessive heat. Color-Coded to Avoid Misidentification That Can Cause Costly Downtime This Cat6 UTP patch cable features a blue PVC jacket. The color-coding allows easy, fast identification in a crowded rack, patch panel or workstation and helps prevent the cable from becoming inadvertently disconnected.



Specification:



Technical details
Product colour	Blue
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Data transfer rate	1000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Solid
Cable length	600" (15.2 m)
Country of origin	Taiwan
Sustainability certificates	RoHS
Features
Product colour	Blue
Snagless cable boot	Yes
Country of origin	Taiwan
Frequency	550 MHz
AWG wire size	23
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Data transfer rate	1000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Solid
Cable length	600" (15.2 m)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Harmonized System (HS) code	8544.42.2000
Connector 2 gender	Male
Connector 1 gender	Male
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Outer diameter	0.256" (6.5 mm)
Packaging data
Package width	10" (254 mm)
Package depth	0.5" (12.7 mm)
Package height	12" (304.8 mm)
Package weight	28.2 oz (800 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case gross weight	18.6 lbs (8.45 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case width	14" (355.6 mm)
Master (outer) case length	14" (355.6 mm)
Master (outer) case height	10" (254 mm)
Master (outer) case GTIN (EAN/UPC)	10037332242508
Other features
Master (outer) case GTIN (EAN/UPC)	10037332242508
