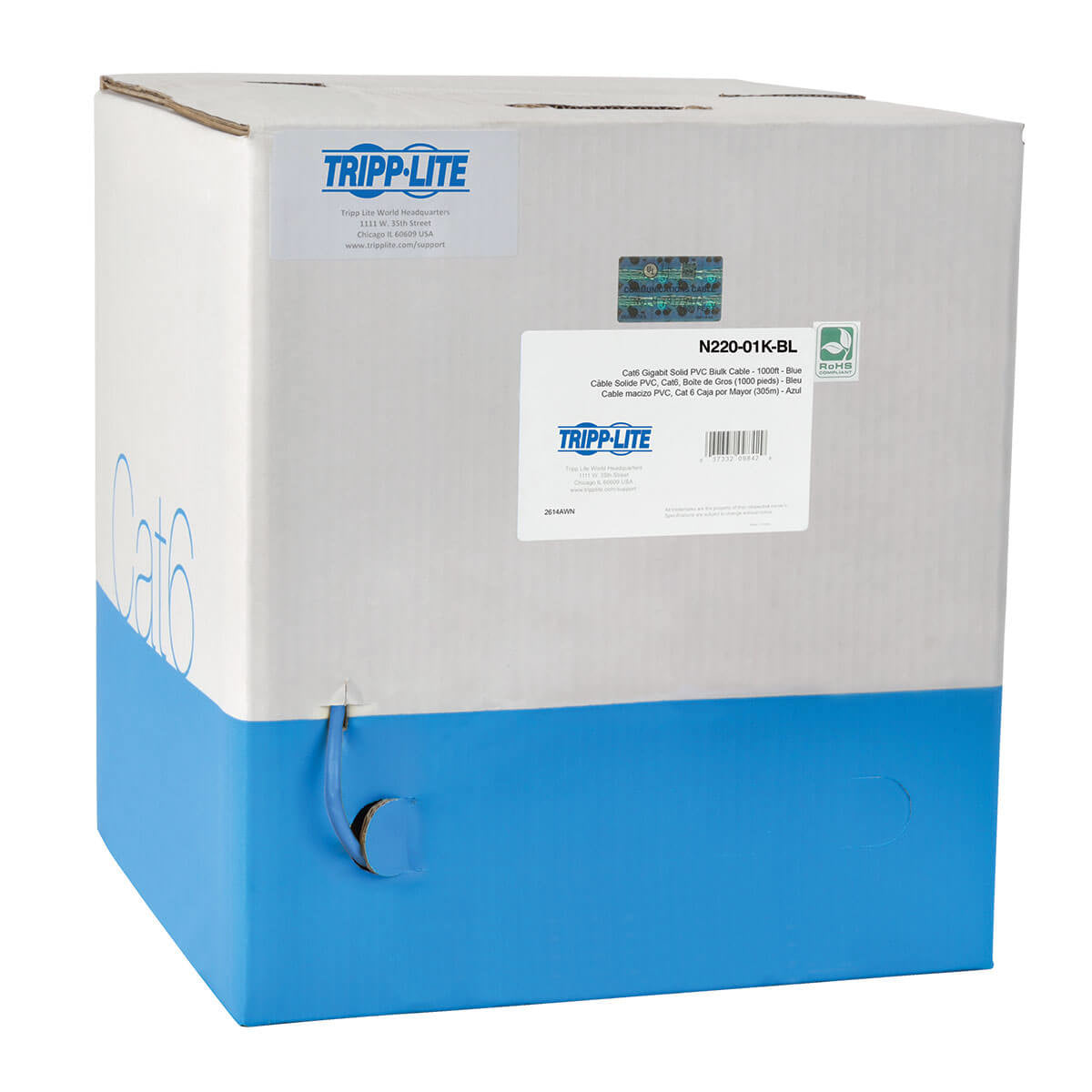

N220-01K-BL - Tripp Lite 1000FT CAT6 GIGABIT CABLE STRANDED CMR PVC 24AWG BLUE 1000

Perfect Solution for High-Speed Cat6 Premise Applications Designed for do-it-yourself custom patch cable assemblies Delivers speeds up to 250 MHz/1 Gbps No center spline and overall 0.22 in. diameter makes for easy RJ45 plug termination Reduces impedance and structural return loss compared to standard 100 MHz wire Ideal for 10/100/1000 Base-T Ethernet, 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, EIA/TIA and Token Ring Type 3 applications Premium Construction for Superior Performance Made from 24 AWG copper wire (7 x 32 AWG per conductor) 4-pair stranded UTP Minimum near-end crosstalk CMR-rated PVC jacket Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6, draft 11) TAA-Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases



Specification:



Technical details
Product colour	Gray
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	No
Connector 2	No
Connector contacts plating	Copper
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	155 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Cable length	12007.9" (305 m)
Country of origin	United States
Sustainability certificates	RoHS
Features
Product colour	Gray
Country of origin	United States
AWG wire size	24
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	No
Connector 2	No
Connector contacts plating	Copper
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	155 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Cable length	12007.9" (305 m)
Harmonized System (HS) code	8544.49.1000
Connector 2 gender	No
Connector 1 gender	No
Packaging data
Package width	13.4" (340.4 mm)
Package depth	13" (330.2 mm)
Package height	11.2" (284.5 mm)
Package weight	22.9 lbs (10.4 kg)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case GTIN (EAN/UPC)	10037332196603
Other features
Master (outer) case GTIN (EAN/UPC)	10037332196603
