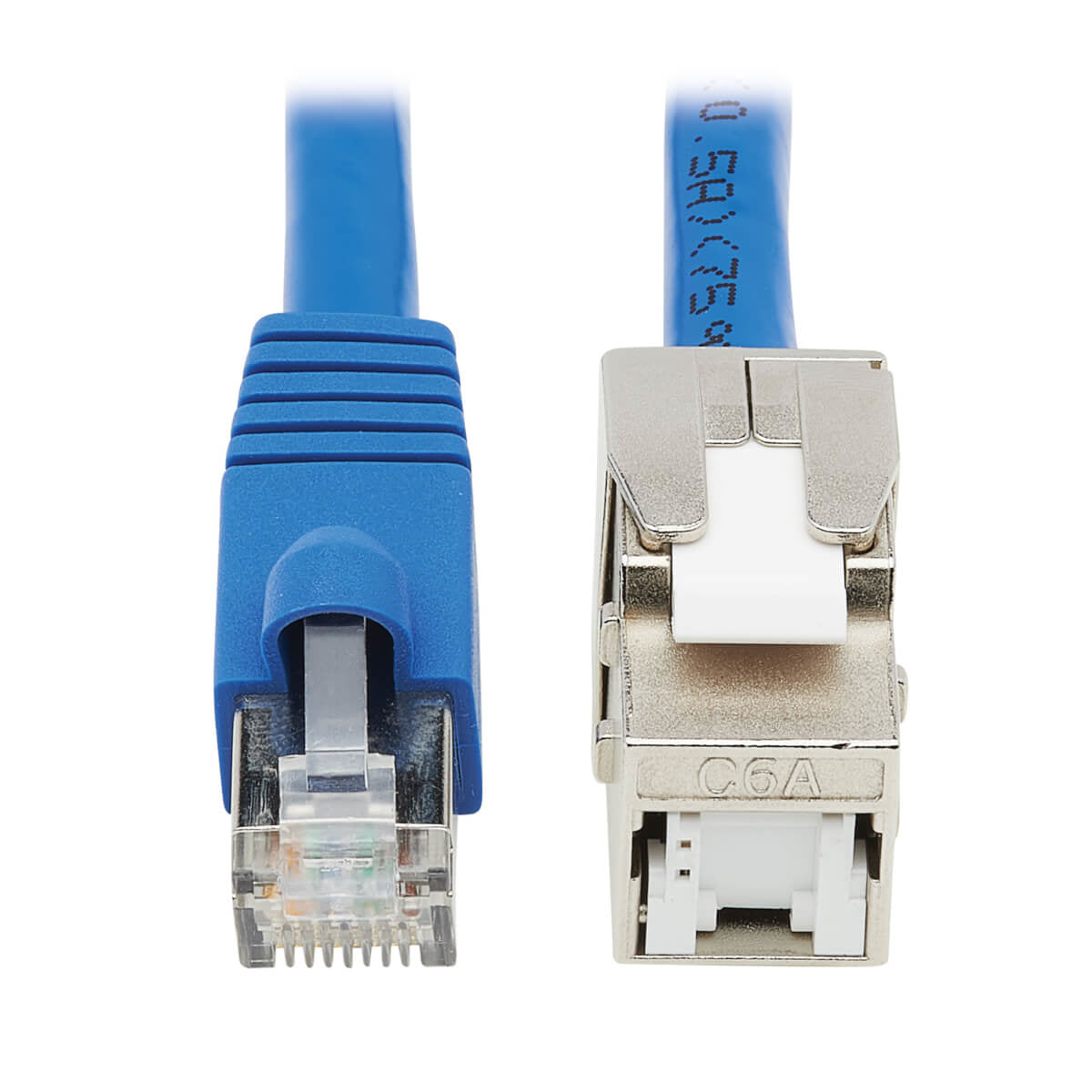

N237A-F18N-WHSH - Tripp Lite CAT6 CABLE ASSEMBLY SHIELDED M/F 18IN

Specifically Designed for Use in Surveillance and Other PoE Applications This Cat6a keystone jack assembly is recommended for above-ceiling applications where the use of wall plates is impractical or otherwise not ideal. The 18-inch cable connects your Cat6 premise wiring to an IP camera, wireless access point (WAP), LED lighting scheme, sound equipment or other PoE+ device installed high on a wall, ceiling or any other location far from a convenient power outlet. Supports Power over Ethernet to Simplify Installation and Cut Down on Expenses Because the N237A-F18N-WHSH supplies up to 24W of power to the connected PoE or PoE+ device, it saves you the expense and effort of purchasing, connecting and installing new electrical wiring, outlets and individual power supplies. CMR-LP (0.5A) Certified for Cable Installations with Increased Power Levels UL's Limited Power (LP) certification indicates the N237A-F18N-WHSH has been evaluated to handle the marked current under installation scenarios without exceeding the temperature rating of the cable. This CMR-LP-certified cable provides a simple way to prepare installations for increased power levels without having to worry about susceptible issues caused by excessive heat.



Specification:



Technical details
Product colour	Blue
Cable standard	Cat6a
Cable shielding	F/UTP (FTP)
Connector 1	RJ-45
Connector contacts plating	Gold
Data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.3af, IEEE 802.3at
Jacket material	Polyvinyl chloride (PVC)
Cable length	18" (0.457 m)
Country of origin	Taiwan
Sustainability certificates	RoHS
Features
Product colour	Blue
Country of origin	Taiwan
AWG wire size	24
Cable standard	Cat6a
Cable shielding	F/UTP (FTP)
Connector 1	RJ-45
Connector contacts plating	Gold
Data transfer rate	10000 Mbit/s
Networking standards	IEEE 802.3af, IEEE 802.3at
Jacket material	Polyvinyl chloride (PVC)
Cable length	18" (0.457 m)
Harmonized System (HS) code	8544.42.2000
Connector 2 gender	Female
Connector 1 gender	Male
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Outer diameter	0.287" (7.3 mm)
Packaging data
Package width	7" (177.8 mm)
Package depth	0.5" (12.7 mm)
Package height	9" (228.6 mm)
Package weight	2.12 oz (60 g)
Quantity per pack	1 pc(s)
Logistics data
Master (outer) case gross weight	20.5 oz (580 g)
Products per master (outer) case	10 pc(s)
Master (outer) case width	16" (406.4 mm)
Master (outer) case length	1" (25.4 mm)
Master (outer) case height	18" (457.2 mm)
Master (outer) case GTIN (EAN/UPC)	10037332250527
Other features
Master (outer) case GTIN (EAN/UPC)	10037332250527
