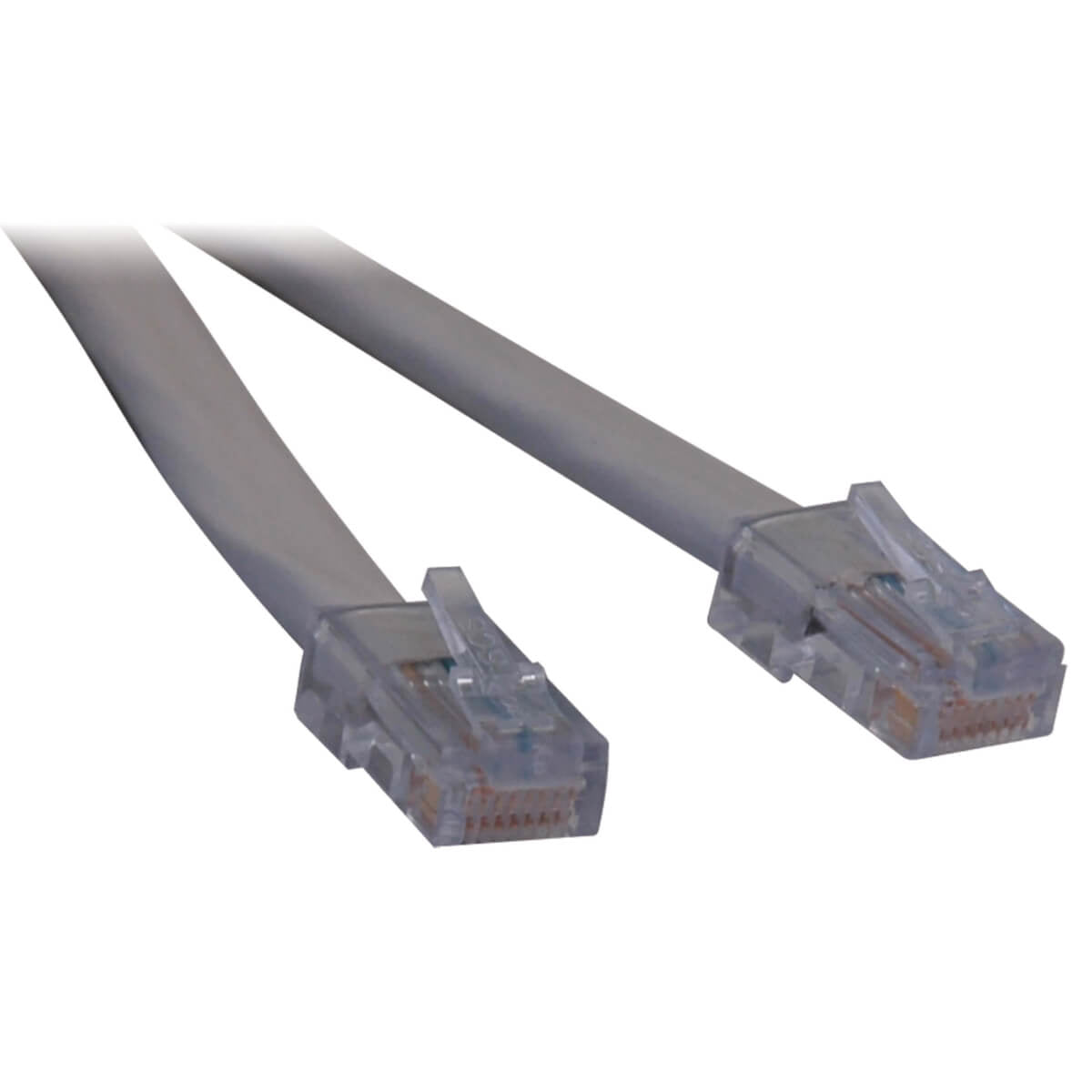

N266-005 - Tripp Lite 5FT T1 SHIELDED RJ48C CROSS-OVER CABLE

Tripp Lite's T1, RJ45-RJ45 , ( RJ48C ) Cross-over Patch Cables are constructed with premium Quabbin 9720, T1 certified cable. Two individually shielded, 22AWG, 100ohm pairs, maximize the performance of your expensive T1 circuits and equipment. Beware of generic T1 patch cables made with inexpensive Cat5 unshielded patch cable. The American National Standards Institute ( ANSI ) states in ANSI T1.403 that T1 cable be constructed of two balanced pairs, 22 AWG Solid conductor, 100ohm impedance, with a loss budget of 5.5db. Cross-over wiring configuration available in 3-ft. (0.91 m), 5-ft. (1.52 m), 7-ft. (2.13 m), and 10-ft. (3.05 m) lengths. Custom lengths available...consult your reseller. Also available in Straight-through wiring configuration...see Tripp Lite N265- Series T1 patch cables. Tripp Lite's T1, RJ45-RJ45 , ( RJ48C ) Cross-over Patch Cables are constructed with premium Quabbin 9720, T1 certified cable Two individually shielded, 22AWG, 100ohm pairs, maximize the performance of your expensive T1 circuits and equipment Cross-over wiring configuration available in 3-ft. (0.91 m), 5-ft. (1.52 m), 7-ft. (2.13 m), and 10-ft. (3.05 m) lengths Custom lengths available...consult your reseller Also available in Straight-through wiring configuration...see Tripp Lite N265- Series T1 patch cables.



Specification:



Technical details
Product colour	Beige
Cable standard	Cat5
Connector 1	RJ-45
Connector 2	RJ-45
Input impedance	100 Ω
Conductor type	Solid
Cable length	83.9" (2.13 m)
Cable rating	CMR
Country of origin	United States
Sustainability certificates	RoHS
Features
Input impedance	100 Ω
Product colour	Beige
Cable rating	CMR
Country of origin	United States
AWG wire size	22
Cable standard	Cat5
Connector 1	RJ-45
Connector 2	RJ-45
Conductor type	Solid
Cable length	83.9" (2.13 m)
Harmonized System (HS) code	8544.42.2000
Connector 2 gender	Male
Connector 1 gender	Male
Packaging data
Package width	8.5" (215.9 mm)
Package depth	11.3" (287 mm)
Package height	0.5" (12.7 mm)
Package weight	3.17 oz (90 g)
Logistics data
Master (outer) case gross weight	3.2 lbs (1.45 kg)
Products per master (outer) case	10 pc(s)
Master (outer) case width	11.5" (292.1 mm)
Master (outer) case length	12" (304.8 mm)
Master (outer) case height	3.9" (99.1 mm)
Master (outer) case GTIN (EAN/UPC)	10037332150360
Other features
Input impedance	100 Ω
Master (outer) case GTIN (EAN/UPC)	10037332150360
