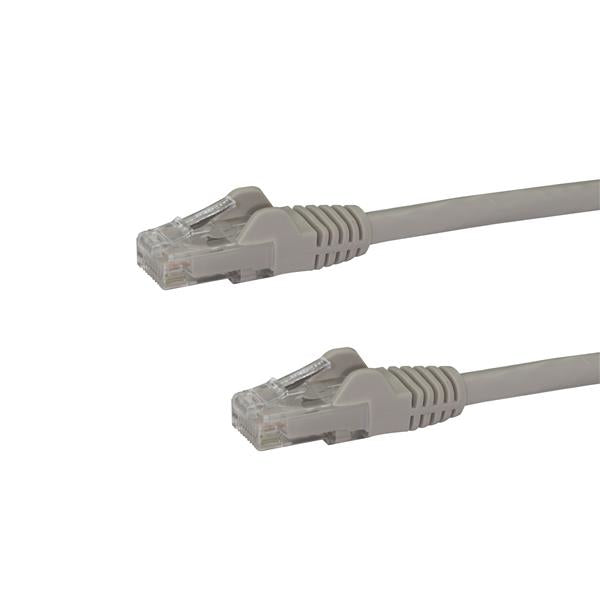

N6PATCH100GR - StarTech.com 100FT CAT6 ETHERNET CABLE GRAY 100W POE

Make Power-over-Ethernet-capable Gigabit network connections

This 100-foot Cat6 cable meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections. Plus, the cable features a durable gray PVC jacket that enables you to color code your network cable runs as needed.

Snagless RJ45 clips help protect your network connections

For easier cable runs, the snagless connectors protect the cable’s RJ45 clips during installation, making them less likely to snag or break. This ensures a sturdy connection by preventing the cable from becoming loose from the port.

The cable features molded boots that offer connector strain relief, by stopping the RJ45 connector termination points from bending at sharp angles, and reducing the risk of damage to the cable, which could decrease network performance.

100% copper for outstanding value

Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.

24-gauge wire for high-performance network connection

Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.

50-micron gold connectors provide peak conductivity

Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

The N6PATCH100GR is backed by StarTech.com’s lifetime warranty for guaranteed reliability.

The StarTech.com Advantage

- Colored hoods for departmental color coding
- Molded strain relief prevents the cable from being bent at sharp angles at the RJ45 connector, to minimize the stress at the plug termination point
- HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 160'; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6; ETL Verified



Specification:



Technical details
Product colour	Orange
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	1200.8" (30.5 m)
Cable rating	CMG (CM)
Sustainability certificates	RoHS
Features
Product colour	Orange
Cable rating	CMG (CM)
Snagless cable boot	Yes
Frequency	650 MHz
AWG wire size	24
Plug and Play	Yes
Cable standard	Cat6
Cable shielding	U/UTP (UTP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Polyvinyl chloride (PVC)
Conductor type	Stranded
Cable length	1200.8" (30.5 m)
Ethernet interface type	Gigabit Ethernet
Power over Ethernet (PoE)	Yes
Harmonized System (HS) code	84733080
Connector 2 gender	Male
Connector 1 gender	Male
Weight & dimensions
Weight	2.87 lbs (1.3 kg)
Packaging data
Package width	1.81" (46 mm)
Package depth	10.1" (256 mm)
Package height	13" (330 mm)
Package weight	2.87 lbs (1.3 kg)
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	16 pc(s)
Master (outer) case width	14.2" (360 mm)
Master (outer) case length	15.7" (400 mm)
Master (outer) case height	10" (255 mm)
