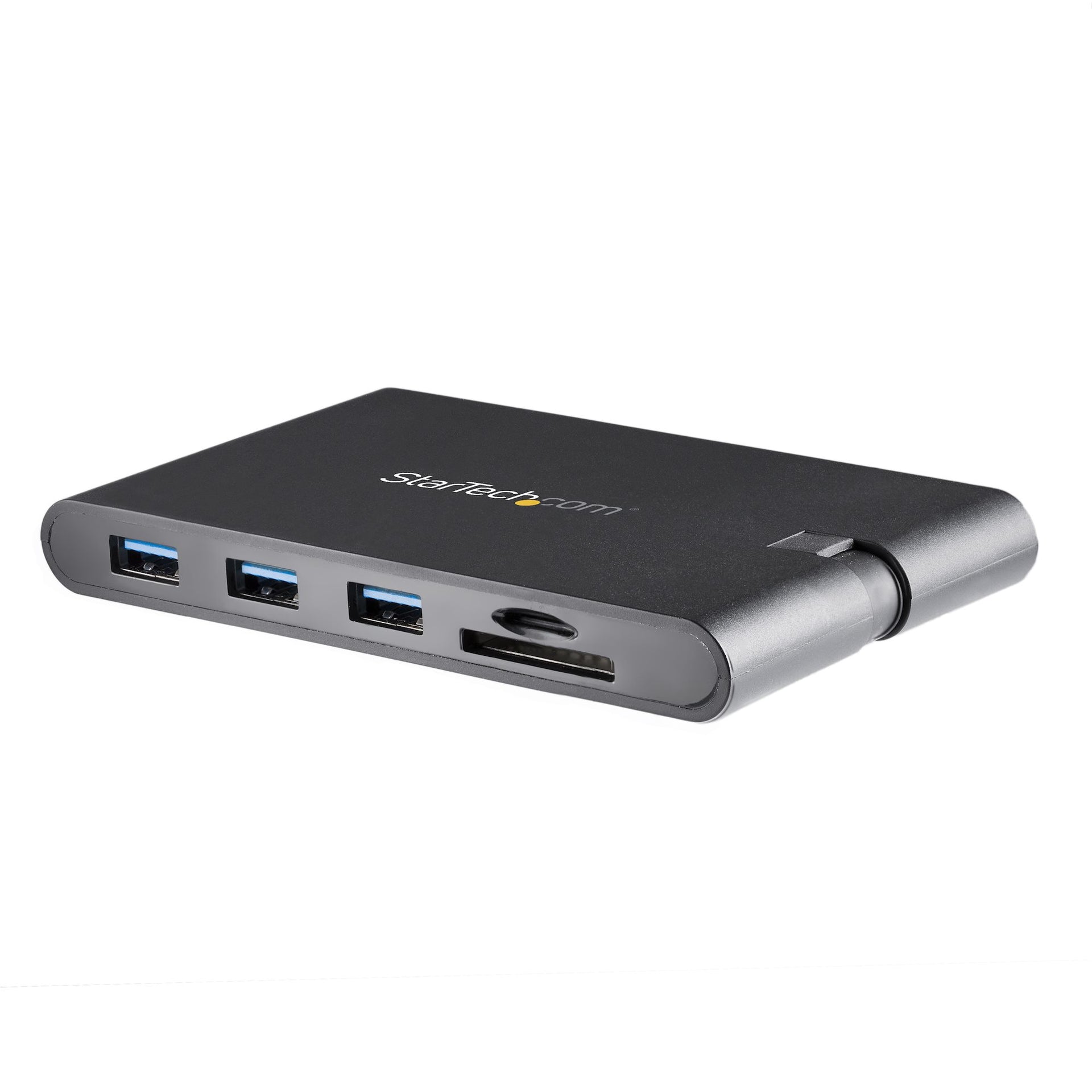

DKT30CHVSCPD - StarTech.com USB-C MULTIPORT ADAPTER WITH 4K 30HZ HDMI OR 1080P VGA VIDEO/3X USB-A 3.0 (SUPPO

Add video output, three USB 3.0 ports, SD/micro SD card readers, and GbE port to your laptop through a single USB-C port

Turn your USB-C equipped laptop into a mobile workstation. This sleek, compact USB-C multiport adapter makes it easy to connect your MacBook Pro or Windows laptop to an HDMI or VGA monitor. Power through your workday, with three USB 3.0 (Type-A) ports with Fast-Charge support, SD and microSD card slots, and a Gigabit Ethernet port.

Connect to an external monitor

The universal USB Type-C multiport adapter (Thunderbolt 3 port compatible) offers enhanced productivity in the boardroom or classroom. Connect your laptop to one external monitor:

4K HDMI (3840 x 2160p @ 30Hz) or VGA (1920 x 1200 @ 60Hz)

Charge your laptop and peripherals

With support for USB Power Delivery 3.0 (up to 85W), the USB-C multiport adapter lets you power and charge your laptop, and power your peripherals at the same time. PD 3.0 features Fast Role Swap to prevent USB data disruption when switching power sources (bus power and USB-C power adapter).

Connect USB devices

Connect your USB devices using the three USB 3.0 (Type-A) ports. Each USB port is a fast-charge and sync port, to ensure your tablet and smartphone are charged and ready. Each port offers 7.5W of charging power, with a combined total of 10W with all three ports in use.

SD/microSD card access

Access the SD and microSD slots at the same time, and easily move data from one card to the other.

Easy portability

For mobile use, the USB-C adapter is bus-powered and lightweight, with a wraparound USB-C cable.

DKT30CHVSCPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- 8-IN-1 USB-C PORTABLE MINI DOCK: Eliminates the hassle of carrying multiple adapters w/ 4K 30Hz HDMI or 1080p VGA video, 3x 5Gbps USB-A, SD slot, microSD slot, 1x Gigabit Ethernet, 1x headset/mic jack
- POWER FLEXIBILITY: Travel dock is USB bus powered and supports up to 100W Power Delivery 3.0 Passthrough; 15W reserved for dock and up to 85W for laptop charging using your USB-C power adapter
- SIMULTANEOUS SD & MICRO SD ACCESS: USB-C multiport adapter provides both a SD/SDHC/SDXC and a MicroSD card reader for additional data storage or backup, and provides access to both simultaneously



Specification:



Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Microphone in	No
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
Network
Full duplex	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
UASP support	Yes
Maximum digital resolution	3840 x 2160 pixels
Maximum analog resolution	1920 x 1080 pixels
Full duplex	Yes
Number of displays supported	1
Product colour	Gray
Card reader integrated	Yes
LED indicators	Activity, Speed
Data transfer rate	5 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD, SDHC, SDXC
HD type	4K Ultra HD
Maximum refresh rate	60 Hz
Technical details
Product colour	Gray
Data transfer rate	5 Gbit/s
Cable length	11.8" (0.3 m)
Sustainability certificates	CE, RoHS
Harmonized System (HS) code	84733020
Products per master (outer) case	30 pc(s)
Master (outer) case width	17.7" (450 mm)
Master (outer) case length	13.4" (340 mm)
Master (outer) case height	7.87" (200 mm)
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD, SDHC, SDXC
Power
Power consumption (typical)	15 W
Software
Windows operating systems supported	Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10 Education x64, Windows 7, Windows 8 Enterprise, Windows 10 Enterprise, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 Enterprise x64, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Home, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Home x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 IOT Core, Windows 7 Home Premium, Windows 8.1, Windows 10 IoT Enterprise, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 10 Pro, Windows 7 Professional, Windows 8.1 Enterprise x64, Windows 10 Pro x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10 x64, Windows 7 Starter, Windows 8.1 Pro x64, Windows 11, Windows 7 Starter x64, Windows 8.1 x64, Windows 11 x64, Windows 7 Ultimate
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS
Indication
LED indicators	Activity, Speed
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Sustainability
Sustainability certificates	CE, RoHS
Weight & dimensions
Weight	4.83 oz (137 g)
Width	12.8" (326 mm)
Depth	2.32" (59 mm)
Height	0.551" (14 mm)
Package width	4.33" (110 mm)
Package depth	2.32" (59 mm)
Package height	0.591" (15 mm)
Design
Windows operating systems supported	Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10 Education x64, Windows 7, Windows 8 Enterprise, Windows 10 Enterprise, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 Enterprise x64, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Home, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Home x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 IOT Core, Windows 7 Home Premium, Windows 8.1, Windows 10 IoT Enterprise, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 10 Pro, Windows 7 Professional, Windows 8.1 Enterprise x64, Windows 10 Pro x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10 x64, Windows 7 Starter, Windows 8.1 Pro x64, Windows 11, Windows 7 Starter x64, Windows 8.1 x64, Windows 11 x64, Windows 7 Ultimate
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Product colour	Gray
LED indicators	Activity, Speed
Packaging data
Package width	4.33" (110 mm)
Package depth	2.32" (59 mm)
Package height	0.591" (15 mm)
Packaging content
Quick start guide	Yes
Logistics data
Products per master (outer) case	30 pc(s)
Master (outer) case width	17.7" (450 mm)
Master (outer) case length	13.4" (340 mm)
Master (outer) case height	7.87" (200 mm)
Other features
Chipset	Realtek - RTL8153, Parade Technologies - PS176, VIA Tech - VL102, VIA Tech - VL817
Cable length	11.8" (0.3 m)
