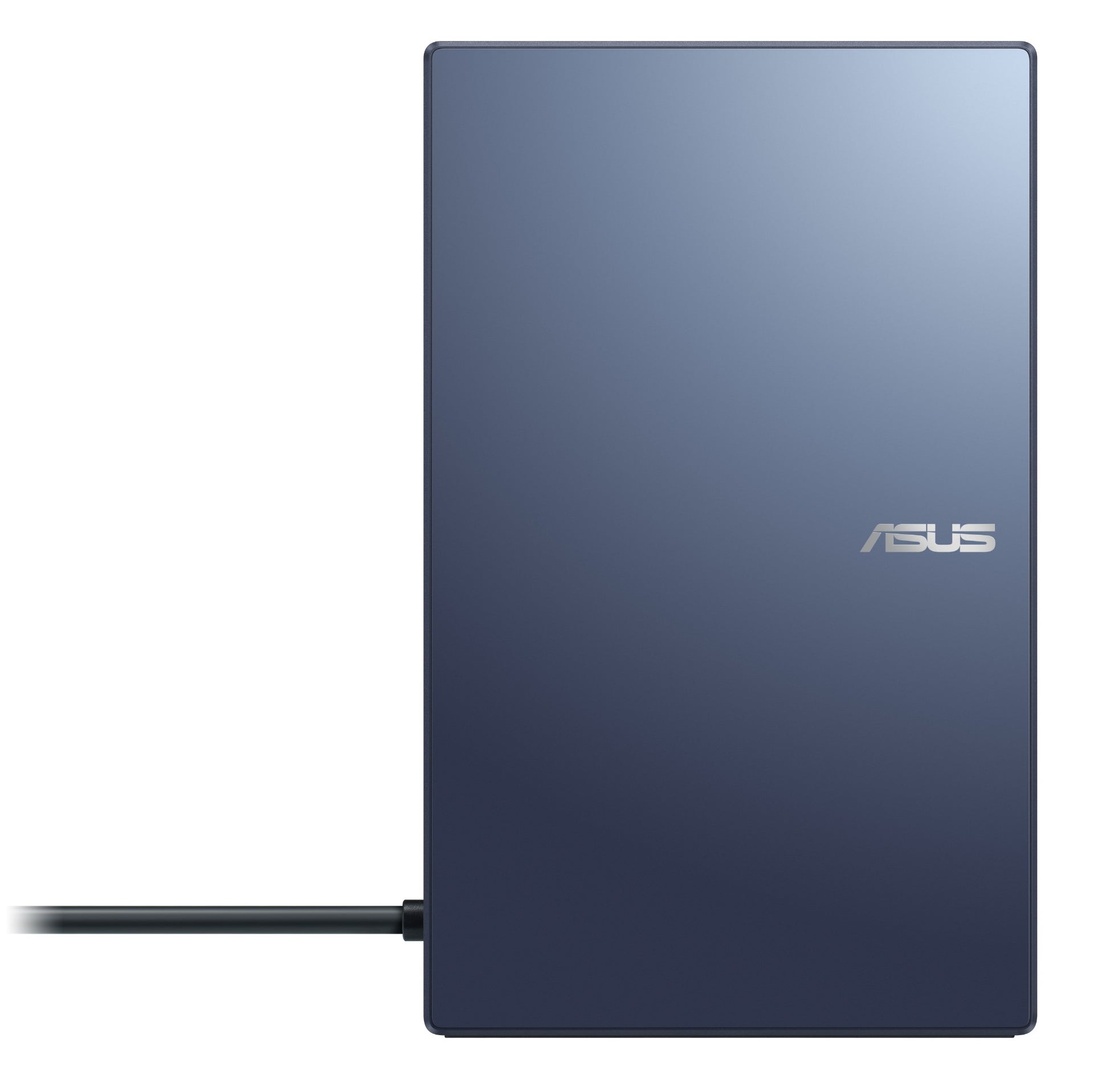

90NX0460-P00080 - ASUS SIMPRO DOCK 2,180 WATT ADAPTER(6 PHI)

Your one-stop connection station ASUS SimPro Dock 2 is a sleek, compact one-stop dock that streamlines laptop connectivity. Attach your laptop via a single cable and it’s powered, connected to your network and peripherals, and is primed for multitasking across up to four monitors — including an up to 8K display. It also has an integrated smart card reader for a diverse array of business. Simply, SimPro Dock 2 keeps your desk neat, tidy and organized while setting you up for work in the blink of an eye. Productivity One cable, unlimited possibilities With extensive connectivity and compatibility with a broad range of both ASUS and other laptops, SimPro Dock 2 is the easy way to connect to extra data, power, peripherals, security and management tools. Just link to your laptop via a single USB-C cable and it’s instantly hooked up to your customized computing environment. Advanced networking, management and security Apart from connecting to wired network easily, SimPro Dock 2 helps facilitate your company’s IT management and keep your information safe and productivity high, with MAC address pass-through, remote port-disablement and Wake-on-LAN. Loaded with connectivity A total of five USB connections ensures easy connectivity and compatibility with a vast array of peripherals, including external hard drives, printers and scanners. SimPro Dock 2 also has Thunderbolt™ 3 for ultrafast up to 40 Gbps data transfer speeds, fast charging and video output. There’s even USB 3.2 Gen 2 Type-A that can fast-charge everyday devices, such as smartphones and tablets. Smart card applications, empowered With a built-in smart card reader, SimPro Dock 2 enables user authentication and security for a diverse array of business applications, from credit card-based financial transactions to identification verification for tax-filing purposes or access to personal data on government websites. Power your day SimPro Dock 2 supports up to 6A of power throughput for rapid charging, and has a built-in 0.6 m cable for quick, convenient connection to your laptop. It provides up to 120W power for compatible laptops, for improved power delivery and charging efficiency. Maximize the workspace without bounds Connect up to four displays1 at once, making it easier to manage multiple applications and extend your workspace. When attached to a laptop that supports Display Stream Compression (DSC), SimPro Dock 2 supports up to one 8K display — delivering crisp and detailed visuals. It also has DisplayPort™ 1.4, HDMI™ 2.0, traditional VGA connectivity, giving you the freedom to connect to also any display you need. As well, SimPro Dock 2’s DisplayPort functionality includes support for Multi-Steam Transport (MST), allowing multiple displays to be connected to a single DisplayPort socket. Design Connectivity empowered SimPro 2 Dock is loaded with diverse ports, slots and jacks, so it’s ready to connect almost any device you need — today or tomorrow. Connectivity Your workspace, tidied SimPro Dock 2 brings all those cables together, keeping your workspace neat and tidy. It’s also a compact little device, occupying barely more space than a smartphone. Reliability One-button operation Once connected, all it takes is one touch of the SimPro Dock 2 power button to fire up your laptop. The integrated LED lets you know when laptop’s synced up, so you know when you’re good to go. Software Simple, smart software SimPro Dock 2 includes simple, smart software to help you get set up. Pop-up messages ease the selection of a network, for example, and the device will also show an alert if you happen to dock without the power connected. Service Maximum support, minimum effort The ASUS Business Service Package offers solutions that extend beyond a standard warranty to meet the needs of business-critical IT environments. Comprehensive coverage protects more than just your hardware and allows you to customize a service solution that best meets the needs of your business.



Specification:



Processor
Processor generation	4th gen Intel® Core™ i7
Stepping	C0
Processor operating modes	32-bit, 64-bit
Processor lithography	22 nm
Processor codename	Haswell
Bus type	DMI
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Thermal Design Power (TDP)	84 W
Tcase	72.72 °C
Processor series	Intel Core i7-4700 Desktop series
PCI Express configurations	1x16,2x8,1x8+2x4
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Processor cache	8 MB
Processor frequency	3.6 GHz
Processor model	i7-4790
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4 GHz
System bus rate	5 GT/s
Processor socket	LGA 1150 (Socket H3)
Processor threads	8
Processor cores	4
PCI Express slots version	3.0
Processor family	Intel Core i7
Memory
Internal memory	16 GB
Maximum internal memory	32 GB
Memory slots	4x DIMM
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory channels	Dual-channel
Storage
Storage media	HDD+SSD
HDD capacity	2000 GB
HDD speed	7200 RPM
HDD interface	SATA III
SSD capacity	128 GB
Number of SSDs installed	1
Card reader integrated	Yes
Compatible memory cards	CF, MS Duo, MS Micro (M2), MS PRO, MS PRO Duo, Memory Stick (MS), MicroDrive, MicroSD (TransFlash), MiniMMC, MiniSD, RS-MMC, SD, SDHC
Total storage capacity	2128 GB
Graphics
Discrete graphics adapter	Yes
On-board graphics adapter dynamic frequency (max)	1200 MHz
On-board graphics adapter base frequency	350 MHz
Maximum on-board graphics adapter memory	1.024 GB
Number of displays supported (on-board graphics)	3
On-board graphics adapter DirectX version	11.1
On-board graphics adapter ID	0x412
On-board graphics adapter family	Intel® HD Graphics
On-board graphics adapter	Yes
Discrete graphics adapter model	NVIDIA® GeForce® GTX 770
On-board graphics adapter model	Intel® HD Graphics 4600
Network
Ethernet LAN	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
VGA (D-Sub) ports quantity	1
USB 2.0 ports quantity	4
S/PDIF out port	Yes
PS/2 ports quantity	1
Microphone in	Yes
Headphone outputs	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Expansion slots
PCI Express x4 slots	1
PCI Express x16 slots	1
PCI Express x1 slots	2
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Product type	PC
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Product colour	Black
Chassis type	Tower
Audio output channels	7.1 channels
Motherboard chipset	Intel® H97
Design
Product colour	Black
Chassis type	Tower
Performance
Embedded options available	No
Product type	PC
Audio output channels	7.1 channels
Motherboard chipset	Intel® H97
Software
Operating system installed	Windows 8.1
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel FDI Technology	Yes
Intel® Smart Cache	Yes
Intel Enhanced Halt State	Yes
Thermal solution specification	PCG 2013D
Supported instruction sets	AVX 2.0,SSE4.1,SSE4.2
Scalability	1S
Processor package size	37.5 x 37.5 mm
Processor code	SR1QF
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Graphics & IMC lithography	22 nm
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	0.00
Intel Stable Image Platform Program (SIPP) version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Conflict-Free processor	Yes
Processor ARK ID	80806
Intel 64	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Weight & dimensions
Package width	13.1" (332 mm)
Package depth	24" (610 mm)
Package height	23.6" (600 mm)
Width	8.07" (205 mm)
Depth	18.3" (465 mm)
Height	21.1" (535 mm)
Weight	31.7 lbs (14.4 kg)
Packaging data
Package width	13.1" (332 mm)
Package depth	24" (610 mm)
Package height	23.6" (600 mm)
Packaging content
Manual	Yes
Display included	No
Other features
On-board graphics adapter	Yes
Processor manufacturer	Intel
