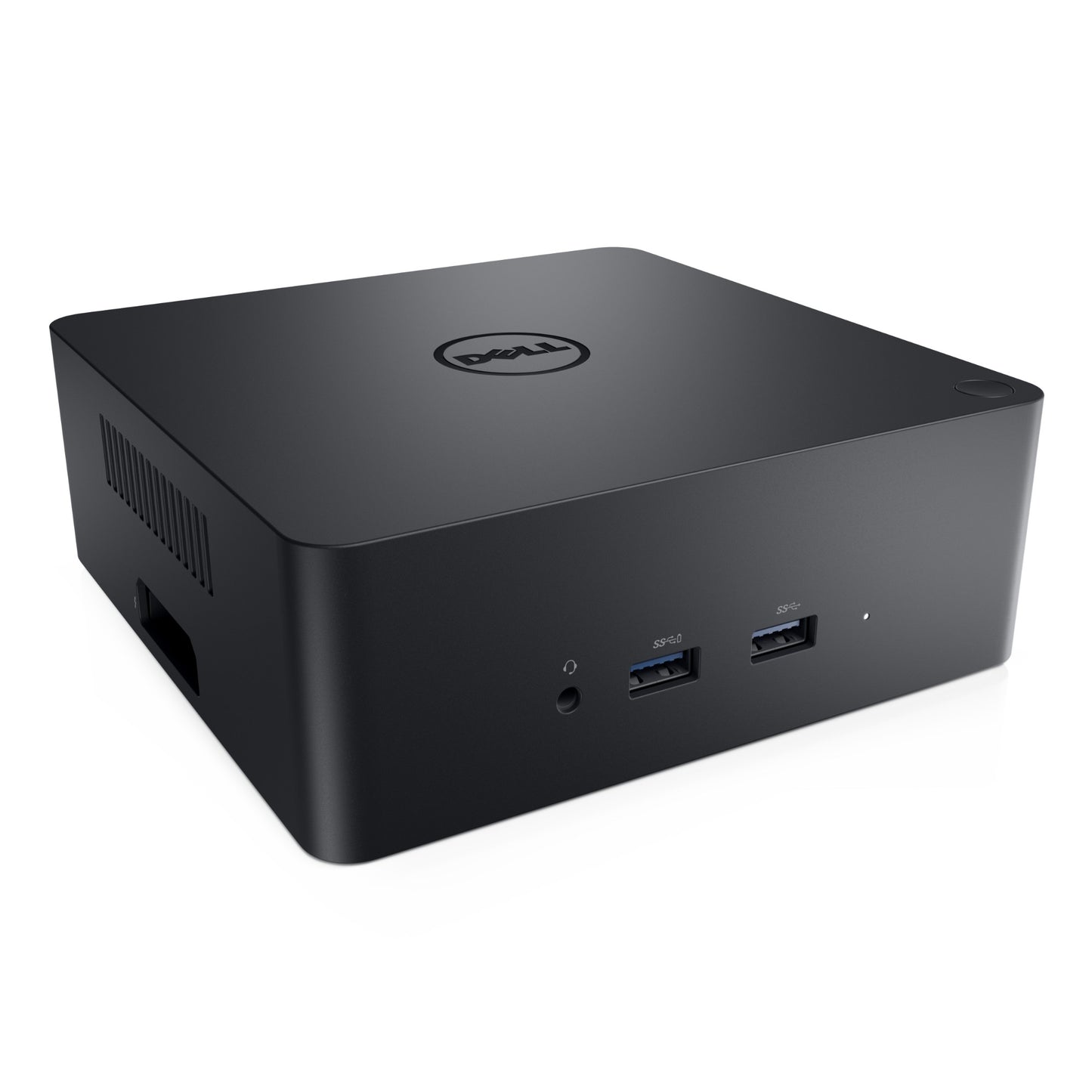

DELL TB18DC DUAL USB-C THUNDERBOLT

Incredibly powerful Thunderbolt Dock delivers up to 210W Introducing Dell’s most powerful dock to date, the Dell Precision Dual USB-C Thunderbolt Dock - TB18DC for Precision 7530 and 7730 workstations, offering incredibly high power delivery of up to 210W. Charge up to 80% of your Precision 7530 or 7730 within an hour, and be fully charged in under two hours with Dell ExpressCharge. You’ll be ready to move at a moment’s notice with plenty of battery backing you up. Lightning fast data transfer speeds Transfer large files at lightning fast speeds of up to 40Gbps when you connect Thunderbolt storage devices One cable for both docking and power Leave your power brick at home and conveniently plug in one cable to dock and power your laptop. Boost productivity with the ability to connect up to three Full HD displays, or two 4K displays, and Thunderbolt/USB peripherals with a single cable. Flexible placement with 0.8m cable length With the flexibility of a long, 0.8m cable length you can place your dock just about anywhere in your workspace. Most manageable with Dell Business Class features The dock supports Dell Business Class features which allows for easy manageability. ITDMs will be able to remotely troubleshoot, manage systems, and secure dock ports.



Specification:



Ports & interfaces
Thunderbolt 3 ports quantity	2
Host interface	Thunderbolt 3
DisplayPorts quantity	1
Connectivity technology	Wired
Network
Ethernet LAN	No
Performance
Product colour	Black
Card reader integrated	No
LED indicators	Power
Data transfer rate	40 Gbit/s
Rubber feet	Yes
Housing material	Aluminum, Steel
Maximum airflow	14.06 cfm
Technical details
Product colour	Black
Data transfer rate	40 Gbit/s
Cable length	19.7" (0.5 m)
PCI slot	1 x PCIe x16
Sustainability compliance	Yes
Sustainability certificates	CE, RoHS
Harmonized System (HS) code	84733020
Maximum port bandwidth	3.94 GB/s
Products per master (outer) case	3 pc(s)
Master (outer) case width	14.8" (375 mm)
Master (outer) case length	17.9" (455 mm)
Master (outer) case height	12.8" (325 mm)
Cooling
Built-in fan	Yes
Number of fans	1 fan(s)
Bearing type	Sleeve bearing
Fan diameter	2.36" (6 cm)
Noise level	24.55 dB
Maximum airflow	14.06 cfm
Storage
Card reader integrated	No
Power
Power source type	DC
Input current	2 A
Power plug type	Type N
Compatible power plug types	AU, EU, JP, UK, US
AC input voltage	100 - 240 V
Power consumption (typical)	65 W
Output voltage	12 V
Output current	5.417 A
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Indication
LED indicators	Power
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80%
Sustainability
Sustainability compliance	Yes
Sustainability certificates	CE, RoHS
Weight & dimensions
Weight	3.53 lbs (1.6 kg)
Width	5.59" (142 mm)
Depth	11" (280 mm)
Height	3.23" (82 mm)
Package weight	6.83 lbs (3.1 kg)
Package width	11.4" (290 mm)
Package depth	14.2" (360 mm)
Package height	5.71" (145 mm)
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Product colour	Black
LED indicators	Power
Rubber feet	Yes
Packaging data
Package weight	6.83 lbs (3.1 kg)
Package width	11.4" (290 mm)
Package depth	14.2" (360 mm)
Package height	5.71" (145 mm)
Packaging content
Quick start guide	Yes
Cables included	Thunderbolt
AC adapter included	Yes
Logistics data
Products per master (outer) case	3 pc(s)
Master (outer) case width	14.8" (375 mm)
Master (outer) case length	17.9" (455 mm)
Master (outer) case height	12.8" (325 mm)
Other features
Chipset	Intel - Alpine Ridge DSL6540
Cable length	19.7" (0.5 m)
PCI slot	1 x PCIe x16
Maximum port bandwidth	3.94 GB/s
