Description

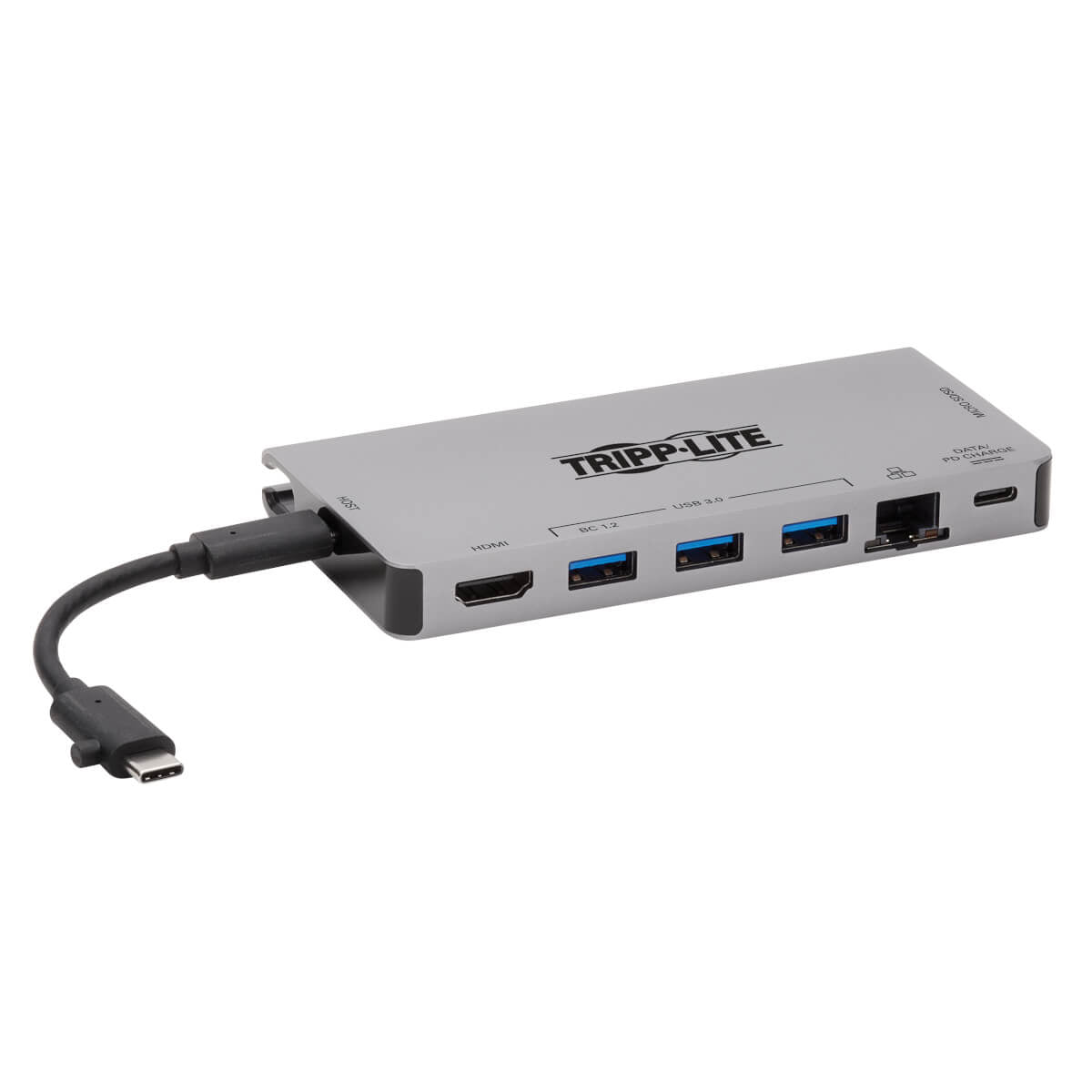

USB-C Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Workstation This USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, smartphone or PC’s USB-C or Thunderbolt 3 port. It’s ideal for transmitting true 4K video and digital audio to a large display, adding a thumb drive and other USB peripherals, powering and charging a PD Charging-compliant mobile device, connecting to a Gigabit Ethernet network and a lot more—all at the same time. Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals By connecting the detachable USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to an HDMI monitor, television or projector without installing special software drivers. Transmits Crystal-Clear 4K Video and Digital Audio with True 4:4:4 Color The HDMI output supports true 4K video resolutions up to 4096 x 2160 at 30 Hz with multi-channel sound and 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Connect the HDMI port to your display using an HDMI cable (sold separately). A DVI display may also be connected using an HDMI to DVI adapter (sold separately). USB Ports Connect Keyboards, Thumb Drives and Other Peripherals Three USB-A hub ports accept USB peripherals, such as flash drives, mice, keyboards and printers. They support 5V 2A (10W) of charging power, when connected to a PD 3.0-compliant charger, and fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps (10 times faster than USB 2.0). One port also supports BC 1.2 charging with 5V 1.5A (7.5W) of power dedicated to fast-charging your mobile device. Note: Host must support USB OTG (On-the-Go). PD Charging Port Charges the Connected Notebook, Tablet or Other Device The USB-C port supports Power Delivery (PD) 3.0 charging of connected PD Charging-compliant devices, such as laptops, Kindles, iPads and Android smartphones. Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 20V 5A (100W). This port, as mentioned above, can also be used for transferring data up to 5 Gbps. PD 3.0 Fast Role Swap technology ensures all data and power connections remain stable if the wall charger becomes accidentally dislodged. Note: USB-C PD port does not support Quick Charge (QC). Accesses a Wired Gigabit Ethernet Network The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers. Allows External Memory Access The memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet. Both slots may be used at the same time. Detachable USB-C Cable Attaches in Either Direction Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connector plugs into a USB-C or Thunderbolt 3 port in either direction for an instant connection every time. Ready to Use Right from the Package, So You Can Plug and Play Immediately The plug-and-play USB-C dock is specifically designed for use with Windows laptops and other notebooks, smartphones, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no extra software to be downloaded or installed. It’s about the size of a smartphone, making it easy to pack into a pocket, backpack or laptop bag for multiport convenience wherever you go.
Specification:
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Microphone in | No |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Network | |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 4096 x 2160 pixels |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Country of origin | Vietnam |
| Product colour | Gray |
| Card reader integrated | Yes |
| Plug and Play | Yes |
| LED indicators | Yes |
| Data transfer rate | 5 Gbit/s |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Certification | CE, FCC, REACH |
| HD type | 4K Ultra HD |
| Housing material | Aluminum |
| Technical details | |
| Product colour | Gray |
| Plug and Play | Yes |
| Data transfer rate | 5 Gbit/s |
| Sustainability certificates | RoHS |
| Master (outer) case GTIN (EAN/UPC) | 10037332241013 |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 11.6" (294.9 mm) |
| Master (outer) case gross weight | 2.87 lbs (1.3 kg) |
| Master (outer) case length | 5.31" (134.9 mm) |
| Master (outer) case height | 4.72" (119.9 mm) |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Power | |
| Power source type | USB |
| Power connector | USB Type-C |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight | 3.88 oz (110 g) |
| Width | 4.13" (105 mm) |
| Depth | 1.93" (49 mm) |
| Height | 0.512" (13 mm) |
| Package weight | 3.88 oz (110 g) |
| Package width | 5.51" (140 mm) |
| Package depth | 3.94" (100.1 mm) |
| Package height | 0.909" (23.1 mm) |
| Design | |
| Country of origin | Vietnam |
| Product colour | Gray |
| LED indicators | Yes |
| Certification | CE, FCC, REACH |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 3.88 oz (110 g) |
| Package width | 5.51" (140 mm) |
| Package depth | 3.94" (100.1 mm) |
| Package height | 0.909" (23.1 mm) |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | CE, FCC, REACH |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 11.6" (294.9 mm) |
| Master (outer) case gross weight | 2.87 lbs (1.3 kg) |
| Master (outer) case length | 5.31" (134.9 mm) |
| Master (outer) case height | 4.72" (119.9 mm) |
