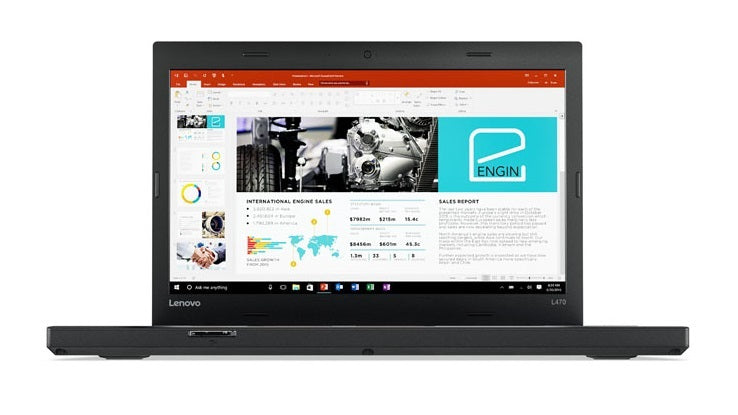

20JU0009US - Lenovo THINKPAD L470, INTEL CORE I5-6200U (2.30GHZ, 3MB) 14.0 1366X768 , WINDOWS 7 PROF

Tough Enough for Any Job Tested against 12 military-grade requirements and passing more than 200 quality checks, the L470 is engineered to survive the bumps and bruises of life. Approved by a Show of Hands – 100 Million of Them L470 delivers the award-winning keyboard experience that IT Pros and end users alike love and expect from ThinkPad. Having been shipped on 100 million systems, the legendary keyboard delivers a more accurate and comfortable experience all day, every day. Take it from those who know – all 100 million of them. Built on a Clean Foundation L470 eliminates trial ware and unwanted apps. No distractions for end users, easy to provision by IT Pros. A no-nonsense operating system. Explosive Power Without Volatility Pairing the new 7th Generation Intel® Core™ i processors with Intel® Optane™ memory means your L470 is a high-performance machine, with the power to handle whatever your business throws at it. Intel® Optane™ technology lets you release the true power of the Intel® Core™ processor, eliminating bottlenecks with fast storage memory that nevertheless stays non-volatile. Kick it into high gear, and don’t look back. Choose Your Drive When you configure your L470 storage, you can go with the latest and fastest solid-state drive or a larger-capacity mechanical hard disk drive. Each has advantages, go with whichever will integrate better with your company and preferences. Unplug Without Fear L470 has all the battery power you need – more than 12 hours – to move from your desk to meetings and elsewhere, and stay productive throughout the business day with plenty of charge left afterward. Cut the Cord Clutter Keep your space clean and organized by connecting all of your peripherals to the ThinkPad Pro Dock. That way, when you connect your L470 to the dock in a snap, everything else you need will already be there at your fingertips. Get Help if You Need It – No Matter Where You Are ThinkPad L-Series laptops come with a standard worldwide warranty. Now you can get help in 160 countries around the world. These machines travel better than some people do. Amp Up Your Graphics An optional discrete graphics card means your L470 will have more processing power to handle more graphics-intensive apps. Rely on a dedicated processor to rev up your graphics capability without draining precious processing power from your software.



Specification:



Design
Product type	Notebook
Market positioning	Business
Housing material	Acrylonitrile butadiene styrene (ABS)
Form factor	Clamshell
Product colour	Black
Display
HD type	HD
Display surface	Matt
LED backlight	Yes
3D	No
Contrast ratio (typical)	500:1
Touchscreen	No
Display resolution	1366 x 768 pixels
Display diagonal	14"
Screen shape	Flat
Native aspect ratio	16:9
Processor
Stepping	D1
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Skylake
Bus type	QPI
Tjunction	100 °C
Thermal Design Power (TDP)	15 W
Processor series	Intel Core i5-6200 series
PCI Express slots version	3.0
PCI Express configurations	1x4,4x1
Maximum number of PCI Express lanes	12
Configurable TDP-down	7.5 W
ECC supported by processor	No
Configurable TDP-down frequency	0.8 GHz
Processor cache type	Smart Cache
Conflict-Free processor	Yes
Processor cache	3 MB
Processor frequency	2.3 GHz
Processor model	i5-6200U
Processor boost frequency	2.8 GHz
Processor cores	2
Processor threads	4
System bus rate	4 GT/s
Processor socket	LGA 1356 (Socket B2)
Motherboard chipset	Intel SoC
Processor manufacturer	Intel
Processor family	6th gen Intel® Core™ i5
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-up	25 W
Memory
Memory form factor	SO-DIMM
Internal memory	4 GB
Memory layout (slots x size)	1 x 4 GB
Internal memory type	DDR4-SDRAM
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
Maximum internal memory (64-bit)	32 GB
Storage
Storage media	HDD
Optical drive type	No
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	2.5"
Card reader integrated	Yes
Compatible memory cards	MMC,SD,SDHC,SDXC
Total storage capacity	500 GB
Graphics
Discrete graphics adapter	No
On-board graphics adapter dynamic frequency (max)	1000 MHz
On-board graphics adapter base frequency	300 MHz
Maximum on-board graphics adapter memory	1.74 GB
On-board graphics adapter OpenGL version	4.4
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	1916
On-board graphics adapter family	Intel® HD Graphics
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® HD Graphics 520
Discrete graphics adapter model	Not available
Audio
Audio chip	Realtek ALC3268
Number of built-in speakers	2
Speaker power	1 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Front camera resolution	1280 x 720 pixels
Front camera HD type	HD
Optical drive
Optical drive type	No
LightScribe	No
Network
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.1
SIM card support	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
Ethernet LAN (RJ-45) ports	1
Microphone in	No
Combo headphone/mic port	Yes
Docking connector	Yes
Mini DisplayPorts quantity	1
Charging port type	DC-in jack
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	No
Full-size keyboard	No
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	No
Software
Operating system architecture	64-bit
Recovery operating system	Windows 10 Pro
Drivers included	Yes
Operating system installed	Windows 7 Professional
Technical details
Power cord included	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Market positioning	Business
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Housing material	Acrylonitrile butadiene styrene (ABS)
Form factor	Clamshell
Product colour	Black
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Smart Cache	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel Enhanced Halt State	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
Processor package size	42 X 24 mm
Processor code	SR2EY
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Graphics & IMC lithography	14 nm
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Smart Response Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI version	1.00
Conflict-Free processor	Yes
Processor ARK ID	88193
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Smart Response Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity (Watt-hours)	48 Wh
Power
AC adapter power	45 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Cable lock slot	Yes
Sustainability
Sustainability certificates	RoHS, EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	13.3" (339 mm)
Depth	9.25" (235 mm)
Height	0.941" (23.9 mm)
Weight	4.45 lbs (2.02 kg)
Packaging data
Power cord included	Yes
Quick start guide	Yes
Manual	Yes
AC adapter included	Yes
Packaging content
Power cord included	Yes
Quick start guide	Yes
Manual	Yes
AC adapter included	Yes
Other features
On-board graphics adapter dynamic frequency (max)	1000 MHz
Maximum on-board graphics adapter memory	1.74 GB
On-board graphics adapter	Yes
LightScribe	No
3D	No
Maximum internal memory (64-bit)	32 GB
SIM card support	Yes
AC adapter included	Yes
