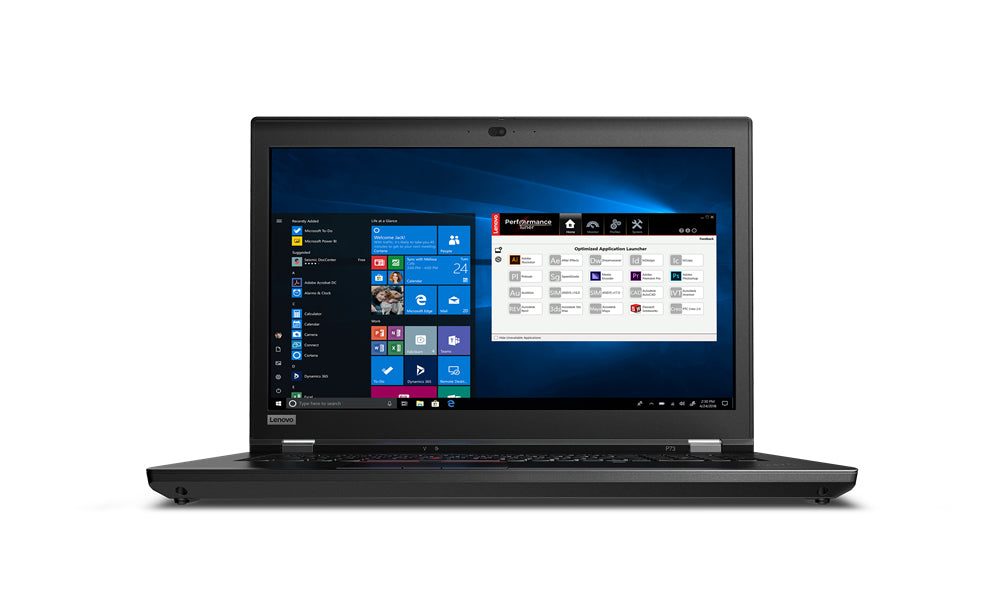

20QR001CUS - Lenovo NOTEBOOK WS P73 E2276 64G 10W

Rendering power for every industry The ThinkPad P73 mobile workstation delivers maximum power, thanks to the latest high-performance processors from Intel®. With up to an i9 eight-core CPU, plus graphics up to the powerful new NVIDIA® RTX Quadro® 5000 series, you’ll have real-time 3D and VR rendering speeds, plus AI-augmented tools to handle workflows in any compute-intensive industry. Additionally, it includes ISV certification for ArcGIS®, AutoCAD®, Creo®, Decision Space®, McKesson®, Revit®, SolidWorks®, 3dsMax®, and more. See your work in colorful detail Choose an optional 4k UHD (3840 x 2160), 400-nit display for vibrant color with 100% Adobe color gamut. You can achieve color accuracy better than the human eye can differentiate, through our X-Rite Pantone Color Calibration Service. The display is also available with Dolby Vision™ high dynamic range (HDR) technology, for true-to-life images and video. Enjoy increased brightness, expanded contrast, and refined detail, all in brilliant 10-bit color. Experience true sound Enjoy the rich, full audio of this workstation’s 2-watt stereo speakers to immerse you in sound. Plug in with your headphones and experience enhanced Dolby Atmos® enabled audio. Additionally, the dual far-field microphone ensures you’ll be heard clearly on every call. Stays connected and charged The ThinkPad P73 mobile workstation offers strong connectivity and long battery life. It’s certified for WiFi-6, the fastest WiFi ever, with data transfer speeds up to 9.6Gbps. WiFi-6 can handle more capacity and is built for crowded environments. With a battery that can stay charged up to nearly 17 hours¹, you won’t be tethered to a power outlet. If you’re running low, Rapid Charge provides 80% capacity in just an hour². A 60-minute lunch break or a layover can easily boost your battery up to 13 hours. ¹Based on testing with MobileMark 2014. Battery life varies significantly with settings, usage, and other factors. Reliable in any environment The ThinkPad P73 mobile workstation is tested against 12 military-grade requirements and more than 200 quality checks, to ensure it will run in extreme conditions. You can rely on it from the Arctic wilderness to desert dust storms, from zero gravity to spills and drops. Its durability will keep it working for you. Protects your data and privacy Keep your business data—and your privacy—safe with the ThinkPad P73 mobile workstation’s security features. Its discrete Trusted Platform Module (dTPM) encrypts data and works in conjunction with Windows 10 security features. ThinkShutter, a physical camera cover, blocks the lens to ensure that you’re only seen when you want to be. The match-on-chip touch fingerprint reader uses biometrics to log you in with a simple touch. Go ahead—forget your password! Quickly log in with ease with just the view of your face with the IR Camera via Windows Hello. What's more, the IR camera also includes Mirametrix Glance technology, which merges face-, eye-, and gaze-tracking, so the cursor automatically focuses, and application windows shift just by moving your eyes!



Specification:



Design
Colour name	Black
Product type	Mobile workstation
Housing material	Aluminum, Magnesium, Glass Fibre Reinforced Polymer (GFRP)
Form factor	Clamshell
Product colour	Black
Display
Dual-screen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
3D	No
Display brightness	300 cd/m²
Contrast ratio (typical)	700:1
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	17.3"
Native aspect ratio	16:9
Processor
Processor generation	9th gen Intel® Core™ i7
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Coffee Lake
Bus type	DMI
Tjunction	100 °C
Thermal Design Power (TDP)	45 W
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Maximum number of PCI Express lanes	16
Configurable TDP-down	35 W
ECC supported by processor	No
Processor cache type	Smart Cache
Processor cache	12 MB
Processor frequency	2.6 GHz
Processor model	i7-9850H
Processor boost frequency	4.6 GHz
Processor cores	6
Processor threads	12
System bus rate	8 GT/s
Processor socket	BGA 1440
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Memory
Memory form factor	SO-DIMM
Internal memory	16 GB
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory slots	4x SO-DIMM
Maximum internal memory	128 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	NVMe 3.0
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC
Total storage capacity	512 GB
Total SSDs capacity	512 GB
NVMe	Yes
Video
Graphics card Open GL support	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	16 GB
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card base frequency	350 MHz
Maximum on-board graphics card memory	64 GB
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E9B
On-board graphics card family	Intel® UHD Graphics
On-board graphics card 4K support	Yes
Number of discrete graphics cards installed	1
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics 630
Discrete graphics card model	NVIDIA Quadro RTX 5000
Discrete graphics memory type	GDDR6
Graphics card Open GL support	Yes
Audio
Audio chip	Synaptic CX11880
Audio decoders	Dolby Atmos
Number of microphones	2
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera signal format	720p
Front camera	Yes
Rear camera	No
Swivel webcam	No
Front camera HD type	HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX200
Near Field Communication (NFC)	No
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0
WWAN	Not installed
SIM card support	No
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
HDMI ports quantity	1
HDMI version	2.0
DVI port	No
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Charging port type	DC-in jack
Performance
GPS (satellite)	No
TV tuner integrated	No
Keyboard
Pointing device	ThinkPad UltraNav
Numeric keypad	Yes
Full-size keyboard	Yes
Windows keys	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Housing material	Aluminum, Magnesium, Glass Fibre Reinforced Polymer (GFRP)
GPS (satellite)	No
Form factor	Clamshell
Product colour	Black
TV tuner integrated	No
Discrete graphics card memory	16 GB
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Processor package size	42 x 28 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	191047
Intel® Optane™ Memory Ready	Yes
Intel® Turbo Boost Technology	2.0
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Memory Protection Extensions (Intel® MPX)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	7 h
Battery capacity	99 Wh
Fast charging	Yes
Power
AC adapter power	230 W
Security
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, SSD, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Certificates
Certification	TCG
Sustainability
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Weight & dimensions
Width	16.4" (416 mm)
Depth	11.1" (281 mm)
Height (front)	1.02" (2.59 cm)
Height (rear)	1.22" (3.1 cm)
Weight	7.5 lbs (3.4 kg)
Packaging data
Quick start guide	Yes
AC adapter included	Yes
Other features
GPS (satellite)	No
On-board graphics card dynamic frequency (max)	1150 MHz
Maximum on-board graphics card memory	64 GB
WLAN controller model	Intel Wi-Fi 6 AX200
On-board graphics card	Yes
3D	No
Swivel webcam	No
SIM card support	No
AC adapter included	Yes
TV tuner integrated	No
Packaging content
Quick start guide	Yes
AC adapter included	Yes
