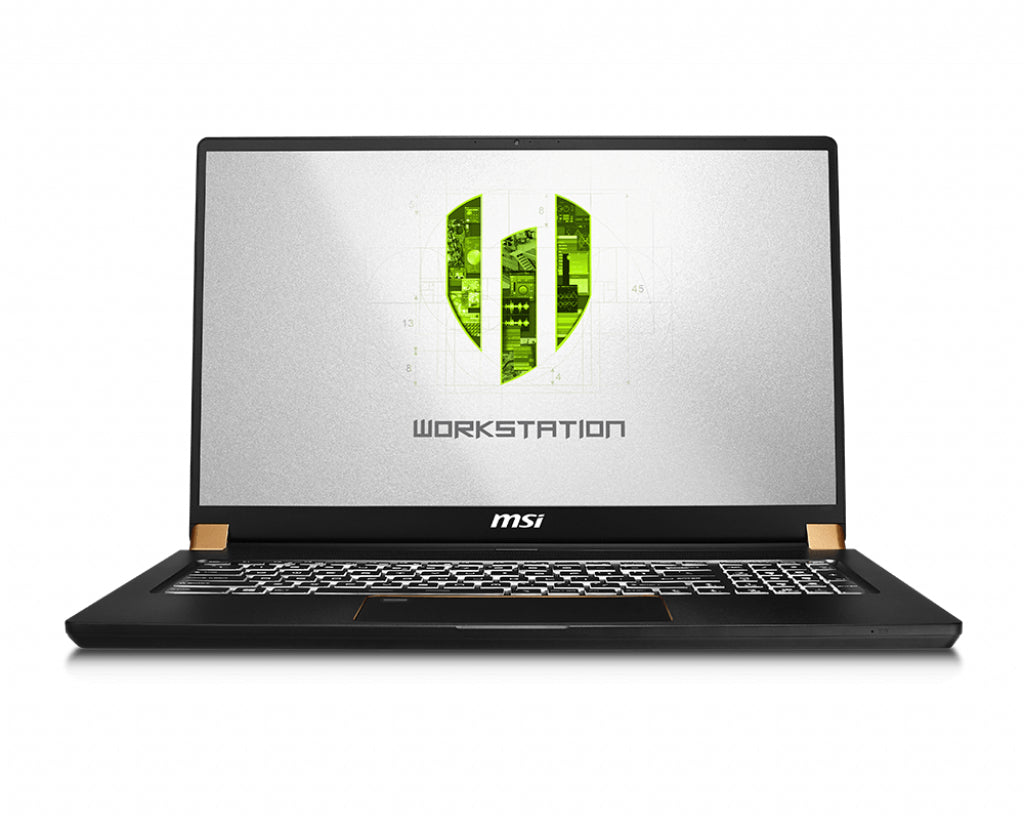

WS751240 - MSI WS75 9TK-1240 17.3IN NB

9th GEN INTEL® CORE™ i9 PROCESSOR Enjoy faster rendering with up to 45% performance gain! NVIDIA® QUADRO RTX™ SERIES GRAPHICS CARD Powered by the NVIDIA Turing™ architecture and the NVIDIA RTX™ platform, bringing the most significant advancement in computer graphics in over a decade to professional workflows. RTX STUDIO LAPTOPS At The Speed Of Imagination Work wherever, whenever, and faster than you ever imagined. RTX Studio laptops are crafted with precision to deliver dramatic improvements in productivity and performance. SILKY SMOOTH GLASS TOUCHPAD The premium glass touchpad offers an enlarged surface area and an extremely smooth finish, perfect for all your clicks, scrolls, and multi-touch gestures. Now 30% faster and more responsive than ever! Made for creatives who need power and flexibility. 17.3" IPS-LEVEL THIN BEZEL PANEL Maximize vision and minimize distractions with an ultra-thin bezel providing an incredible screen-to-body ratio for a compact chassis. The 4K, 72% NTSC color gamut IPS panel offers exceptional color fidelity and a high contrast rate, providing an accurate and vivid window that best depicts your creation. *Optional. May vary by SKU and country. THIN AND LIGHT Maximize vision and minimize distractions with a thin bezel providing an incredible screen-to-body ratio for a compact chassis. CREATOR CENTER A software for optimizing your workflow! SILKY SMOOTH GLASS TOUCHPAD The premium glass touchpad offers an enlarged surface area and an extremely smooth finish, perfect for all your clicks, scrolls, and multi-touch gestures. Now 30% faster and more responsive than ever! FINGERPRINT READER The built-in fingerprint sensor is designed for high-privacy protection and business security. Discrete TPM 2.0 TPM 2.0 is a secure crypto-processor technology that aids with actions such as generating, storing, and limiting the use of cryptographic keys. A VIEWING EXPERIENCE LIKE NO OTHER With MSI's True Color Technology, you're getting a display that is precisely calibrated to deliver vibrate colors, stunning details and sharp images. Get the perfect picture utilizing multiple viewing modes that provides the perfect setting, whether you're reviewing your designs, editing your timeline or watching a movie. Also, with MSI's Matrix Display, you can expand your work setup to 3 additional screens. (*depending on specification and configuration) THUNDERBOLT™ 3 Supports up to a data transfer rate of 40Gbps and includes 4K display capability, as well as support for USB3.2 ultra-speed devices, and up to an output of 5V and 3A for charging (Optional). ISV CERTIFICATION Officially recognized by 90% of major ISVs in the AEC Industry, media & entertainment, automobile, and simulation fields such as AutoDesk, Dassault Systems, Adobe, and more.



Specification:



Design
Product type	Mobile workstation
Form factor	Clamshell
Product colour	Gray
Display
HD type	Full HD
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	17.3"
Maximum refresh rate	144 Hz
Native aspect ratio	16:9
Processor
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Comet Lake
Tjunction	100 °C
Thermal Design Power (TDP)	45 W
PCI Express slots version	3.0
PCI Express configurations	1x16,2x8,1x8+2x4
Maximum number of PCI Express lanes	16
Configurable TDP-down	35 W
Processor cache type	Smart Cache
Processor cache	16 MB
Processor frequency	2.3 GHz
Processor model	i7-10875H
Processor boost frequency	5.1 GHz
Processor cores	8
Processor threads	16
System bus rate	8 GT/s
Processor socket	BGA 1440
Processor manufacturer	Intel
Processor family	10th gen Intel® Core™ i7
Memory
Memory form factor	SO-DIMM
Internal memory	32 GB
Memory layout (slots x size)	2 x 16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2666 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Storage
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total storage capacity	1000 GB
Total SSDs capacity	1000 GB
Graphics
Discrete graphics adapter	Yes
Discrete graphics adapter memory	6 GB
On-board graphics adapter dynamic frequency (max)	1200 MHz
On-board graphics adapter base frequency	350 MHz
On-board graphics adapter OpenGL version	4.5
On-board graphics adapter DirectX version	12.0
On-board graphics adapter ID	0x9BC4
On-board graphics adapter	Yes
On-board graphics adapter model	Intel® UHD Graphics
Discrete graphics adapter model	NVIDIA Quadro RTX 3000
Discrete graphics memory type	GDDR6
Audio
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Camera
Front camera	Yes
Video capturing speed	30 fps
Front camera HD type	HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
Thunderbolt version	3
Keyboard
Pointing device	Touchpad
Numeric keypad	Yes
Keyboard backlit	Yes
Keyboard backlit colour	White
Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro
Technical details
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Form factor	Clamshell
Product colour	Gray
Discrete graphics adapter memory	6 GB
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0
Processor package size	42 x 28 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	202329
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery capacity (Watt-hours)	82 Wh
Power
AC adapter power	180 W
Weight & dimensions
Width	15.6" (396.1 mm)
Depth	10.2" (259.4 mm)
Height	0.797" (20.2 mm)
Weight	5.29 lbs (2.4 kg)
Other features
On-board graphics adapter dynamic frequency (max)	1200 MHz
WLAN controller model	Intel Wi-Fi 6 AX201
On-board graphics adapter	Yes
