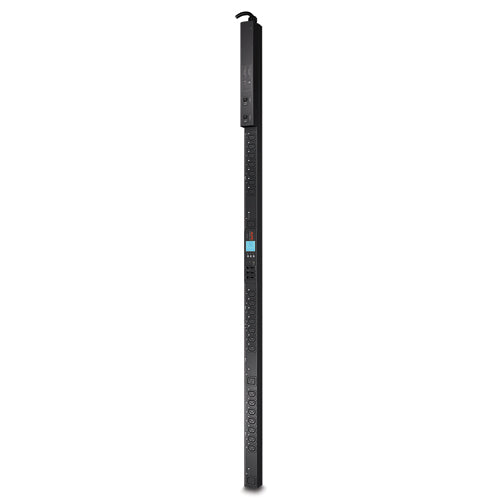

AP8641 - APC PDU2G SWITCH 0U 30A 200/208V 21C13 3C19

Network Management Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. Remote Individual Outlet Control Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment). Alarm Thresholds Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability) Local Current Monitoring Display The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only) Power Delays Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly. Load indicator LED Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Flash Upgradeable Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only) Integrates with InfraStruXure Central An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network



Specification:



Design
Type	Single-phase
PDU types	Metered, Switched
Mounting	Vertical
Product colour	Black
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Rack capacity	0U
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	IEC309
Features
Cable length	118.1" (3 m)
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Management features
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Ergonomics
Cable length	118.1" (3 m)
Power
Maximum power	7680 W
Nominal input voltage	230 V
Nominal output voltage	230 V
Power protection features	Overload
Maximum current	32 A
Maximum total current draw per phase	32 A
Maximum input current per phase	32 A
Load capacity	7680 VA
AC input frequency	50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)	2.2 x 2.01 x 72" (56 x 51 x 1829 mm)
Weight	18.1 lbs (8.23 kg)
Package weight	23.1 lbs (10.5 kg)
Package dimensions (WxDxH)	6.38 x 4.65 x 80.2" (162 x 118 x 2038 mm)
Packaging data
Package weight	23.1 lbs (10.5 kg)
Package dimensions (WxDxH)	6.38 x 4.65 x 80.2" (162 x 118 x 2038 mm)
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 590551.2" (0 - 15000 m)
Technical details
Sustainability certificates	RoHS
