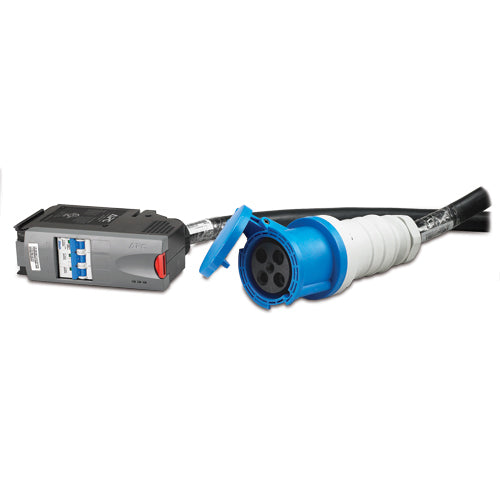

PDM3460IEC309-200 - APC IT POWER DISTRIBUTION MODULE

APC IT Power Distribution Module 3 Pole 4 Wire 60A IEC309 200cm A touch-safe Power Distribution Module (including circuit breaker, power cord, power connection, and circuit monitoring) that eliminates the need for hot work or shutdowns during expansion of the power distribution system. Network Management Provides proactive power and environmental management via web and/or SNMP Information Displays Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit. Smallest footprint Minimizes your real estate expenses System mobility PDU equipment can easily be relocated to accommodate a changing data center environment. LCD display Alpha-Numeric Display which displays system parameters and alarms. Multiple distribution options Superior design flexibility enables a wide range of customer requirements to be addressed. InfraStruXure Manager Compatible Enables centralized management via the APC InfraStruXure Manager. LED status indicators Quickly understand unit and power status with visual indicators. Modular Power Accessories Features & Benefits Safety Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection Manageability Power monitoring Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost Quick status information LEDs Access status information about the performance of the Power Distribution Module Convenience Toolless installation of breakers Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required Global product offering Standardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world



Specification:



Design
PDU types	Metered, Monitored
Display	LCD
Product colour	Gray
Certification	UL
Ports & interfaces
AC outlets quantity	1 AC outlet(s)
Output connections	1 x IEC 309
Features
Cable length	102.4" (2.6 m)
LED indicators	Yes
Certification	UL
Management features
Management platform	Web/SNMP
Ergonomics
Cable length	102.4" (2.6 m)
LED indicators	Yes
Display	LCD
Power
Nominal input voltage	208 V
Nominal output voltage	208 V
Maximum total current draw per phase	60 A
Maximum input current per phase	60 A
AC input frequency	60 Hz
Weight & dimensions
Dimensions (WxDxH)	17.5 x 16 x 5" (445 x 406 x 127 mm)
Weight	8.62 lbs (3.91 kg)
Package weight	9.81 lbs (4.45 kg)
Package dimensions (WxDxH)	17.5 x 16 x 5" (445 x 406 x 127 mm)
Packaging data
Package weight	9.81 lbs (4.45 kg)
Package dimensions (WxDxH)	17.5 x 16 x 5" (445 x 406 x 127 mm)
Technical details
Sustainability certificates	RoHS
