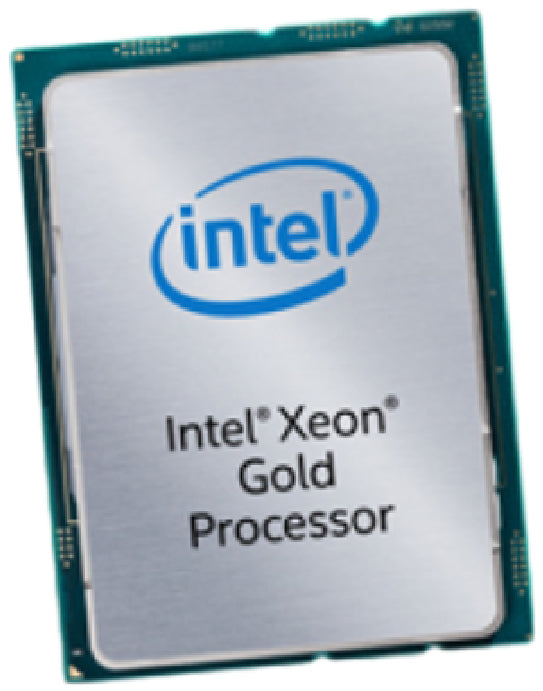

4XG7A08831 - Lenovo SR950 XEON 5120T 14C/105W/2.2GHZ

Processor options The SR950 supports the Gold and Platinum level processors in the Intel Xeon Processor Scalable Family, including the "top bin" highest performing 205 W processors available from Intel. The server supports up to four or eight processors, depending on the configuration selected, however processors are all installed within the 4U rack enclosure: - For configurations that support up to eight processors, the server supports 2, 4 or 8 processors. (There is no support for 6-processor configurations.) - For configurations of up to four processors (lower cost configuration, no upgrade path to eight processors), the server supports 2 or 4 processors



Specification:



Processor
Processor generation	1st Generation Intel® Xeon® Scalable
Processor base frequency	2.2 GHz
Cooler included	Yes
Thermal Design Power (TDP)	105 W
Processor cache	19.25 MB
Processor model	5120
Processor threads	28
Processor operating modes	64-bit
Processor boost frequency	3.2 GHz
Component for	Server/workstation
Processor lithography	14 nm
Processor family	Intel® Xeon® Gold
Processor cores	14
Processor socket	LGA 3647 (Socket P)
Processor cache type	L3
Memory
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Memory channels	Hexa-channel
ECC	Yes
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	105 W
Technical details
Intel TSX-NI	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
PCI Express slots version	3.0
Supported instruction sets	AVX 2.0,AVX-512,SSE4.2
Scalability	S4S
Embedded options available	No
Intel 64	Yes
Thermal Design Power (TDP)	105 W
Market segment	Server
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	L3
Features
Maximum number of PCI Express lanes	48
Thermal Design Power (TDP)	105 W
Processor package size	76 x 56.5 mm
PCI Express slots version	3.0
Supported instruction sets	AVX 2.0,AVX-512,SSE4.2
Scalability	S4S
Embedded options available	No
Market segment	Server
Processor special features
Intel 64	Yes
Conflict-Free processor	Yes
Intel Turbo Boost Max Technology 3.0	No
Intel® Speed Shift Technology	Yes
Intel® Optane™ Memory Ready	No
Intel TSX-NI	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® vPro™ Platform Eligibility	Yes
Operational conditions
Tcase	81 °C
Weight & dimensions
Processor package size	76 x 56.5 mm
