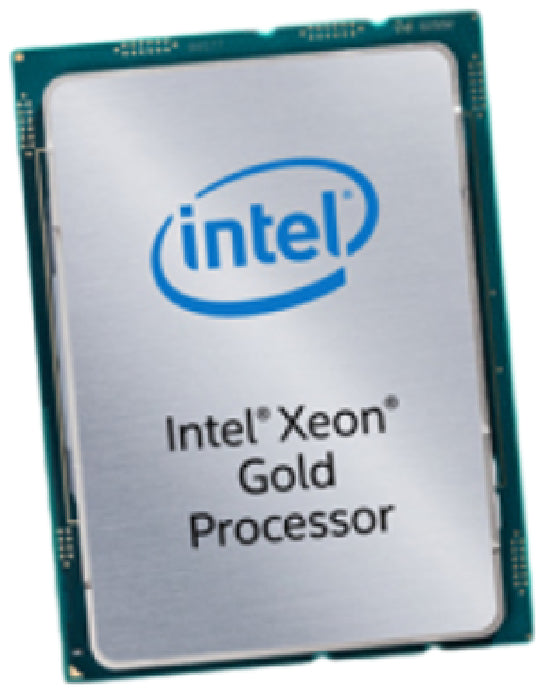

4XG7A08851 - Lenovo SR950 XEON 6130T 16C/125W/2.1GHZ

Processor options The SR950 supports the Gold and Platinum level processors in the Intel Xeon Processor Scalable Family, including the "top bin" highest performing 205 W processors available from Intel. The server supports up to four or eight processors, depending on the configuration selected, however processors are all installed within the 4U rack enclosure: - For configurations that support up to eight processors, the server supports 2, 4 or 8 processors. (There is no support for 6-processor configurations.) - For configurations of up to four processors (lower cost configuration, no upgrade path to eight processors), the server supports 2 or 4 processors



Specification:



Processor
Processor generation	1st Generation Intel® Xeon® Scalable
Processor base frequency	2 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Skylake
Thermal Design Power (TDP)	125 W
Processor cache	27.5 MB
Processor model	6138T
Processor threads	40
Processor operating modes	64-bit
Processor boost frequency	3.7 GHz
Stepping	H0
Component for	Server/workstation
Processor lithography	14 nm
Processor family	Intel® Xeon® Gold
Processor cores	20
Processor socket	LGA 3647 (Socket P)
Processor series	Intel Xeon Gold 6000 Series
Processor cache type	L3
Memory
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory channels	Hexa-channel
ECC	Yes
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	125 W
Technical details
Intel TSX-NI	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
PCI Express slots version	3.0
Supported instruction sets	AVX,AVX 2.0,SSE4.2
Scalability	S4S
Embedded options available	Yes
Intel 64	Yes
Thermal Design Power (TDP)	125 W
Processor series	Intel Xeon Gold 6000 Series
Market segment	Server
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	L3
Features
Maximum number of PCI Express lanes	48
Thermal Design Power (TDP)	125 W
PCI Express slots version	3.0
Supported instruction sets	AVX,AVX 2.0,SSE4.2
Scalability	S4S
Embedded options available	Yes
Market segment	Server
Processor special features
Intel 64	Yes
Conflict-Free processor	Yes
Intel® Speed Shift Technology	Yes
Intel® Optane™ Memory Ready	No
Intel TSX-NI	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® vPro™ Platform Eligibility	Yes
Operational conditions
Tcase	86 °C
