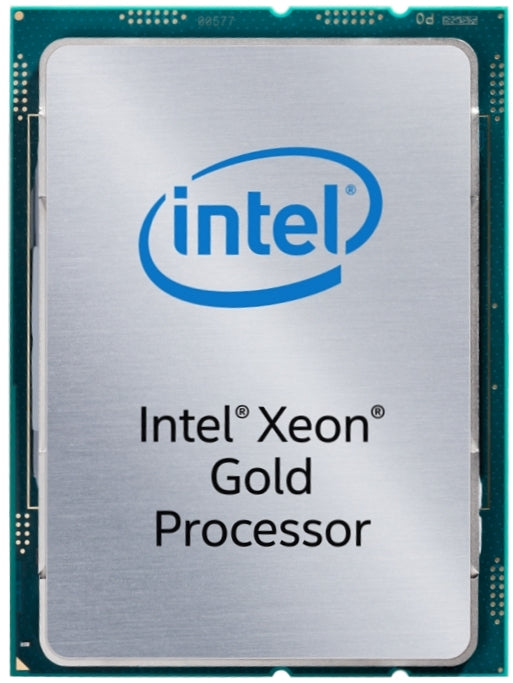

7XG7A05554 - Lenovo SR630 XEON 6146 12C/165W/3.2GHZ

Intel® Speed Shift Technology Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency. Intel® Turbo Boost Technology Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t. Intel® vPro™ Technology Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations. Intel® Hyper-Threading Technology Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.



Specification:



Processor
Processor generation	1st Generation Intel® Xeon® Scalable
Processor base frequency	2.6 GHz
Cooler included	No
Processor codename	Skylake
Thermal Design Power (TDP)	150 W
Processor cache	22 MB
Processor model	6142
Processor threads	32
Processor operating modes	64-bit
Processor boost frequency	3.7 GHz
Stepping	H0
Component for	Server/workstation
Processor lithography	14 nm
Processor family	Intel® Xeon® Gold
Processor cores	16
Processor socket	LGA 3647 (Socket P)
Processor series	Intel Xeon Gold 6000 Series
Processor cache type	L3
Memory
Maximum internal memory supported by processor	768 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory channels	Hexa-channel
ECC	Yes
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	150 W
Technical details
Intel TSX-NI	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
PCI Express slots version	3.0
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Scalability	S4S
Embedded options available	No
Intel 64	Yes
Thermal Design Power (TDP)	150 W
Processor series	Intel Xeon Gold 6000 Series
Market segment	Server
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	L3
Features
Maximum number of PCI Express lanes	48
Thermal Design Power (TDP)	150 W
PCI Express slots version	3.0
Supported instruction sets	AVX, AVX 2.0, AVX-512, SSE4.2
Scalability	S4S
Embedded options available	No
Market segment	Server
Harmonized System (HS) code	85423119
Processor special features
Intel 64	Yes
Conflict-Free processor	Yes
Intel Turbo Boost Max Technology 3.0	No
Intel® Speed Shift Technology	Yes
Intel® Optane™ Memory Ready	No
Intel TSX-NI	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® vPro™ Platform Eligibility	Yes
Operational conditions
Tcase	85 °C
