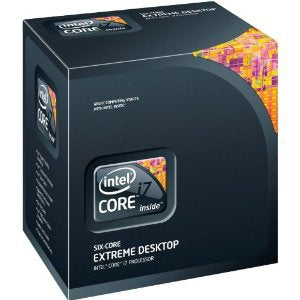

BX80613I7980X - Intel CORE I7-980X 3.33 GHZ

Intel Core i7-980X. Processor family: Intel® Core™ i7 Extreme Edition, Processor socket: LGA 1366 (Socket B), Processor lithography: 32 nm. Memory channels: Triple-channel, Maximum internal memory supported by processor: 24 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Desktop, Processing Die size: 239 mm², Supported instruction sets: SSE4.2. Package width: 5.87" (149 mm), Package depth: 7.09" (180 mm), Package height: 6.57" (167 mm). Processor package size: 42.5mm x 45mm



Specification:



Processor
Processor generation	Intel® Core™ i7
Processor base frequency	3.46 GHz
Processor manufacturer	Intel
Cooler included	Yes
Memory bandwidth supported by processor (max)	25.6 GB/s
Thermal Design Power (TDP)	130 W
Processor cache	12 MB
Processor ARK ID	52585
Processor model	i7-990X
Processor threads	12
System bus rate	6.4 GT/s
Processor operating modes	64-bit
VID Voltage Range	0.8 - 1.375 V
Processor boost frequency	3.73 GHz
Stepping	B1
Number of QPI links	1
CPU multiplier (bus/core ratio)	26
Bus type	QPI
Component for	PC
Processor lithography	32 nm
Processor family	Intel® Core™ i7 Extreme Edition
Processor front side bus	1066 MHz
Processor cores	6
Box	Yes
Processor socket	LGA 1366 (Socket B)
Processor code	SLBVZ
Processor series	Intel Core i7-900 Desktop Extreme Edition Series
Processor cache type	Smart Cache
Generation	9th Generation
Memory
Maximum internal memory supported by processor	24 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Triple-channel
ECC	No
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	130 W
VID Voltage Range	0.8 - 1.375 V
Technical details
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	1.0
Intel Trusted Execution Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Processing Die size	239 mm²
Supported instruction sets	SSE4.2
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	No
Embedded options available	No
CPU configuration (max)	1
Bandwidth	26214.4 MB/s
Processor code	SLBVZ
Product type	Processor
Processor cache	12288 KB
Intel 64	Yes
Thermal Design Power (TDP)	130 W
Supported memory types	DDR3-SDRAM
Status	Discontinued
Processor series	Intel Core i7-900 Desktop Extreme Edition Series
Physical Address Extension (PAE)	36 bit
Market segment	Desktop
Launch date	Q1'11
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	6.4
Maximum memory	24 GB
Processor brand name	Intel Core i7 Extreme Edition Intel Core i7 Processor Extreme Edition
Last change	63903513
Product family	Previous Generation Intel Core i7 Extreme Processor
Bus speed	6.4 GT/s
Features
Thermal Design Power (TDP)	130 W
Processor package size	42.5mm x 45mm
Processor ARK ID	52585
Thermal Monitoring Technologies	No
Idle States	Yes
Execute Disable Bit	Yes
Processing Die size	239 mm²
Supported instruction sets	SSE4.2
Embedded options available	No
CPU configuration (max)	1
Bandwidth	26214.4 MB/s
Processor code	SLBVZ
Physical Address Extension (PAE)	36 bit
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
Processor special features
Intel 64	Yes
Conflict-Free processor	No
Intel® Turbo Boost Technology	1.0
Intel Trusted Execution Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	No
Intel Virtualization Technology (VT-x)	Yes
Operational conditions
Tcase	67.9 °C
Packaging data
Package width	5.87" (149 mm)
Package depth	7.09" (180 mm)
Package height	6.57" (167 mm)
Package type	Retail box
Weight & dimensions
Processor package size	42.5mm x 45mm
Package width	5.87" (149 mm)
Package depth	7.09" (180 mm)
Package height	6.57" (167 mm)
Other features
Intel® Virtualization Technology (Intel® VT)	VT-x
Maximum internal memory	24 GB
Maximum internal memory	24576 MB
CPU configuration (max)	1
Processor code	SLBVZ
