Description

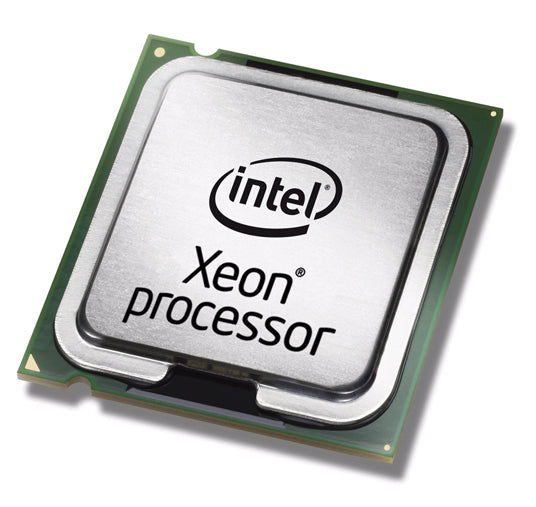

Intel Xeon E3-1276V3. Processor family: Intel® Xeon® E3 V3 Family, Processor socket: LGA 1150 (Socket H3), Component for: Server/workstation. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM,DDR3L-SDRAM. On-board graphics adapter model: Intel® HD Graphics P4600, Maximum on-board graphics adapter memory: 1.7 GB, On-board graphics adapter outputs supported: Embedded DisplayPort (eDP),DisplayPort,HDMI,VGA (D-Sub). PCI Express configurations: 1x16,2x8,1x8+2x4, Supported instruction sets: SSE4.1,SSE4.2,AVX 2.0, Scalability: 1S. Intel® Turbo Boost Technology 2.0 frequency: 4 GHz
Specification:
| Processor | |
|---|---|
| Processor base frequency | 2.7 GHz |
| Processor manufacturer | Intel |
| Cooler included | Yes |
| Processor codename | Haswell |
| Memory bandwidth supported by processor (max) | 21.3 GB/s |
| Thermal Design Power (TDP) | 53 W |
| Processor cache | 2 MB |
| Processor ARK ID | 78955 |
| Processor model | G1820 |
| Processor threads | 2 |
| System bus rate | 5 GT/s |
| Processor operating modes | 64-bit |
| Stepping | C0 |
| Bus type | DMI |
| Component for | PC |
| Processor lithography | 22 nm |
| Processor family | Intel® Celeron® G |
| Processor cores | 2 |
| Box | Yes |
| Processor socket | LGA 1150 (Socket H3) |
| Processor code | SR1CN |
| Processor series | Intel Celeron Processor G1000 Series for Desktop |
| Processor cache type | Smart Cache |
| Memory | |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM, DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1333 MHz |
| Memory bandwidth supported by processor (max) | 21.3 GB/s |
| Supported memory types | DDR3-SDRAM, DDR3L-SDRAM |
| Memory channels | Dual-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI, VGA (D-Sub) |
| On-board graphics card maximum resolution (DisplayPort) | 2560 x 1600 pixels |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 2560 x 1600 pixels |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (VGA) | 60 Hz |
| Maximum graphics card memory | 1740 MB |
| Maximum on-board graphics card memory | 1.7 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card maximum resolution (HDMI) | 1920 x 1080 pixels |
| On-board graphics card maximum resolution (VGA) | 1920 x 1200 pixels |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card OpenGL version | 4.3 |
| On-board graphics card model | Intel® HD Graphics |
| On-board graphics card | Yes |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum graphics card memory | 1.7 GB |
| Power | |
| Thermal Design Power (TDP) | 53 W |
| Technical details | |
| Intel Stable Image Platform Program (SIPP) | No |
| Cache memory | 2 MB |
| Thermal solution specification | PCG 2013C |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Scalability | 1S |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Graphics & IMC lithography | 22 nm |
| Embedded options available | Yes |
| CPU configuration (max) | 1 |
| Bandwidth | 5 MB/s |
| Processor code | SR1CN |
| Graphics output | eDP/DP/HDMI/DVI/VGA |
| Product type | Processor |
| Processor cache | 2048 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel 64 | Yes |
| Maximum graphics card memory | 1740 MB |
| Thermal Design Power (TDP) | 53 W |
| Supported memory types | DDR3-SDRAM, DDR3L-SDRAM |
| Status | Launched |
| Product name | Intel Celeron G1820 (2M Cache, 2.70 GHz) |
| Processor series | Intel Celeron Processor G1000 Series for Desktop |
| OpenGL support | Yes |
| Number of graphics cores | 10 |
| Maximum resolution & refresh rate (VGA) | 1920x1200@60Hz |
| Maximum resolution & refresh rate (Integrated Flat Panel) | 2560x1600@60Hz |
| Maximum resolution & refresh rate (HDMI) | 1920x1080@60Hz |
| Maximum resolution & refresh rate (DisplayPort) | 2560x1600@60Hz |
| Market segment | Desktop |
| Launch date | Q1'14 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Graphics max dynamic frequency | 1.05 GHz |
| Processor cache type | Smart Cache |
| Bus type units | GT/s |
| Bus bandwidth | 5 |
| Born on date | Q1'14 |
| Maximum memory | 32 GB |
| Intel TSX-NI version | 0.00 |
| Processor brand name | Intel Celeron |
| Last change | 63903513 |
| Product family | Intel Celeron Processor |
| Maximum graphics card memory | 1.7 GB |
| Bus speed | 5 GT/s |
| Features | |
| Maximum number of PCI Express lanes | 16 |
| Thermal Design Power (TDP) | 53 W |
| Processor package size | 37.5 x 37.5 mm |
| Processor ARK ID | 78955 |
| Thermal solution specification | PCG 2013C |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Scalability | 1S |
| Graphics & IMC lithography | 22 nm |
| Embedded options available | Yes |
| CPU configuration (max) | 1 |
| Bandwidth | 5 MB/s |
| Processor code | SR1CN |
| Market segment | Desktop |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 3A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Processor special features | |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel 64 | Yes |
| Conflict-Free processor | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel® vPro™ Platform Eligibility | No |
| Intel® Transactional Synchronization Extensions | No |
| Operational conditions | |
| Tcase | 72 °C |
| Packaging data | |
| Package type | Retail box |
| Weight & dimensions | |
| Processor package size | 37.5 x 37.5 mm |
| Other features | |
| Cache memory | 2 MB |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Maximum internal memory | 32 GB |
| Maximum internal memory | 32768 MB |
| CPU configuration (max) | 1 |
| Compatibility | Intel S1200V3RPL, S1200V3RPS, S1200V3RPO, S1200V3RPM |
| Processor code | SR1CN |
| Graphics output | eDP/DP/HDMI/DVI/VGA |
