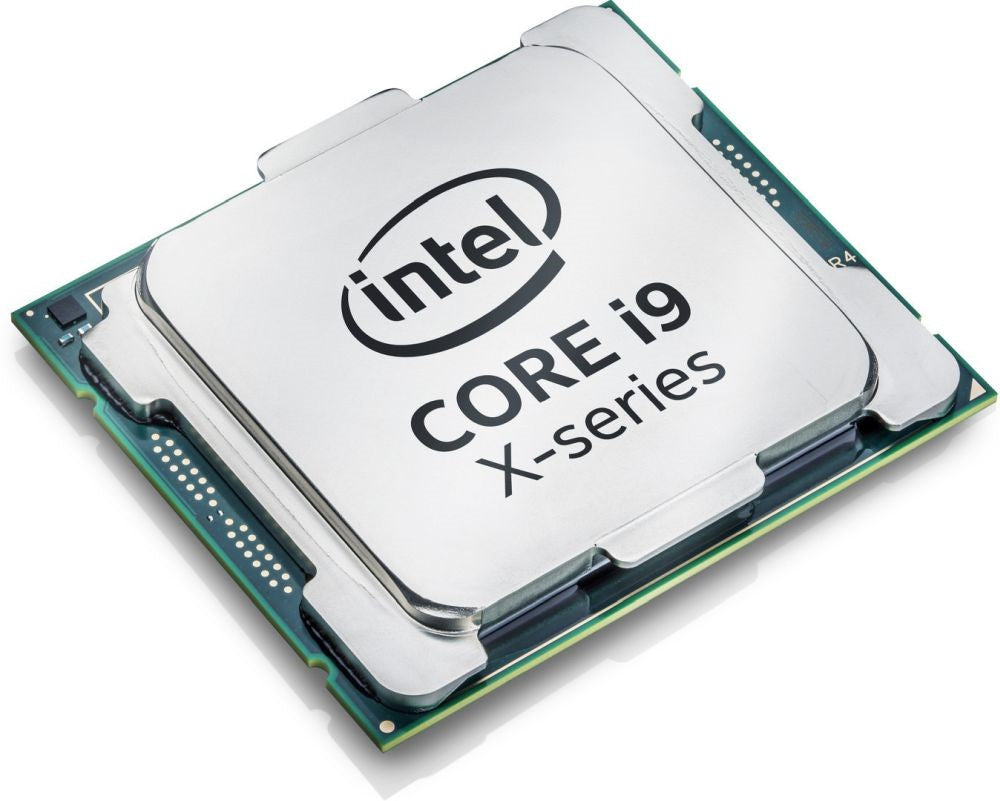

CD8067303753300 - Intel I9-7920X 4.3G 16.5MB

Intel Core i9-7920X. Processor family: Intel® Core™ i9 X-series, Processor socket: LGA 2066 (Socket R4), Processor lithography: 14 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 128 GB, Memory types supported by processor: DDR4-SDRAM. Market segment: Desktop, Supported instruction sets: SSE4.1,SSE4.2,AVX 2.0,AVX-512, Scalability: 1S. Intel® Turbo Boost Max Technology 3.0 frequency: 4.4 GHz. Package type: Retail box



Specification:



Processor
Processor generation	7th gen Intel® Core™ i7
Processor base frequency	3.5 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Skylake
Memory bandwidth supported by processor (max)	77 GB/s
Thermal Design Power (TDP)	140 W
Processor cache	8.25 MB
Processor ARK ID	123589
Processor model	i7-7800X
Processor threads	12
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor boost frequency	4 GHz
Component for	PC
Processor lithography	14 nm
Processor family	Intel® Core™ i7 X-series
Processor cores	6
Box	No
Processor socket	LGA 2066 (Socket R4)
Processor cache type	L3
Generation	7th Generation
Memory
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Memory bandwidth supported by processor (max)	77 GB/s
Supported memory types	DDR4-SDRAM
Memory channels	Quad-channel
ECC	No
Graphics
Discrete graphics adapter	No
On-board graphics adapter model	Not available
On-board graphics adapter	No
Discrete graphics adapter model	Not available
Power
Thermal Design Power (TDP)	140 W
Technical details
Thermal solution specification	PCG 2017X
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
PCI Express slots version	3.0
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0,AVX-512
Scalability	1S
Embedded options available	No
CPU configuration (max)	1
Product type	Processor
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	140 W
Supported memory types	DDR4-SDRAM
Status	Discontinued
Market segment	Desktop
Launch date	Q2'17
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	L3
Maximum memory	128 GB
AVX-512 Fused Multiply-Add (FMA) units	2
Bus speed	8 GT/s
Features
Maximum number of PCI Express lanes	28
Thermal Design Power (TDP)	140 W
Processor ARK ID	123589
Thermal solution specification	PCG 2017X
Execute Disable Bit	Yes
PCI Express slots version	3.0
Supported instruction sets	SSE4.1,SSE4.2,AVX 2.0,AVX-512
Scalability	1S
Embedded options available	No
CPU configuration (max)	1
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Intel® Optane™ Memory Ready	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Virtualization Technology (VT-x)	Yes
AVX-512 Fused Multiply-Add (FMA) units	2
Intel® Turbo Boost Technology 2.0 frequency	4 GHz
Operational conditions
Tjunction	100 °C
Packaging data
Package type	Retail box
Other features
Maximum internal memory	128 GB
CPU configuration (max)	1
