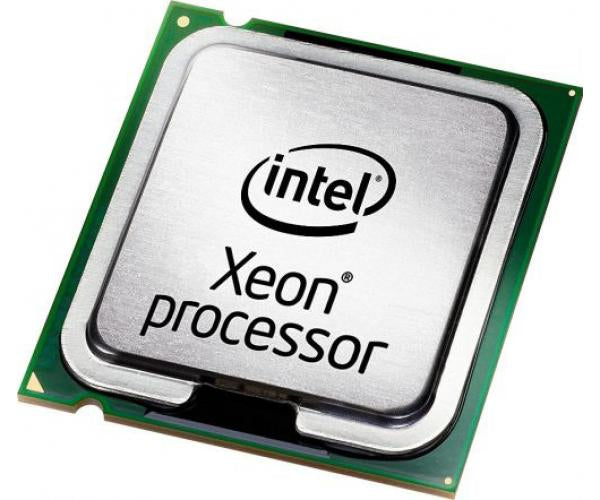

CM8063701098101 - Intel E3-1230V2 3.30G 4C 69W PROC

Intel Xeon E3-1230V2. Processor family: Intel® Xeon® E3 V2 Family, Processor socket: LGA 1155 (Socket H2), Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM. Market segment: Server, PCI Express configurations: 1x16, 1x4, 2x8, 1x8, 3x4, Supported instruction sets: SSE4.1, SSE4.2, AVX. Intel® Turbo Boost Technology 2.0 frequency: 3.7 GHz. Package width: 3.19" (81 mm), Package depth: 4.49" (114 mm), Package height: 4.02" (102 mm)



Specification:



Processor
Processor base frequency	2.3 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Ivy Bridge
Memory bandwidth supported by processor (max)	25.6 GB/s
Thermal Design Power (TDP)	17 W
Processor cache	3 MB
Processor ARK ID	65735
Processor model	E3-1220LV2
Processor threads	4
System bus rate	5 GT/s
Processor operating modes	64-bit
Processor boost frequency	3.5 GHz
Stepping	L1
L3 cache speed	2.3 GHz
CPU multiplier (bus/core ratio)	23
Bus type	DMI
Component for	Server/workstation
Processor lithography	22 nm
Processor family	Intel® Xeon® E3 V2 Family
Processor cores	2
Box	No
Processor socket	LGA 1155 (Socket H2)
Processor code	SR0R6
Processor series	Intel Xeon E3-1200 v2
Processor cache type	Smart Cache
Memory
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Supported memory types	DDR3-SDRAM
Memory channels	Dual-channel
ECC	Yes
Power
Thermal Design Power (TDP)	17 W
Technical details
Cache memory	3 MB
Intel TSX-NI	No
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Smart Cache	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	Yes
Intel Fast Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
PCI Express slots version	3.0
PCI Express configurations	1x16, 1x4, 2x8, 1x8, 3x4
Supported instruction sets	SSE4.1, SSE4.2, AVX
L3 cache speed	2.3 GHz
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Demand Based Switching	Yes
Embedded options available	No
CPU configuration (max)	1
Processor code	SR0R6
Product type	Processor
Processor cache	3072 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	17 W
Supported memory types	DDR3-SDRAM
Status	Discontinued
Product name	Intel Xeon E3-1220L v2 (3M Cache, 2.30 GHz)
Processor series	Intel Xeon E3-1200 v2
Market segment	Server
Launch date	Q2'12
Intel Virtualization Technology (VT-x)	Yes
Intel Identity Protection Technology version	1.00
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	5
Born on date	Q2'12
Maximum memory	32.23 GB
Intel TSX-NI version	0.00
Processor brand name	Intel Xeon v2
Last change	63903513
Product family	Intel Xeon Processor E3 v2 Family
Bus speed	5 GT/s
Features
Thermal Design Power (TDP)	17 W
Processor package size	37.5 x 37.5 mm
Processor ARK ID	65735
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16, 1x4, 2x8, 1x8, 3x4
Supported instruction sets	SSE4.1, SSE4.2, AVX
Embedded options available	No
CPU configuration (max)	1
Processor code	SR0R6
Market segment	Server
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	No
Intel TSX-NI	No
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Smart Cache	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel Flex Memory Access	Yes
Intel Fast Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Demand Based Switching	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Identity Protection Technology version	1.00
Intel TSX-NI version	0.00
Intel® vPro™ Platform Eligibility	Yes
Intel® Turbo Boost Technology 2.0 frequency	3.5 GHz
Intel® Transactional Synchronization Extensions	No
Weight & dimensions
Processor package size	37.5 x 37.5 mm
Other features
Cache memory	3 MB
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Maximum internal memory	32.23 GB
Maximum internal memory	33000 MB
CPU configuration (max)	1
Compatibility	Intel S1200KP, S1200KPR
Processor code	SR0R6
