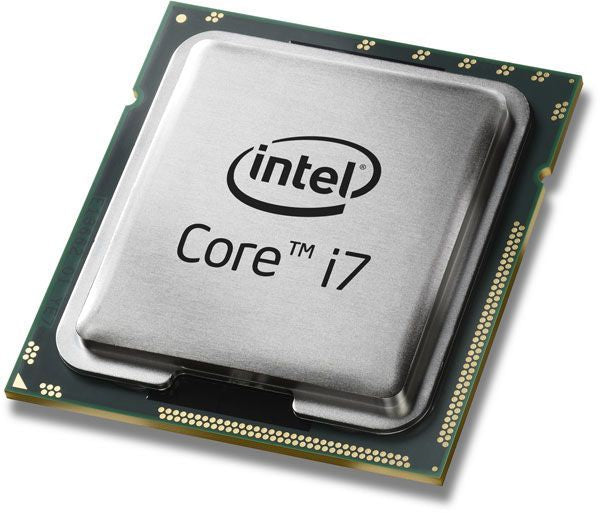

CM8064801547964S - Intel CORE I7-5960X FC-LGA12A 3GHZ

Media and creation-ready Take content creation to the next level with the new 8-core Intel® Core™ i7 processor Extreme Edition. Take advantage of massive 16-thread performance for faster video encoding, image rendering, and audio production. Unlock the power within Enjoy unmatched performance without additional hardware thanks to built-in Intel® technologies and overclocking enabled—then set system specs just the way you like for added flexibility. Gaming like never before Dominate competition with an unlocked Intel processor, smart Intel-only features, and overclocking for a flexible and powerful weapon when you demand unrivaled performance.



Specification:



Processor
Processor generation	5th gen Intel® Core™ i7
Processor base frequency	3.3 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Haswell E
Memory bandwidth supported by processor (max)	68 GB/s
Thermal Design Power (TDP)	140 W
Processor cache	15 MB
Processor ARK ID	82932
Processor model	i7-5820K
Processor threads	12
Processor operating modes	64-bit
Processor boost frequency	3.6 GHz
L3 cache speed	3.3 GHz
Bus type	QPI
Component for	PC
Processor lithography	22 nm
Processor family	Intel® Core™ i7 X-series
Processor cores	6
Box	No
Processor socket	LGA 2011-v3
Processor code	SR20S
Processor series	Intel Core i7-5800 Desktop Series
Processor cache type	Smart Cache
Generation	5th Generation
Memory
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133 MHz
Memory bandwidth supported by processor (max)	68 GB/s
Supported memory types	DDR4-SDRAM
Memory channels	Quad-channel
ECC	No
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	140 W
Technical details
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	No
Intel® Smart Response Technology	Yes
Intel® Smart Cache	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
PCI Express slots version	3.0
Supported instruction sets	SSE4.2, AVX 2.0
Scalability	1S
L3 cache speed	3.3 GHz
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	No
Embedded options available	No
CPU configuration (max)	1
Processor code	SR20S
Product type	Processor
Processor cache	15360 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	140 W
Supported memory types	DDR4-SDRAM
Status	Discontinued
Processor series	Intel Core i7-5800 Desktop Series
Market segment	Desktop
Launch date	Q3'14
Intel Virtualization Technology (VT-x)	Yes
Intel Smart Response Technology version	1.00
Intel Identity Protection Technology version	1.00
Processor cache type	Smart Cache
Bus type units	GT/s
Maximum memory	64 GB
Processor brand name	Intel Core i7 X-series Intel Core i7 X-series processor
Last change	63903513
Product family	Intel High End Desktop Processors
Bus speed	0 GT/s
Features
Maximum number of PCI Express lanes	28
Thermal Design Power (TDP)	140 W
Processor package size	52.5mm x 45mm
Processor ARK ID	82932
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
Supported instruction sets	SSE4.2, AVX 2.0
Scalability	1S
Embedded options available	No
CPU configuration (max)	1
Processor code	SR20S
Market segment	Desktop
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	No
Intel® Smart Response Technology	Yes
Intel® Smart Cache	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Demand Based Switching	No
Intel Virtualization Technology (VT-x)	Yes
Intel Smart Response Technology version	1.00
Intel Identity Protection Technology version	1.00
Intel® vPro™ Platform Eligibility	No
Intel® Turbo Boost Technology 2.0 frequency	3.6 GHz
Operational conditions
Tcase	66.8 °C
Packaging data
Package width	1.73" (44 mm)
Package depth	5.51" (140 mm)
Package height	4.61" (117 mm)
Package weight	4.59 oz (130 g)
Package type	Retail box
Weight & dimensions
Processor package size	52.5mm x 45mm
Package width	1.73" (44 mm)
Package depth	5.51" (140 mm)
Package height	4.61" (117 mm)
Package weight	4.59 oz (130 g)
Other features
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Maximum internal memory	64 GB
Maximum internal memory	65536 MB
CPU configuration (max)	1
Processor code	SR20S
