Description

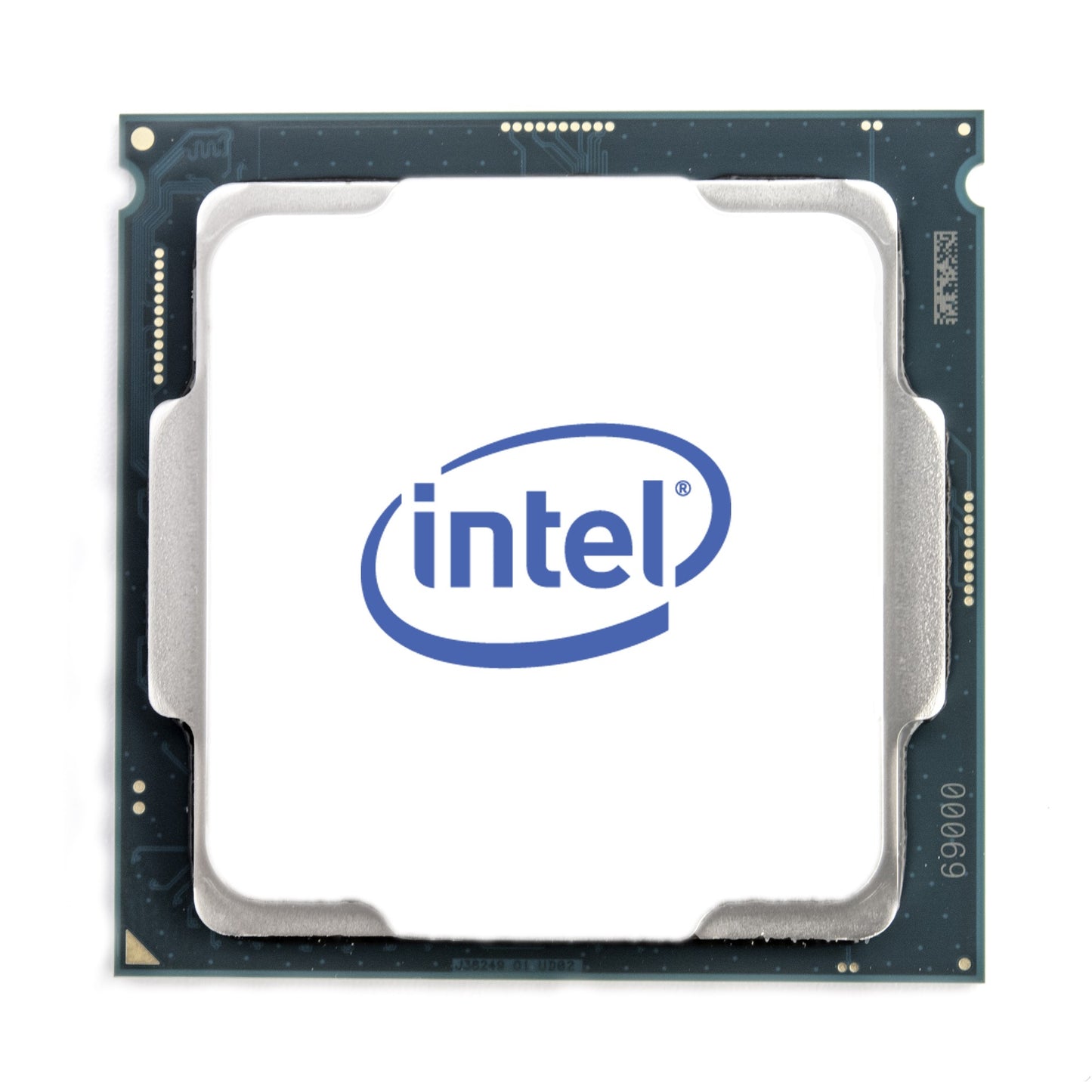

Intel Pentium Gold G5600. Processor family: Intel® Pentium® Gold, Processor socket: LGA 1151 (Socket H4), Component for: PC. Memory channels: Dual-channel, Maximum internal memory supported by processor: 64 GB, Memory types supported by processor: DDR4-SDRAM. On-board graphics adapter model: Intel® UHD Graphics 630, Maximum on-board graphics adapter memory: 64 GB, On-board graphics adapter outputs supported: DisplayPort,Embedded DisplayPort (eDP),HDMI. PCI Express configurations: 1x16,2x8,1x8+2x4, Supported instruction sets: SSE4.1,SSE4.2, Scalability: 1S. Package type: Retail box
Â
Specification:
Â
| Processor | |
|---|---|
| Processor base frequency | 3.8 GHz |
| Processor manufacturer | Intel |
| Cooler included | No |
| Processor codename | Coffee Lake |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Thermal Design Power (TDP) | 54 W |
| Processor cache | 4 MB |
| Processor ARK ID | 129946 |
| Processor model | G5500 |
| Processor threads | 4 |
| System bus rate | 8 GT/s |
| Processor operating modes | 64-bit |
| Stepping | B0 |
| Bus type | DMI3 |
| Component for | PC |
| Processor lithography | 14 nm |
| Processor family | Intel® Pentium® Gold |
| Processor cores | 2 |
| Box | No |
| Processor socket | LGA 1151 (Socket H4) |
| Processor code | SR3YD |
| Processor series | Intel Pentium Gold Series |
| Processor cache type | Smart Cache |
| Memory | |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| ECC | Yes |
| Graphics | |
| Discrete graphics adapter | No |
| On-board graphics adapter outputs supported | DisplayPort,Embedded DisplayPort (eDP),HDMI |
| On-board graphics adapter maximum resolution (DisplayPort) | 4096 x 2304 pixels |
| On-board graphics adapter ID | 0x3E91 |
| On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 pixels |
| On-board graphics adapter 4K support | Yes |
| On-board graphics adapter refresh rate at maximum resolution (HDMI) | 24 Hz |
| On-board graphics adapter refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
| Maximum on-board graphics adapter memory | 64 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter maximum resolution (HDMI) | 4096 x 2304 pixels |
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics adapter model | Intel® UHD Graphics 630 |
| On-board graphics adapter | Yes |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| On-board graphics adapter base frequency | 350 MHz |
| Discrete graphics adapter model | Not available |
| Maximum graphics adapter memory | 64 GB |
| Power | |
| Thermal Design Power (TDP) | 54 W |
| Technical details | |
| Intel Stable Image Platform Program (SIPP) | No |
| Thermal solution specification | PCG 2015C |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
| Supported instruction sets | SSE4.1,SSE4.2 |
| Scalability | 1S |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Processor code | SR3YD |
| Product type | Processor |
| Processor cache | 4096 KB |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Thermal Design Power (TDP) | 54 W |
| Supported memory types | DDR4-SDRAM |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Status | Discontinued |
| Processor series | Intel Pentium Gold Series |
| Maximum resolution & refresh rate (Integrated Flat Panel) | 4096x2304@60Hz |
| Maximum resolution & refresh rate (HDMI) | 4096x2304@24Hz |
| Maximum resolution & refresh rate (DisplayPort) | 4096x2304@60Hz |
| Market segment | Desktop |
| Launch date | Q2'18 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Processor cache type | Smart Cache |
| Bus type units | GT/s |
| Bus bandwidth | 8 |
| Maximum memory | 64 GB |
| Intel TSX-NI version | 0.00 |
| Processor brand name | Intel Pentium Gold (2017) Intel Pentium Gold Processor (2017) |
| Last change | 63903513 |
| Product family | Intel Pentium Processor |
| Maximum graphics adapter memory | 64 GB |
| Processor ID | 0x3E91 |
| Bus speed | 8 GT/s |
| Features | |
| On-board graphics adapter ID | 0x3E91 |
| Maximum number of PCI Express lanes | 16 |
| Thermal Design Power (TDP) | 54 W |
| Processor package size | 37.5 x 37.5 mm |
| Processor ARK ID | 129946 |
| Thermal solution specification | PCG 2015C |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,2x8,1x8+2x4 |
| Supported instruction sets | SSE4.1,SSE4.2 |
| Scalability | 1S |
| Embedded options available | No |
| CPU configuration (max) | 1 |
| Processor code | SR3YD |
| Market segment | Desktop |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| PCI Express CEM revision | 3.0 |
| Processor special features | |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Intel® Memory Protection Extensions (Intel® MPX) | Yes |
| Intel® Device Protection Technology (Intel® DPT) with Boot Guard | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® OS Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Intel Trusted Execution Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel® Boot Guard | Yes |
| Intel® vPro™ Platform Eligibility | No |
| Intel® Transactional Synchronization Extensions | No |
| Operational conditions | |
| Tjunction | 100 °C |
| Packaging data | |
| Package type | Retail box |
| Weight & dimensions | |
| Processor package size | 37.5 x 37.5 mm |
| Other features | |
| Maximum internal memory | 64 GB |
| Maximum internal memory | 65536 MB |
| CPU configuration (max) | 1 |
| Processor code | SR3YD |
