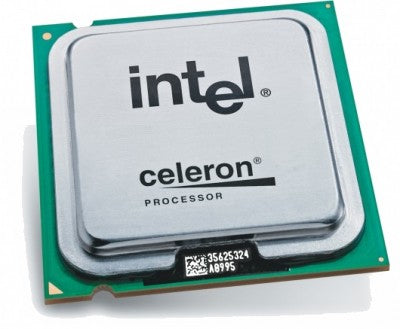

FH8065801620803 - Intel BGA SOCKET INTEL CELERON 3765U 1.90GHZ T

Intel Celeron 3765U. Processor family: Intel® Celeron®, Processor socket: BGA 1168, Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 16 GB, Memory types supported by processor: DDR3L-SDRAM, LPDDR3-SDRAM. On-board graphics card model: Intel® HD Graphics, On-board graphics card outputs supported: DisplayPort, HDMI, Embedded DisplayPort (eDP), On-board graphics card base frequency: 300 MHz. Market segment: Mobile, Use conditions: Embedded Broad Market Commercial Temp, Industrial Commercial Temp, PC/Client/Tablet, PCI Express configurations: 4x1, 2x4. Package dimensions (WxDxH): 1.57 x 0.945 x 0.0512" (40 x 24 x 1.3 mm), Processor package size: 40mm x 24mm x 1.3mm



Specification:



Processor
Processor base frequency	2.2 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Skylake
Thermal Design Power (TDP)	100 W
Processor cache	22 MB
Processor ARK ID	136441
Processor model	D-2187NT
Processor threads	32
Processor operating modes	64-bit
Processor boost frequency	3 GHz
Stepping	M1
Bus type	UPI
Component for	Server/workstation
Processor lithography	14 nm
Processor family	Intel® Xeon® D
Processor cores	16
Box	No
Processor socket	FCBGA2518
Processor code	SR3ZQ
Processor series	Intel Xeon D-2100 series
Memory
Maximum internal memory supported by processor	512 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Supported memory types	DDR4-SDRAM
Memory channels	Quad-channel
ECC	Yes
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	100 W
Technical details
Intel TSX-NI	Yes
Intel® Secure Key	Yes
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Enhanced Intel SpeedStep Technology	Yes
PCI Express slots version	3.0
Supported instruction sets	AVX 2.0, AVX-512
Scalability	1S
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Embedded options available	Yes
CPU configuration (max)	1
Processor code	SR3ZQ
Product type	System on Chip
Processor cache	22528 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	100 W
Supported memory types	DDR4-SDRAM
Status	Launched
Processor series	Intel Xeon D-2100 series
Market segment	Server
Launch date	Q1'18
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Maximum memory	512 GB
Intel TSX-NI version	1.00
Processor brand name	Intel Xeon
Last change	63903513
Product family	Intel Xeon Processors
Memory speed (max)	2400 MHz
Intel® Volume Management Device (VMD) version	1.00
AVX-512 Fused Multiply-Add (FMA) units	1
Features
Maximum number of PCI Express lanes	32
Thermal Design Power (TDP)	100 W
Processor ARK ID	136441
Thermal Monitoring Technologies	Yes
Idle States	Yes
Execute Disable Bit	Yes
PCI Express slots version	3.0
Supported instruction sets	AVX 2.0, AVX-512
Scalability	1S
Embedded options available	Yes
CPU configuration (max)	1
Processor code	SR3ZQ
Market segment	Server
Harmonized System (HS) code	8542310001
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Software Guard Extensions (Intel SGX)	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	Yes
Intel Turbo Boost Max Technology 3.0	No
Intel QuickAssist Technology	No
Intel® Memory Protection Extensions (Intel® MPX)	Yes
Intel® Device Protection Technology (Intel® DPT) with Boot Guard	Yes
Intel® Optane™ Memory Ready	No
Intel® OS Guard	Yes
Intel TSX-NI	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Intel Trusted Execution Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Enhanced Halt State	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Secure Key Technology version	1.00
Intel TSX-NI version	1.00
AVX-512 Fused Multiply-Add (FMA) units	1
Intel® Boot Guard	Yes
Intel® Volume Management Device (VMD)	Yes
Intel® Transactional Synchronization Extensions	Yes
Logistics data
Harmonized System (HS) code	8542310001
Other features
Maximum internal memory	512 GB
Maximum internal memory	524288 MB
CPU configuration (max)	1
Processor code	SR3ZQ
