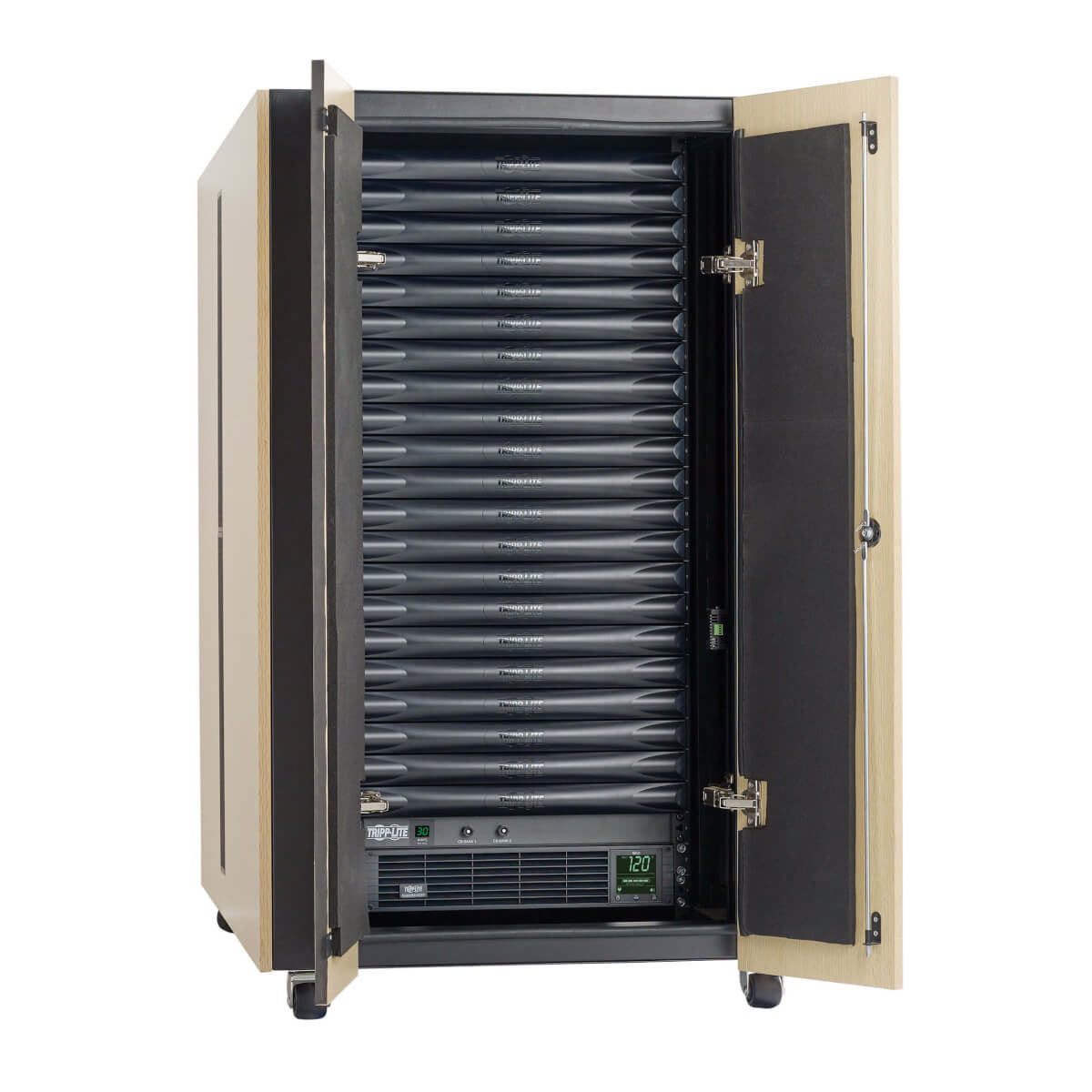

MDA1F15UPX00001 - Tripp Lite EDGEREADY MICRO DATA CENTER-15U, QUIET, 1.5 KVA UPS, NETWORK MANAGEMENT AND PDU,

Ship in Days, Not Weeks Tripp Lite’s EdgeReady™ micro data centers ship three business days after order receipt, assembled and tested. 40 base configurations are available for immediate order, or Tripp Lite’s solutions team can customize every aspect of any base configuration to match your specific application. Customized solutions ship in as little as five business days. Protect Edge Computing Convenient and cost-effective EdgeReady™ micro data centers protect edge computing servers, storage and network hardware in locations where dedicated IT space is unavailable. Sites like branch offices, banks, retail locations, cell towers and factories often have little or no access to on-site IT staff, but they still require exceptional uptime for edge computing. Micro data centers require minimal space and support, yet provide availability comparable to a traditional data center. Integrate Key Components Base configurations combine a rack enclosure, UPS system, network management card, environmental/security sensor, power distribution unit (PDU), downloadable network management software, passive cooling and optional active cooling. Save Time and Reduce Costs Preconfigured IT infrastructure accelerates and standardizes installations for quick, easy, repeatable deployments and maintenance. Experienced solution experts design, validate, assemble and test solutions in a controlled environment to simplify orders, prevent configuration errors and reduce field costs. Reinforced shock pallets and torqued fittings stabilize shipment and support re-shipment from an intermediary configuration site. Target Specific Applications Tripp Lite offers 40 base configurations, and you can customize any model for your application. Options include active cooling, extended runtime, KVM switches, console servers, added security, airflow management, cable managers, power cords, network cables and patch panels. You can also upgrade the base PDU, rack or UPS. Power Critical Systems A SmartPro® UPS system provides automatic voltage regulation (AVR), surge/noise protection, expandable battery backup and sine wave output to prevent damage, downtime and data loss. Included battery capacity outlasts most power problems, and optional battery packs increase runtime. A metered PDU plugs into the UPS system to provide numerous outlets and digital current metering. An optional switched PDU adds remote current monitoring, threshold notifications and outlet control. Manage from Any Location A network management card provides monitoring, control and alerts via SNMP, Web, SSH or telnet. An environmental sensor monitors temperature, humidity and digital inputs. Free PowerAlert® Network Management System manages up to 250 units, or you can use your SNMP-compatible software of choice. Additional options include network-accessible KVM switches and console servers with fail-safe remote access. Secure Equipment and Data A PCI-compliant steel cabinet with EIA-standard mounting rails secures rack-mounted IT equipment. Doors and side panels lock to prevent unauthorized access, and an optional door-monitoring kit enables remote intrusion detection. Keep Equipment Cool Optional close-coupled air conditioning units cool efficiently and operate at remote sites without user intervention. A built-in evaporator prevents condensation accumulation, units restart automatically after power failures and all models support network management. Benefit from Industry Expertise Combining several field-proven product lines, EdgeReady™ micro data centers leverage Tripp Lite’s unique manufacturing efficiencies to provide a strong balance of features, quality and value. They are designed, validated, assembled and tested by the experienced team behind thousands of critical infrastructure solutions protecting the world’s largest companies. Receive Dependable Service This micro data center is backed by a 2-year limited warranty. An extended warranty is available. Any components with a warranty longer than 2 years will be covered for the duration of the longer warranty.



Specification:



Weight & dimensions
Package depth	34.1" (865.1 mm)
Package width	24.2" (614.7 mm)
Package height	46.1" (1169.9 mm)
Package weight	231 lbs (104.8 kg)
Width	23.6" (600.2 mm)
Depth	33.5" (850.9 mm)
Height	45.6" (1158.2 mm)
Weight	209 lbs (94.8 kg)
Maximum weight capacity	998.7 lbs (453 kg)
Packaging content
Manual	Yes
Features
Key lock	Yes
Rack capacity	24U
Castor wheels	Yes
Front door construction	Mesh
Cable management	Yes
Adjustable feet	Yes
Front door key lock	Yes
Type	Freestanding rack
Maximum weight capacity	998.7 lbs (453 kg)
Material	Steel
Product colour	Black
Power
AC input voltage	120 V
AC input frequency	60 Hz
Rated current	30 A
Power supply	2880 W
Packaging data
Manual	Yes
Package depth	34.1" (865.1 mm)
Package width	24.2" (614.7 mm)
Package height	46.1" (1169.9 mm)
Package weight	231 lbs (104.8 kg)
Technical details
Package width	24.2" (614.7 mm)
Package height	46.1" (1169.9 mm)
Type	Freestanding rack
Rated current	30 A
Power supply	2880 W
Sustainability certificates	RoHS
Rack capacity	24U
Colour
Product colour	Black
Material
Material	Steel
Logistics data
Products per master (outer) case	1 pc(s)
Country of origin	China
