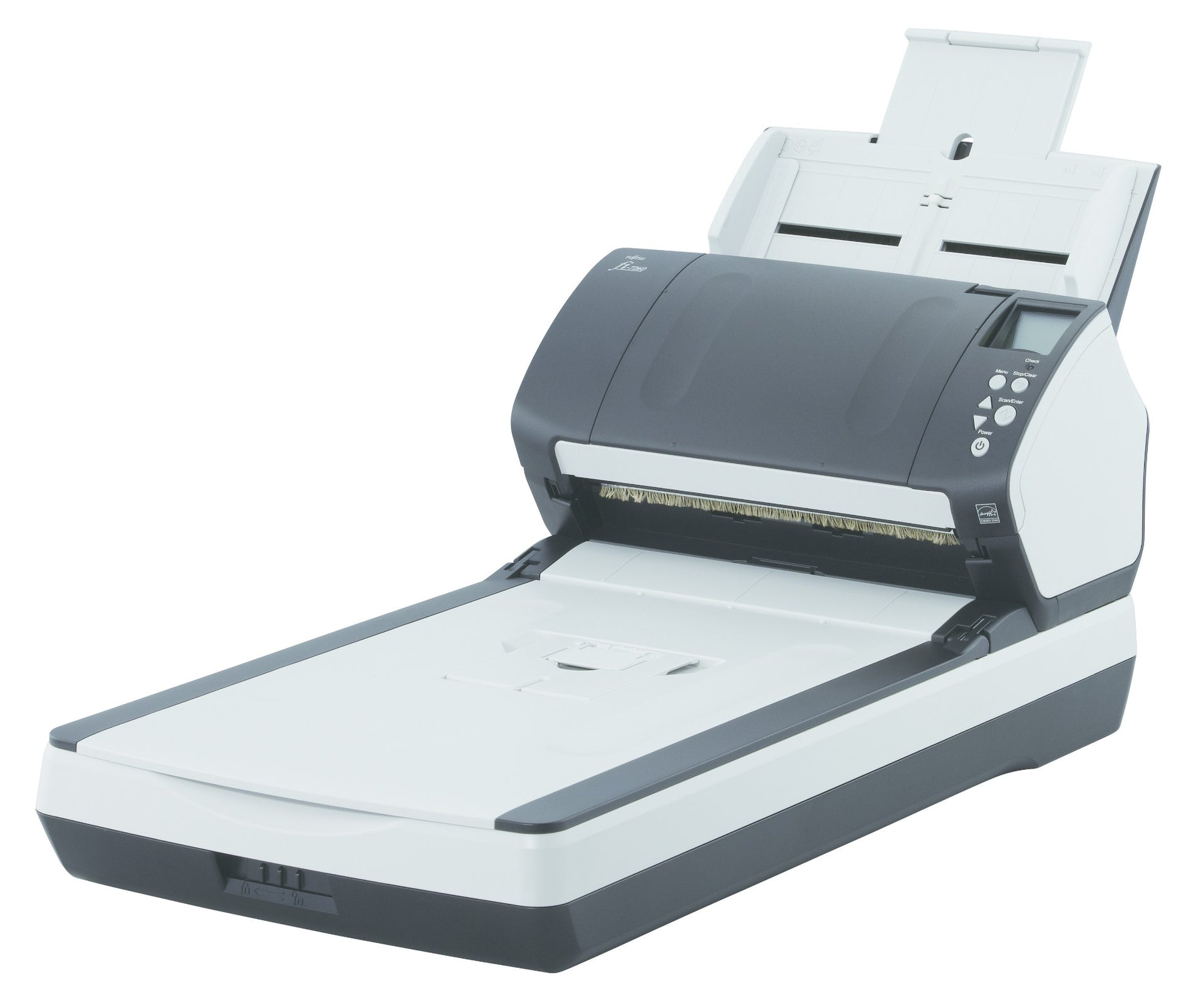

PA03670-B505 - Fujitsu FUJITSU FI-7280 COL DUPLX SHTFEDSCAN 80PPM USB

Efficient Smoothly scan batches of documents quickly and accurately into your business processes Reliable Innovative paper feeding and protection mechanisms ensure seamless processing Intelligent Minimise user interaction through automated hardware and software based image enhancement tools Intuitive PaperStream Capture and PaperStream IP for high performance batch scanning and image enhancement. Minimal effort with the utmost intelligence, efficiency and reliability The fast, compact and intuitive fi-7180, fi-7280, fi-7160 and fi-7260 desktop scanners from Fujitsu come well equipped to seamlessly process your documents into the digital world. - Increase productivity/collaboration/customer satisfaction - Meet legal and regulatory obligations and disaster recovery objectives - Save space and money - Address sustainability management These are the first desktop scanners in the World equipped with iSOP (Intelligent Sonic Paper Protection); which detects changes in the acoustic noise generated by paper and enhances the paper feeding process. Additionally they feature innovatively developed hardware and software to help augment your daily routines and boost your organisation’s efficiency. Flexible, out of the box document capture solution The fi-7180, fi-7280, fi-7160 and fi-7260 are designed to support document capture routines either for knowledge workers or for small workgroups. Easy to set up, use and maintain these robust scanners are built on years of solid reputation and come bundled with a user friendly and intuitive scanner driver PaperStream IP along with batch scanning automation and enhancement software PaperStream Capture. Hassle free monitoring and administering Integrated within the operating panel an LCD shows useful information such as current scanner settings, operating status and a paper counter. The fi-7180, fi-7280, fi-7160 and fi-7260 come with Scanner Central Admin tools that includes functions that system administrators can use to manage the installation and operation of multiple scanners, monitor operation status and update drivers and software from one location. This ability dramatically reduces the cost and work that goes into setting up, operating and maintaining many scanners in an organisation and also in expanding the scanner network to multiple locations. Intuitive feeding functions offer enhanced operation and continuous uninterrupted scanning Built on class leading and proven feeding capabilities from predecessor models ensures that the scanning of mixed batches at the desktop is a breeze and helps minimise the pre-processing time required. In addition the fi-7180, fi-7160, fi-7280 and fi-7260 scanners now come with a unique paper protection function that is based on acoustic sensors; iSOP (Intelligent Sonic Paper Protection), which reduces the risk of having documents damaged by sensing the audible noise of paper movements and stopping the feeding of sheets when an irregular noise is encountered. Should you be scanning mixed batches of differing thicknesses of documents then the “skew reducer” reduces the physical skew that documents encounter through the paper path ensuring that each document is captured with the utmost precision and simplicity. All four scanner models additionally make use of an ultrasonic sensor that accurately detects multifeed errors where two or more sheets are fed through the scanner at once plus intelligent multifeed function that is designed for documents that intentionally feature paper attachments of defined sizes or locations such as sticky notes or photos. The scanner can automatically recognise the location of the attachment and will then exclude that zone from triggering alert conditions. Integrated flatbed for even greater scanning potential The fi-7280 and fi-7260 models feature an ultra fast built-in flatbed module that enables the scanning of diverse documents types such as those that may be bound, stapled or delicate. Fujitsu developed best in class scanner driver and image capturing / processing software. PaperStream IP – high quality image enhancement PaperStream IP is the new scanner driver for the fi-7180, fi-7280, fi-7160 and fi-7260 scanners. In addition to being fully compliant with the industry standard TWAIN and ISIS interface, PaperStream IP incorporates as standard, highly sophisticated image processing which automatically applies features such as noise removal , background pattern removal and character augmentation to produce exceptionally clear, high quality images that are suitable for direct import into the users work flow . PaperStream IP has an intuitive, easy to use interface which can be switched between Administrator or User mode to simplify the scanning process and reduce user error. Additionally PaperStream IP also introduces a new Assisted Scanning mode, which allows the user to visually select the best quality image from a range of images of the page, rather than have to manually fine tune the scanning parameters one by one. PaperStream Capture – enhanced batch capture PaperStream Capture is an easy to use capture tool which allows users to easily create batch scanning profiles which encapsulate all of the settings and configuration required to control the scanning process from scan to the release of the image to the users normal work flow. Once created batch profiles can be run by a single click or can be linked to scanner front panel buttons to streamline the whole capture process.



Specification:



Scanning
Black/white scanning colour modes	Grayscale, Monochrome
Maximum scan size	8.5 x 14" (216 x 355.6 mm)
Optical scanning resolution	600 x 600 DPI
Colour scanning	Yes
Duplex scanning	Yes
Output colour depth	24 bit
Film scanning	No
ADF scan speed (b/w, A4)	80 ppm
ADF scan speed (colour, A4)	80 ppm
Flatbed scan speed (b/w, A4)	1.7 sec/page
Duplex ADF scan speed (b/w, A4)	160 ipm
Duplex ADF scan speed (colour, A4)	160 ipm
Sensor type	CCD
Light source	White LED (3x)
Daily duty cycle (max)	6000 pages
Design
Built-in display	Yes
Scanner type	Flatbed & ADF scanner
Display	LCD
Product colour	Black, White
Performance
Sensor type	CCD
Light source	White LED (3x)
Daily duty cycle (max)	6000 pages
Scan drivers	ISIS, TWAIN
Input capacity
Auto document feeder (ADF) input capacity	80 sheets
Paper handling
Maximum ISO A-series paper size	A4
Maximum scan area (ADF)	8.5 x 14" (216 x 355.6 mm)
Minimum scan area (ADF)	2 x 2.13" (50.8 x 54 mm)
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
Multi feed detection	Yes
ISO A-series sizes (A0...A9)	A4
Ports & interfaces
Standard interfaces	USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1)
USB port	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
Software
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Ubuntu 14.04, Ubuntu 16.04
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64
Bundled software	PaperStream IP PaperStream Capture Software Operation Panel Error Recovery Guide ScanSnap Manager Scan to Microsoft SharePoint ABBYY FineReader Tool Scanner Central Admin
Scan drivers	ISIS, TWAIN
Power
Power consumption (typical)	43 W
Power consumption (standby)	1.8 W
Power consumption (off)	0.35 W
Input voltage	100-240 V
Power supply type	AC
Display
Display	LCD
Media formats
ISO A-series sizes (A0...A9)	A4
Technical details
Black/white scanning colour modes	Grayscale, Monochrome
Scanner type	Flatbed & ADF scanner
Product colour	Black, White
Sustainability certificates	RoHS, ENERGY STAR
System requirements
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Ubuntu 14.04, Ubuntu 16.04
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Weight & dimensions
Width	11.8" (300 mm)
Depth	22.7" (577 mm)
Height	9.21" (234 mm)
Weight	19.4 lbs (8.8 kg)
Packaging content
Bundled software	PaperStream IP PaperStream Capture Software Operation Panel Error Recovery Guide ScanSnap Manager Scan to Microsoft SharePoint ABBYY FineReader Tool Scanner Central Admin
Other features
Scanner type	Flatbed & ADF scanner
